System Structure
This chapter describes the server’s physical external and internal structure. A view of the
mainboard layout is also provided.
External Structure
Front Panel with Bezel
In the illustration below, the server is shown with both the front bezel attached (items labeled
1 through 8), and removed (items labeled 9 through 13).

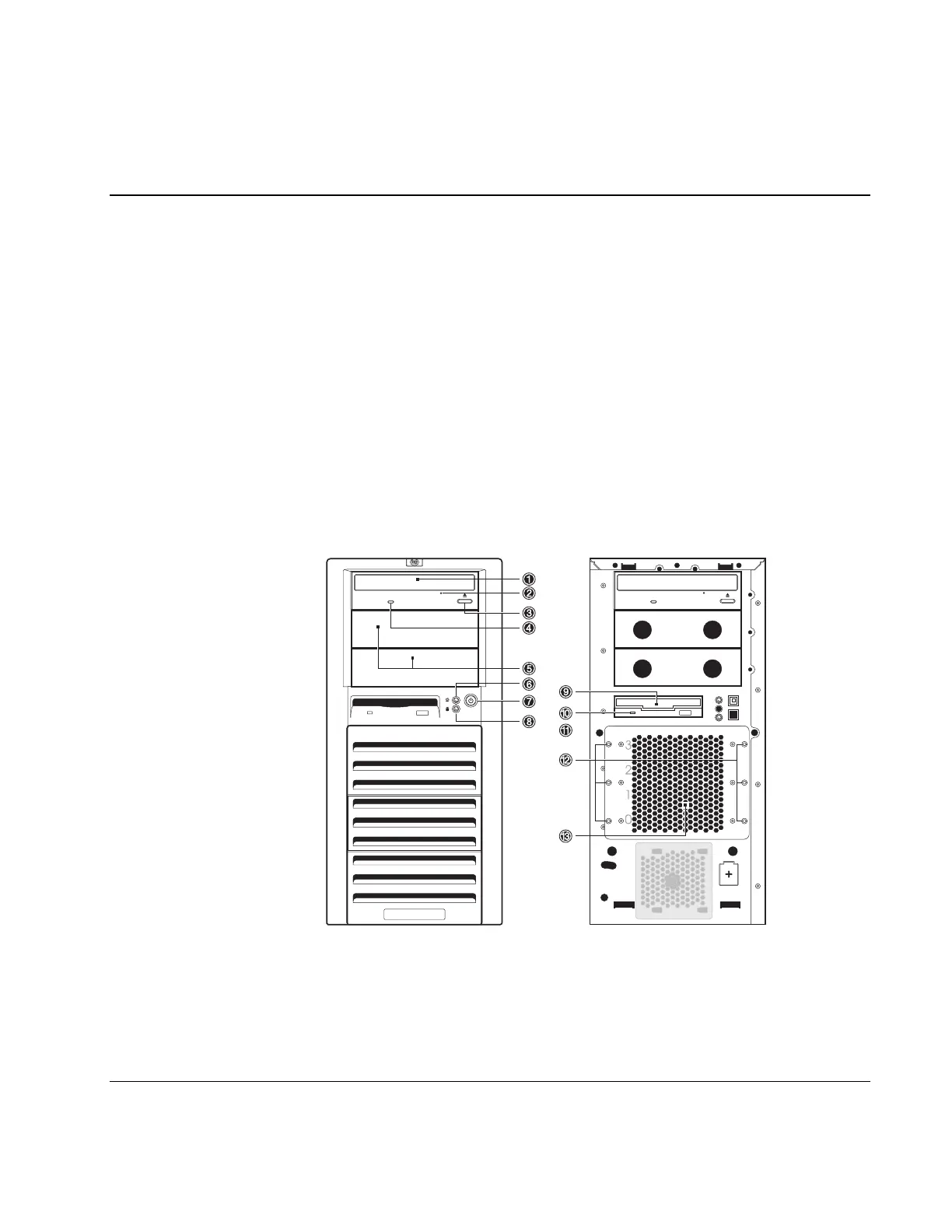

Figure 2-1: Front panel components
Refer to Table 2-1 on the next page for a list of front panel components.
