HP ProLiant ML110

System Configuration
c. Gently slide the PSU out of the chassis.

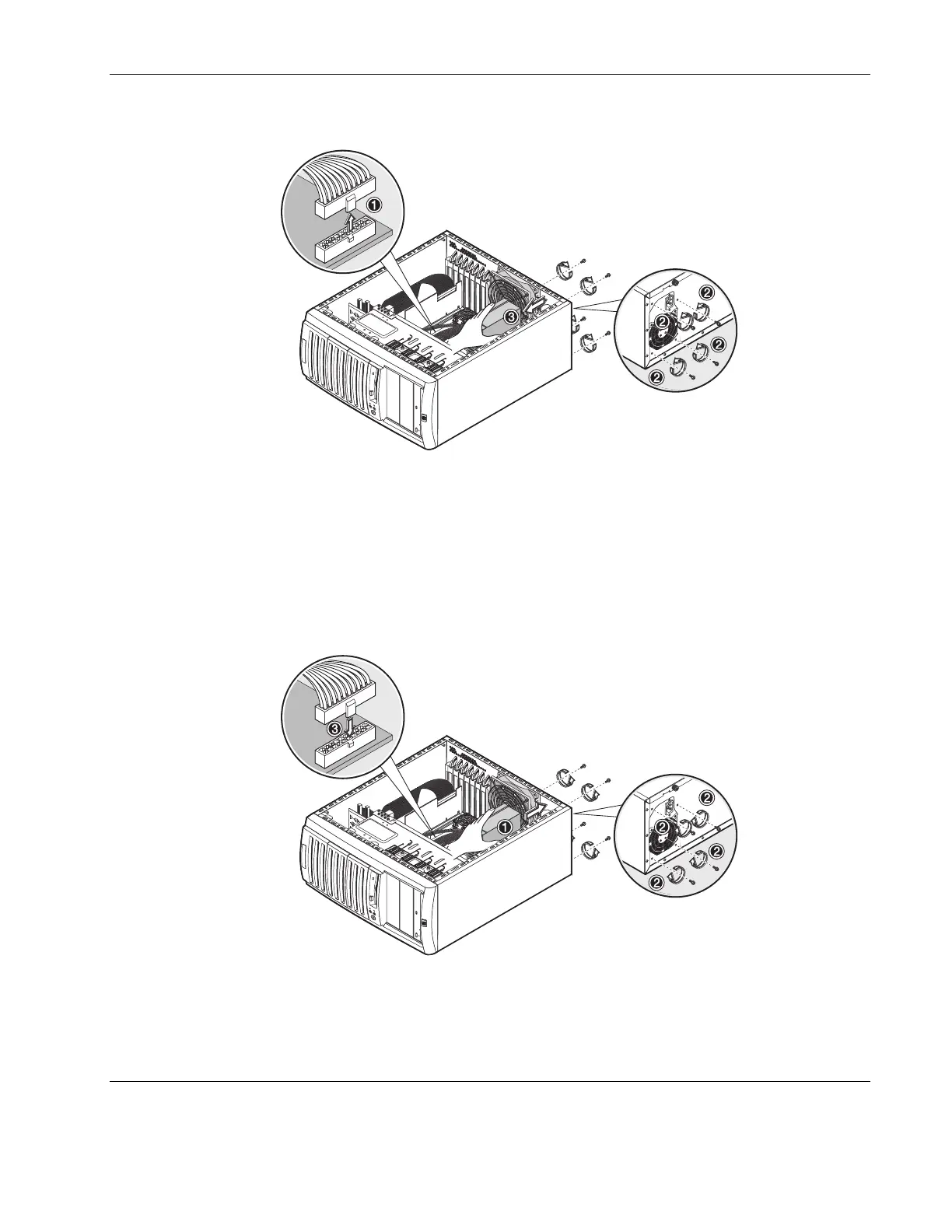

Figure 4-25: Removing the PSU
5. Install a new PSU:
a. Align the new PSU to the power supply bay inside the chassis.
b. Secure the PSU in place using the four screws you removed earlier.
c. Connect the PSU cables to their mainboard connectors (CN1 and CN2).
Connect the power cables of all installed drives to the PSU.
Figure 4-26: Installing a PSU
6. Observe the post-installation procedures.
HP ProLiant ML110 Server Operations and Maintenance Guide 4-25
