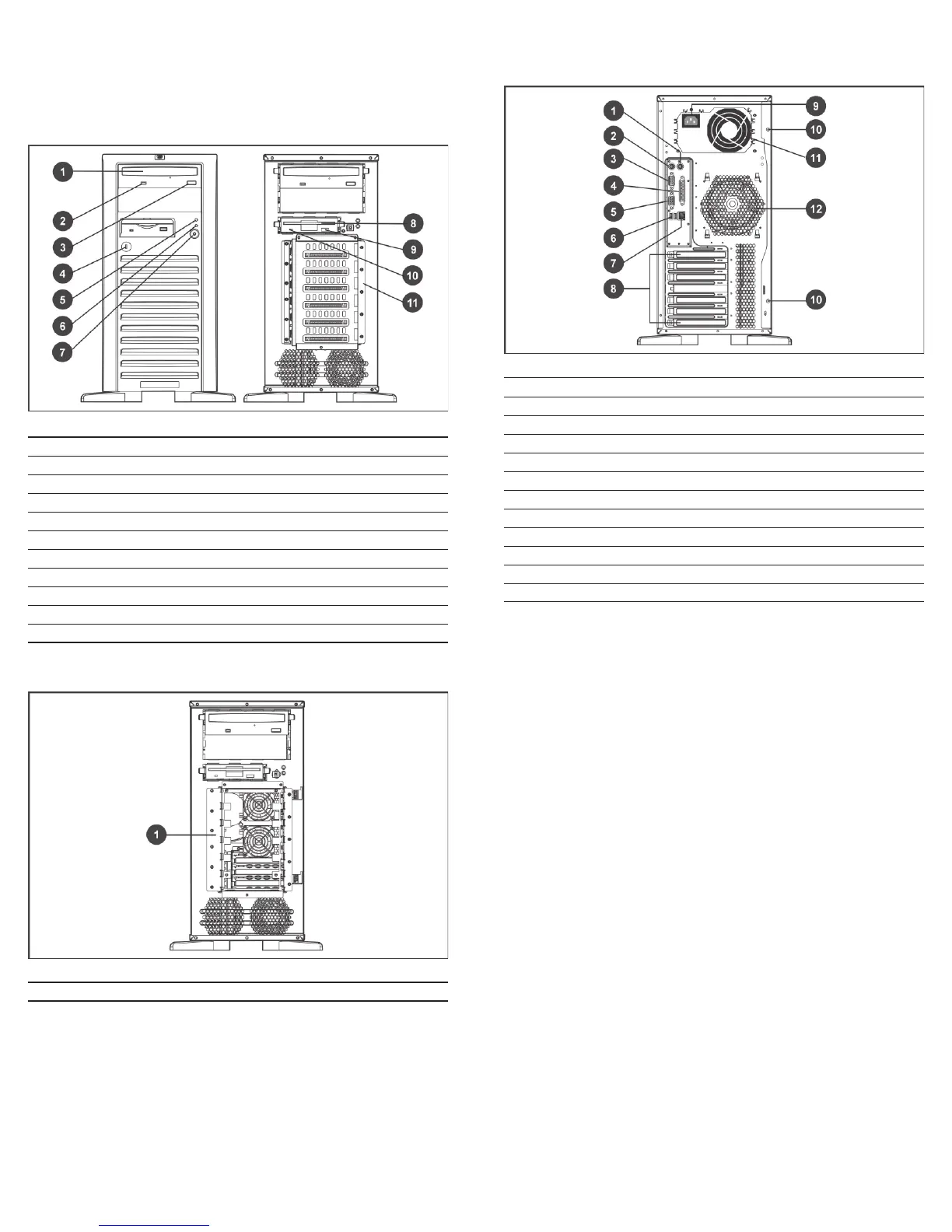

Component Identification
Front Panel Components
Hot-Plug Model
Item Description
1 CD-ROM drive
2 CD-ROM drive activity indicator
3 CD-ROM drive eject button
4 Bezel lock
5 Drive activity indicator
6 Power indicator
7 Power button
8 Flexible diskette drive (FDD)
9 FDD eject button
10 FDD activity indicator
11 Hot-plug hard disk drive (HDD) cage
Non-Hot-Plug Model
Item Description
1 Non-hot-plug hard disk drive (HDD) cage
Rear Panel Components
Item Description
1 PS/2 mouse port (green)
2 PS/2 keyboard port (purple)
3 Serial port (teal)
4 Parallel port (burgundy)
5 Monitor port (blue)
6 USB 2.0 ports (black)
7 10/100/1000 LAN port (RJ-45)
8 I/O slot covers
9 Power connector
10 Thumbscrews for detachable access panel
11 Power supply unit fan
12 System fan
