Removal and replacement procedures 32
9.

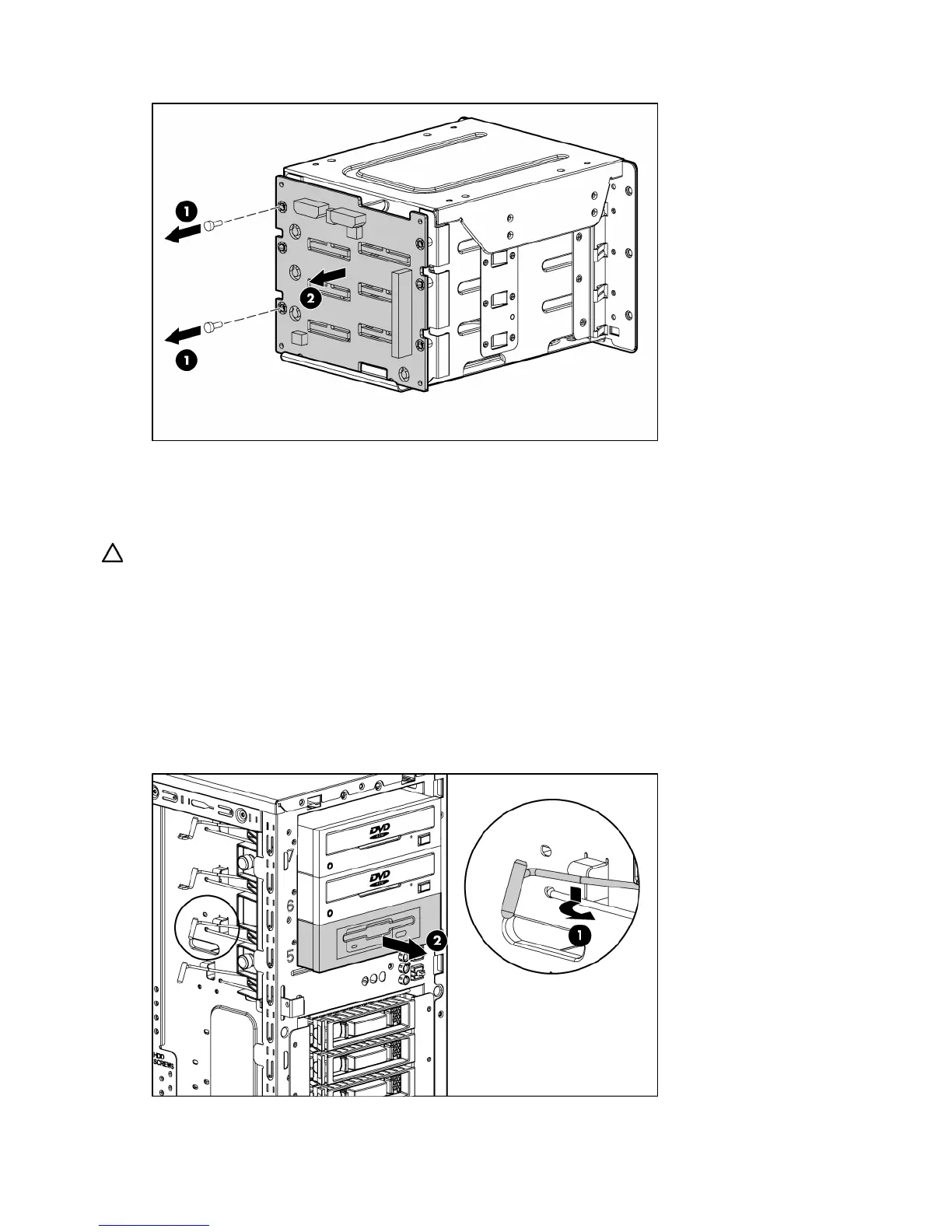

Remove the SAS or SATA backplane.
To replace the component, reverse the removal procedure.
Diskette drive
CAUTION: To prevent improper cooling and thermal damage, do not operate the server unless all bays
are populated with either a component or a blank.
To remove the component:
1. Power down the server (on page 25).
2. Remove the server from the rack, if necessary ("Remove the server from the rack" on page 25).
3. Remove the bezel ("Unlock the tower bezel" on page 26).
4. Remove the access panel ("Access panel" on page 26).
5. Disconnect the power and data cables.
6. Remove the diskette drive.
