HP ProLiant ML330 Generation 3

Component Identification

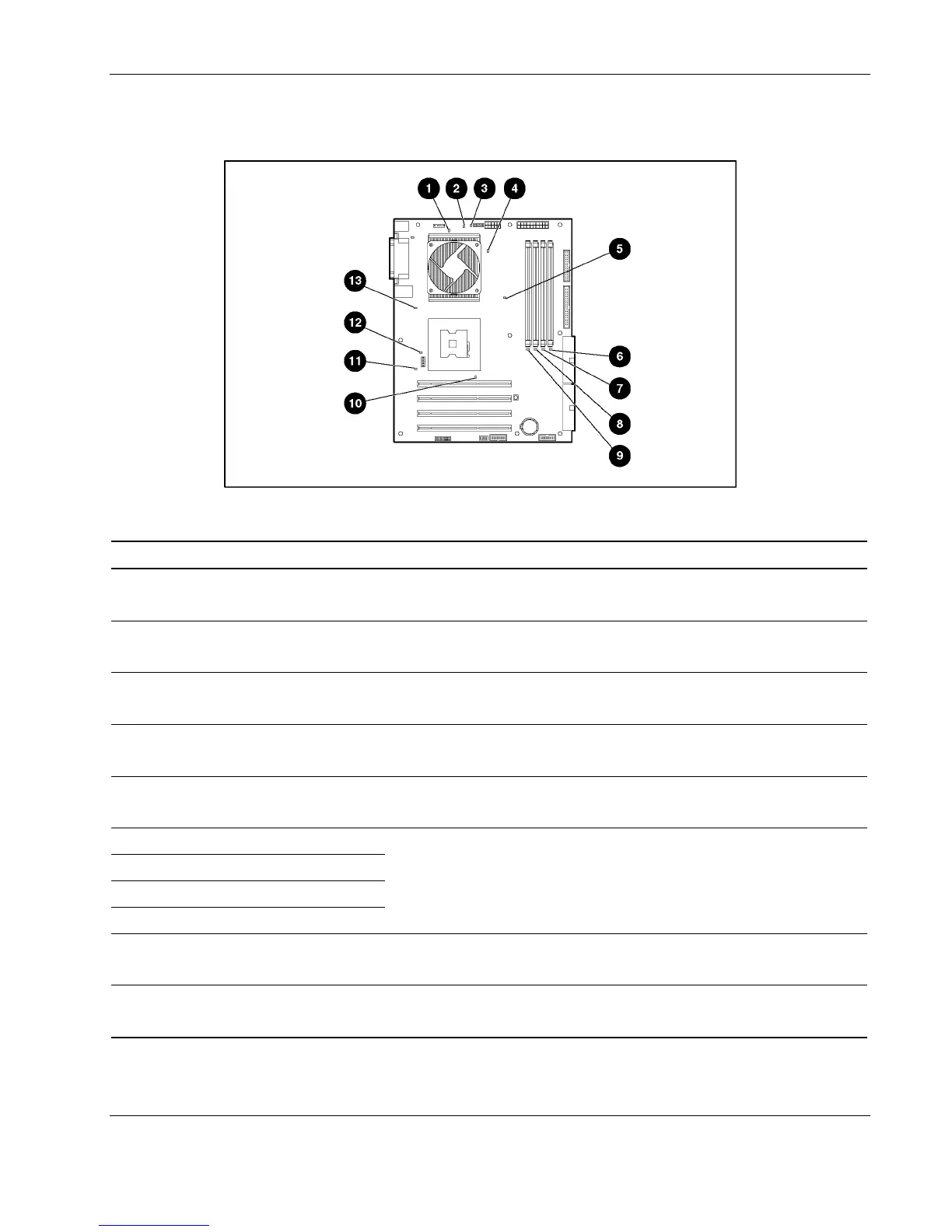

System Board LEDs
Table 4-8: System Board LEDs
Item LED Description Status
1 System fan failure Amber = The system fan has failed or is not installed.
Off = The system fan is functioning.
2 Processor 1 failure Amber = Processor 1 has failed or is not installed.
Off = Processor 1 is functioning.
3 Processor fan 1 failure Amber = Processor fan 1 has failed or is not installed.
Off = Processor fan 1 is functioning.
4 Processor power connector
not installed
Amber = Power connector is not installed.
Off = Power connector is installed.
5 Integrated PPM failure Amber = The PPM has failed.
Off = The PPM is functioning.
6 DIMM 1 failure
7 DIMM 2 failure
8 DIMM 3 failure
9 DIMM 4 failure
Amber = The DIMM is failed.
Off = The DIMM is functioning.
10 Processor 2 failure Amber = Processor 2 has failed or is missing.
Off = Processor 2 is functioning.
11 System overtemperature Amber = The temperature threshold has been exceeded.
Off = The temperature is normal.
continued
HP ProLiant ML330 Generation 3 Server Maintenance and Service Guide 4-9
