Removal and Replacement Procedures
Memory Module Guidelines
CAUTION: To prevent damage to equipment or loss of information, make sure that the server
is powered down, all cables are disconnected from the back of the server, and the power cord
is disconnected from the grounded (earthed) AC outlet before removing the access panel.
CAUTION: To prevent damage to the system when handling components, refer to the
HP ProLiant ML350 Generation 3 Server Setup and Installation Guide.
CAUTION: When handling a memory module, be careful not to touch any of the contacts.
Doing so may damage the module.
1
2
3
4

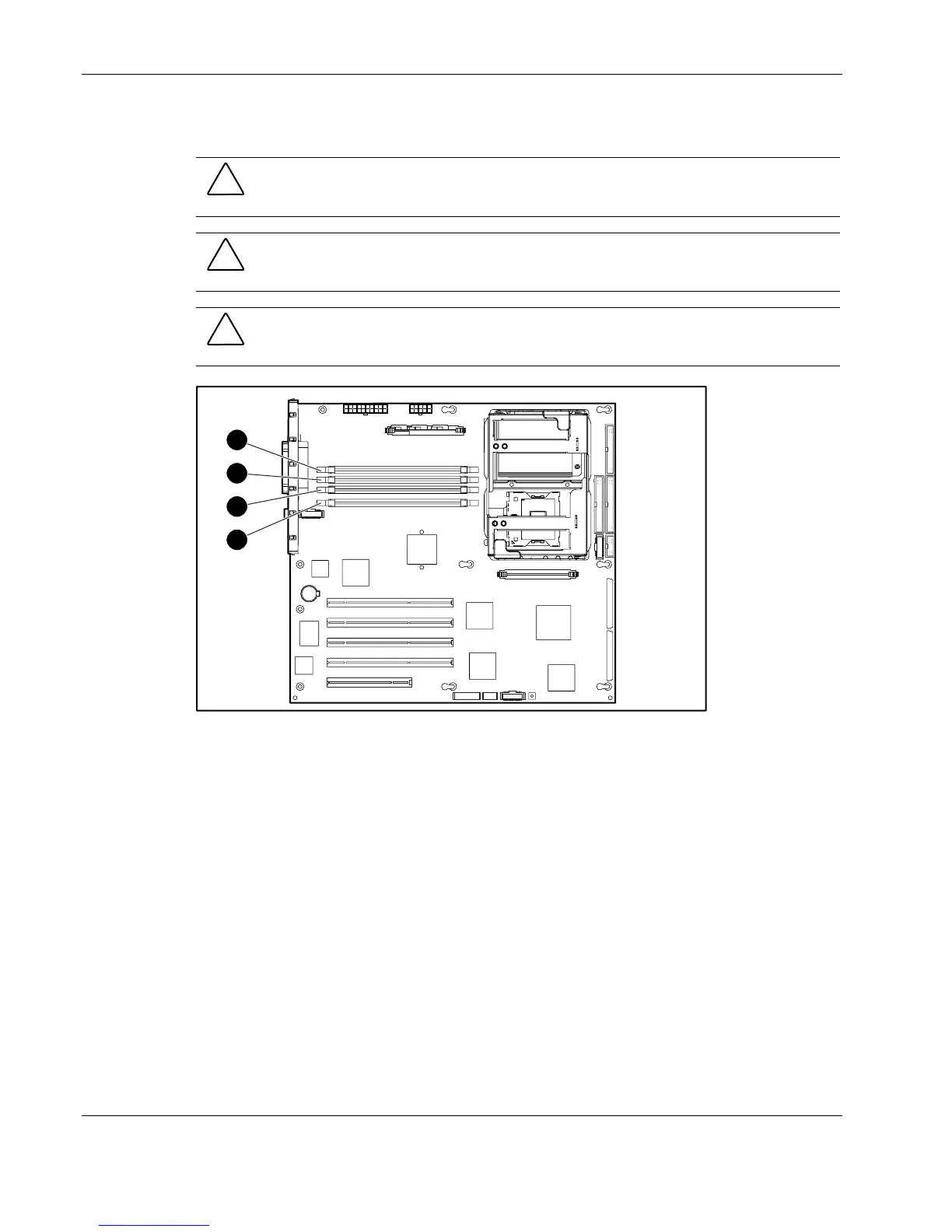

Figure 2-27: DDR SDRAM DIMM sockets location
The following guidelines must be followed when memory modules are being added or
replaced:
•
•
•
DIMMs must be industry-standard, 256-MB, 512-MB, 1-GB or 2-GB, 3-cm (1.2-inch),
184-pin PC2100, DDR ECC memory DIMMs. The DDR memory DIMMs must support
CAS Latency 2, CL=2 or greater. They must also contain the mandatory Joint Electronic
Device Engineering Council (JEDEC) Serial Presence Detect (SPD) information.
If two-way memory interleaving is desired, identical DIMMs must be installed in socket
pairs. DIMMs installed in Pair A (sockets 1 and 2), however do not need to be identical
to the DIMMs in pair B (sockets 3 and 4). If the two DIMMs within a pair are not
identical, the system will automatically run in non-interleaved mode.
DIMMs installed in the server must be registered DDR, 3.3-volts, 72-bits wide.
2-30 HP ProLiant ML350 Generation 3 Server Maintenance and Service Guide
