HP ProLiant ML350e - Page 67

Hardware options installation 67
5.
Remove the access panel (on page 25).
6. If installed, remove the PCI air baffle (on page 28).
7. Remove any installed full-length PCI cards.
8. Remove the system air baffle (on page 30).
9. Disconnect the fan cables and remove the fan cage (on page 31).

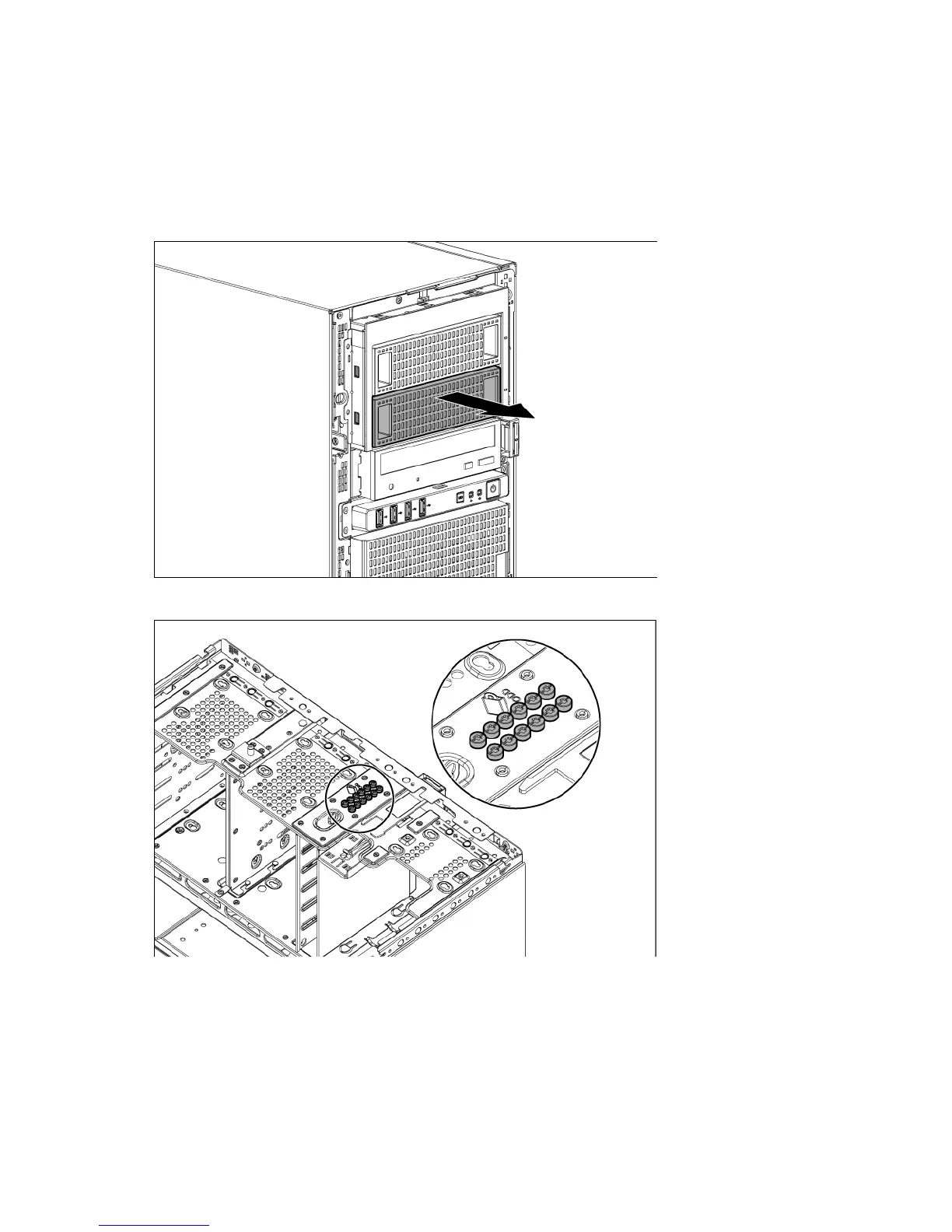

10. Remove the optical drive cage blank, and retain it for future use.
11. Locate the four guide screws for optical drive on the chassis.
