HP ProOne 400 G3 - Key Component Removal Procedures

Standard Operation Procedure
Tabulator： Issue Department：
Xin-Xin Chen NPSU-PPE
Auditor ：
Ethan Lai
Steps：
Document No. : Pyxis400 DISASS’Y SOP Station :
Operation Name : Ver. : Date :
Note: If finding anything uncommon, notice foreman or assistant at once.
Fixture list (Specification)
Qty.
Fixture list (Specification)
Qty.

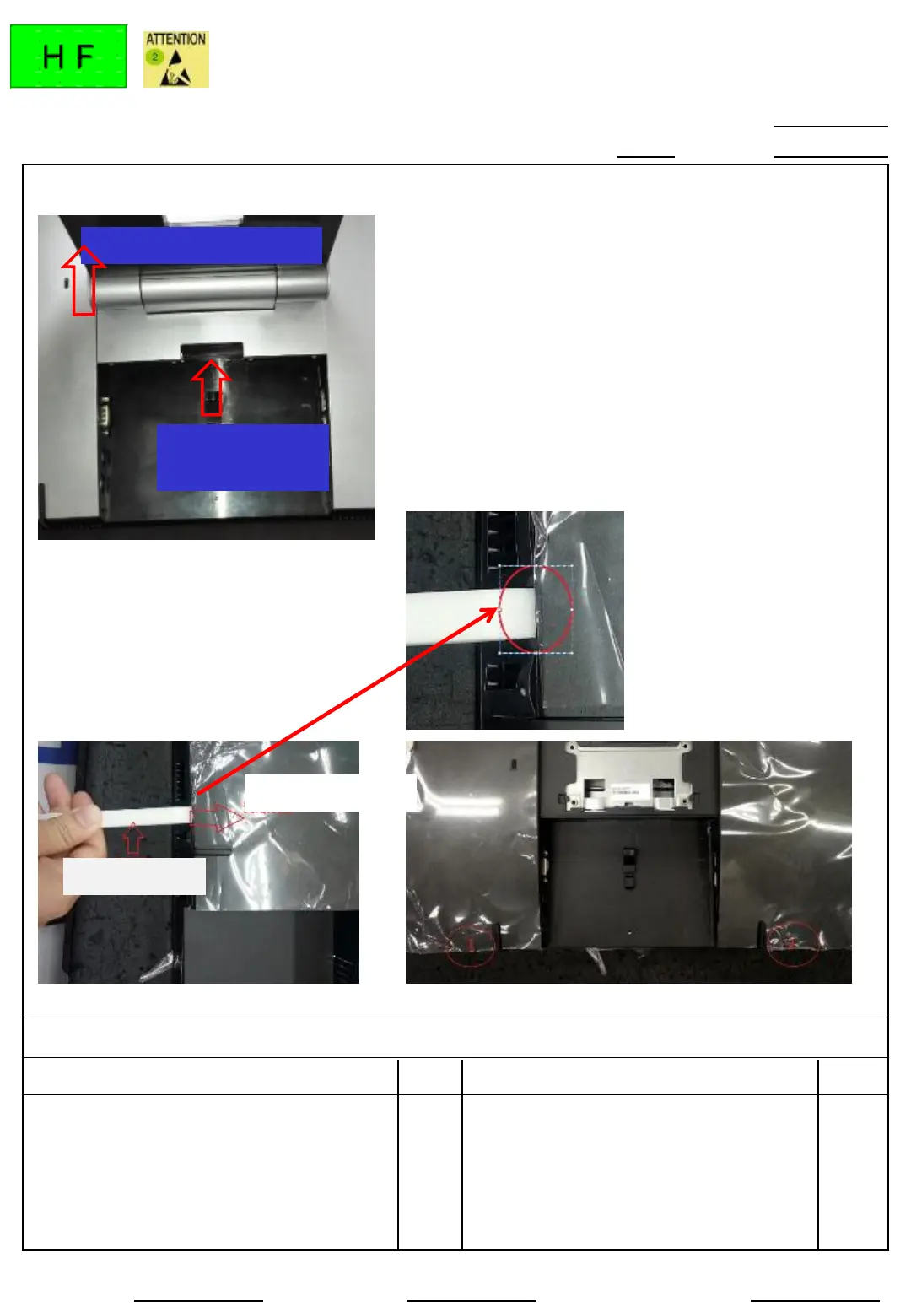

Remove Stand & pull open Rear Cover
1. Take out Stand and put into the material box
(Fig. 1).
 Follow the steps as Fig. 1, push the latch
upward, then pull up the hinge.
2. Pull open Rear Cover (Fig. 2, 3).
 Follow the steps as Fig. 2 & 3, use the stick
to pull open the region of gap for lever force
to unfix Rear Cover.
Glove Requirements: Half-fingered gloves
Fig. 1
Fig. 2
1(1/1)
2017/5/23
1.00
Plastic stick 1
Fig. 3
Step1: Push the
latch upward
Step2: Pull up the hinge
1
Plastic stick
Force direction
