HP ProOne 400 G3 - Page 5

Standard Operation Procedure
Tabulator： Issue Department：
Xin-Xin Chen NPSU-PPE
Auditor ：
Ethan Lai
Steps：
Document No. : Pyxis400 DISASS’Y SOP Station :
Operation Name : Ver. : Date :
Note: If finding anything uncommon, notice foreman or assistant at once.
Fixture list (Specification)
Qty.
Fixture list (Specification)
Qty.

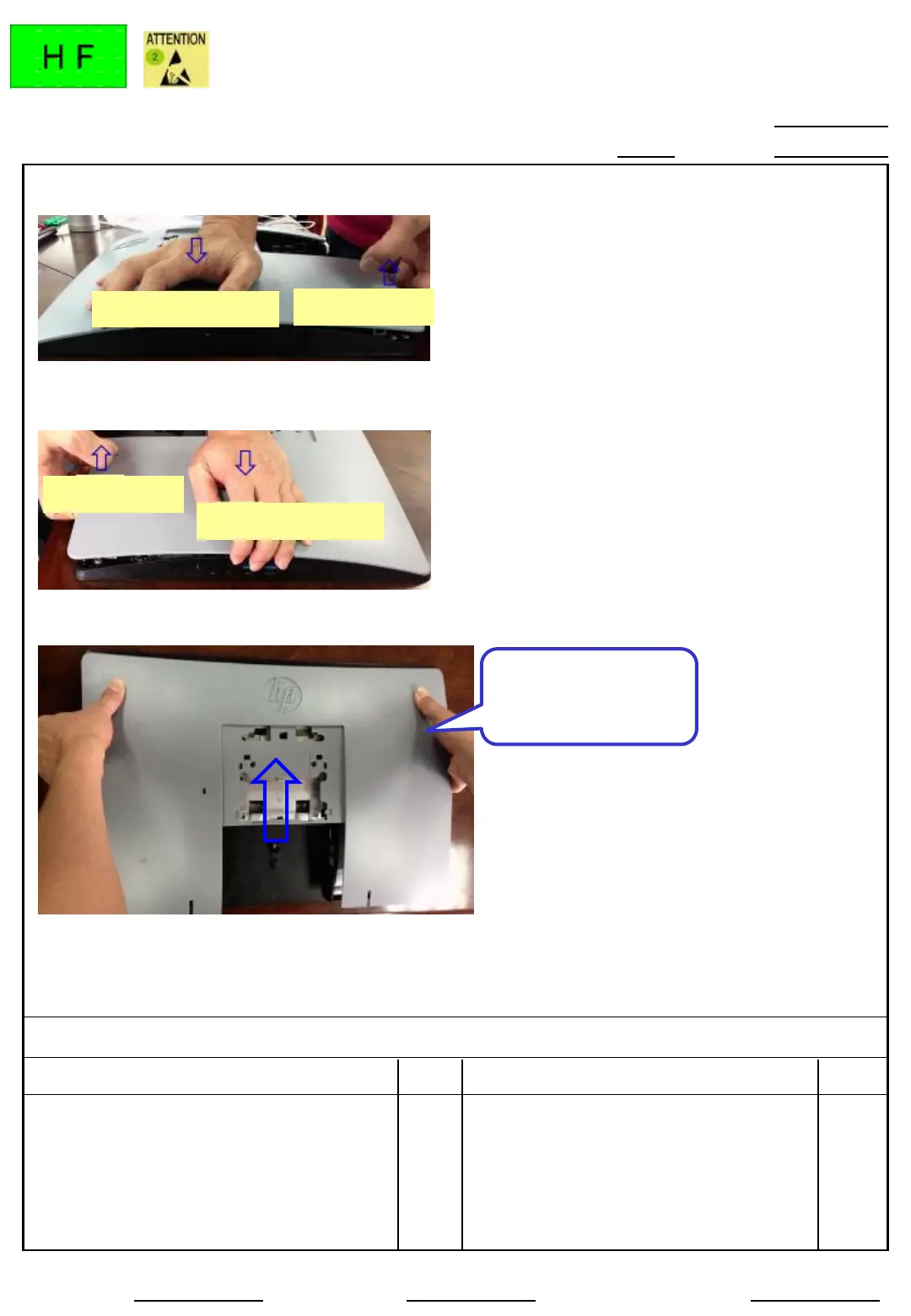

Take out Rear Cover
1. Take out Rear Cover (Fig. 1, 2, 3).
 Follow the steps as Fig. illustrated.
 Have one hand to hold the system, and the
other hand to pull the edge of Rear Cover for
release
2. Put Rear Cover into the material box.
Glove Requirements: Half-fingered gloves
Fig. 1
2(1/1)
2017/5/23
1.00
Fig. 3
Pull up the two
sides of Rear Cover,
then take out.
Press downward
Pull upward
Press downward
Pull upward
Fig. 2
