Standard Operation Procedure
Tabulator： Issue Department：
Xin-Xin Chen NPSU-PPE
Auditor ：
Ethan Lai
Steps：
Document No. : Pegasus600 DISASS’Y SOP Station :
Operation Name : Ver. : Date :
Note: If finding anything uncommon, notice foreman or assistant at once.
Fixture list (Specification)
Qty.
Fixture list (Specification)
Qty.

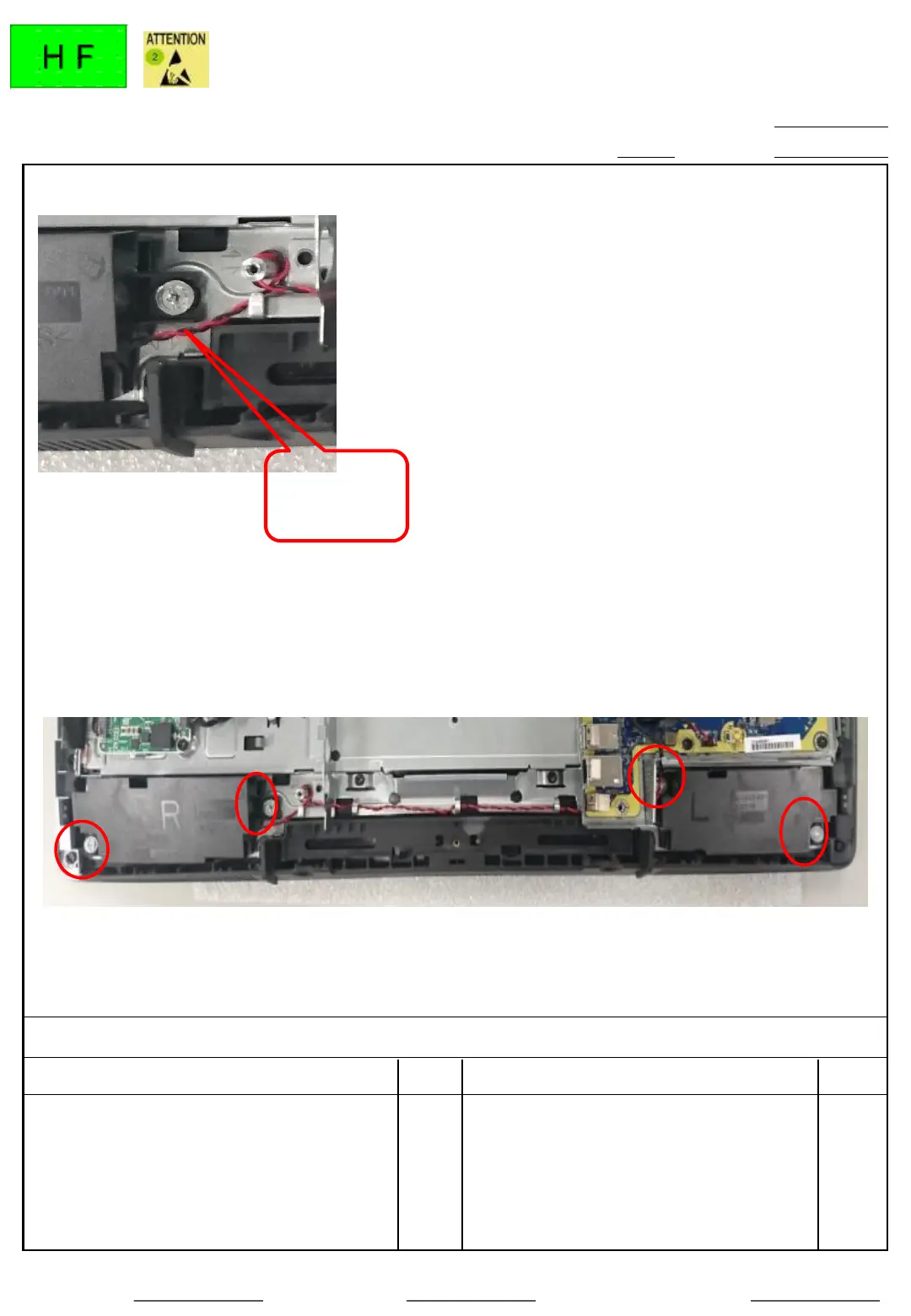

Take out Speaker
10(1/1)
2017/5/23
1.00
1. Unscrew (Torx Pin-Head × 4) all joints of
Speaker (Fig. 2).
Torsion: 4.0 ± 1.0 kgf.cm
Take the screwdriver vertically to the screw
holes.
2. Take out Speaker (Fig. 2).
Don’t lose the four rubber rings of Speaker.
No obvious defect in the surface.
First pull out the cable from the hook and
don't pull it using force (Fig. 1).
Glove Requirements: Half-finger gloves
Fig. 2
Electric Screwdriver (S-4000MS) 1
Bits Type: T15,φ=5mm,L=60mm 1
Fig. 1
3
4
2
1
Don’t pull
out on this
location
