HP ProOne 600 G3 Disassembly Instructions

Standard Operation Procedure
Tabulator： Issue Department：
Xin-Xin Chen NPSU-PPE
Auditor ：
Ethan Lai
Steps：
Document No. : Pegasus600 DISASS’Y SOP Station :
Operation Name : Ver. : Date :
Note: If finding anything uncommon, notice foreman or assistant at once.
Fixture list (Specification)
Qty.
Fixture list (Specification)
Qty.

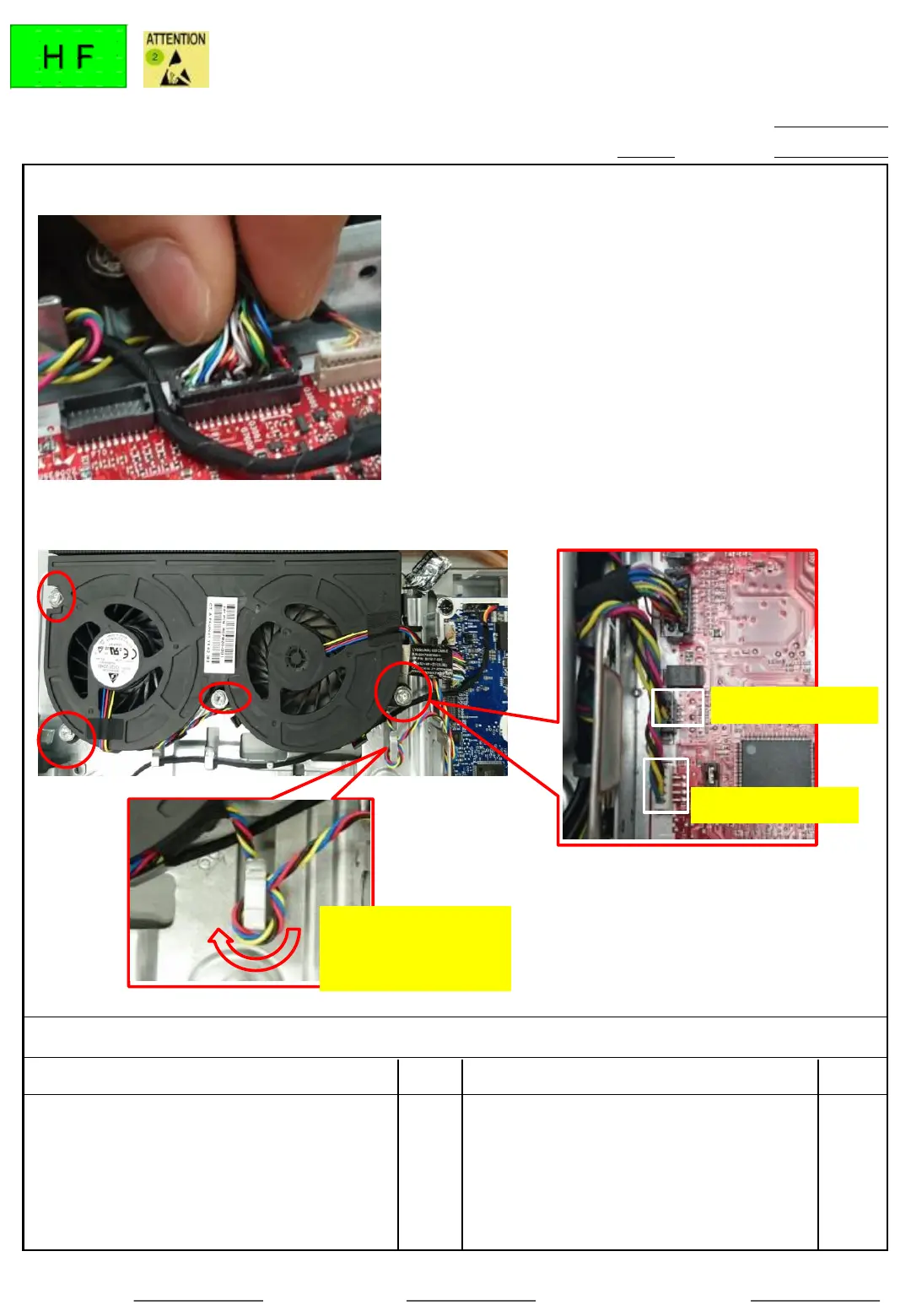

Take out FAN & disconnect LVDS cable
13(1/1)
2017/5/23
1.00
1. Disconnect FAN cable-1 & 2 and LVDS cable
from the connectors of M/B side (Fig. 2, 3).
 Pull out FAN cable from the hook carefully.
2. Unscrew (× 4) all joints to take out FAN
illustrated as Fig. 1.
 Torsion: 4.0 ± 0.5 kgf.cm
 Take the screwdriver vertically to the screw
holes.
Glove Requirements: Half-finger gloves
Fig. 1
Electric Screwdriver (S-4000MS) 1
Bits Type: T15,φ=5mm,L=60mm 1
Fig. 2
Pull out
counterclockwise
from the hooks
Pull black PIN1
Pull white PIN2
Fig. 2
