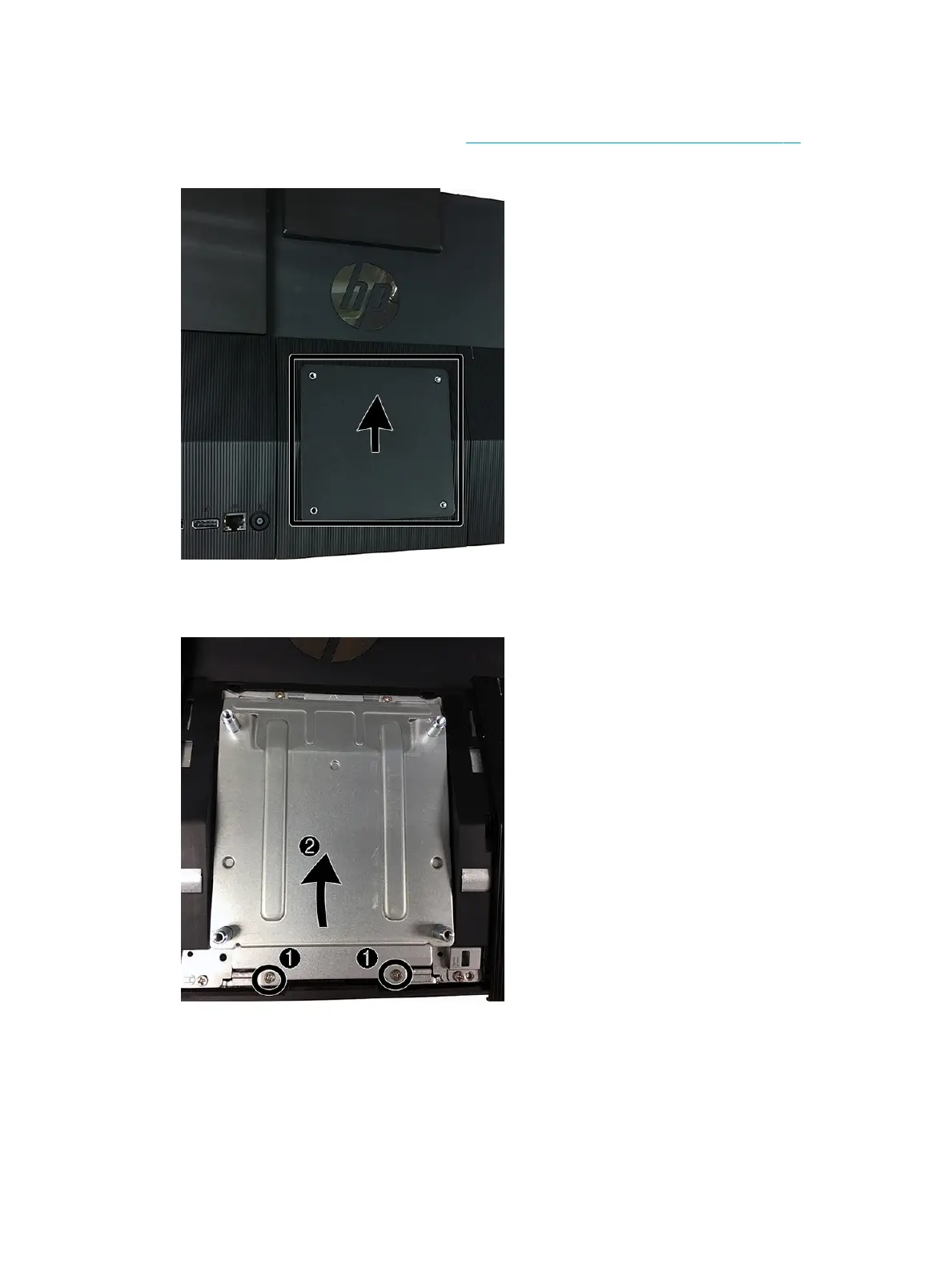

To remove the VESA bracket:
1. Prepare the computer for disassembly (see Preparing to disassemble the computer on page 19).
2. Remove the VESA cover from atop the bracket.
3. Remove the two screws (1) that secure the VESA bracket to the computer.
4. Lift the bottom of the bracket, and then remove the bracket (2).
To install a VESA bracket, reverse the removal procedures.
20 Chapter 4 Removal and Replacement Procedures
