Fan assembly
To remove the fan assembly:
1. Prepare the computer for disassembly (see Preparing to disassemble the computer on page 19).
2. Remove the stand (see Stand on page 19).
3. Remove the rear port cover (see Rear port cover on page 24).

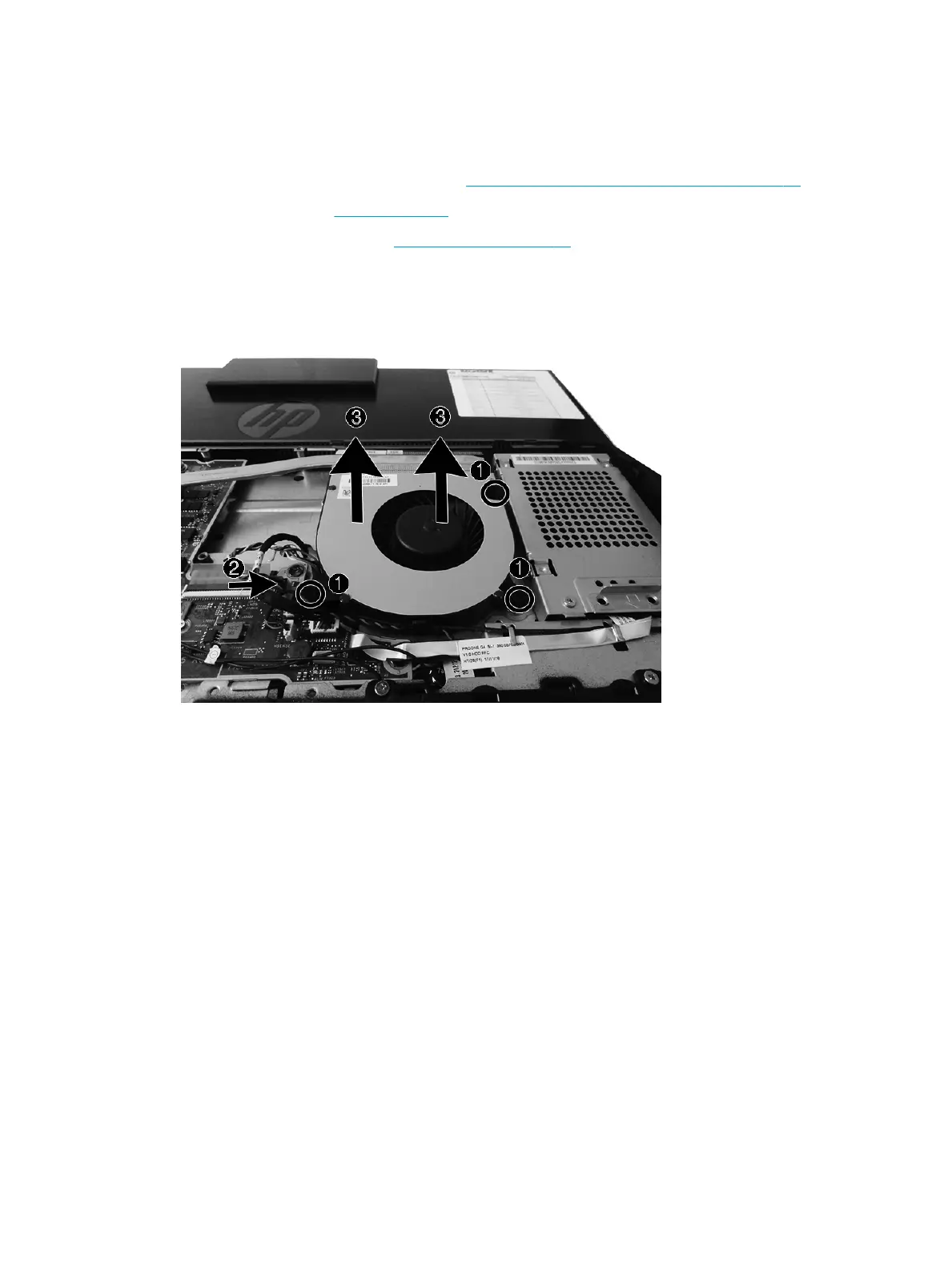

4. Remove the three Phillips screws that secure the fan to the computer (1).
5. Disconnect the fan cable from the system board (2).
6. Remove the fan from the computer (3).
To install the fan assembly, reverse the removal procedures.
36 Chapter 4 Removal and Replacement Procedures
