HP rp5800 Product End-Of-Life Disassembly Instructions

EL-MF877-00 Page 3
Template Revision B
PSG instructions for this template are available at EL-MF877-01

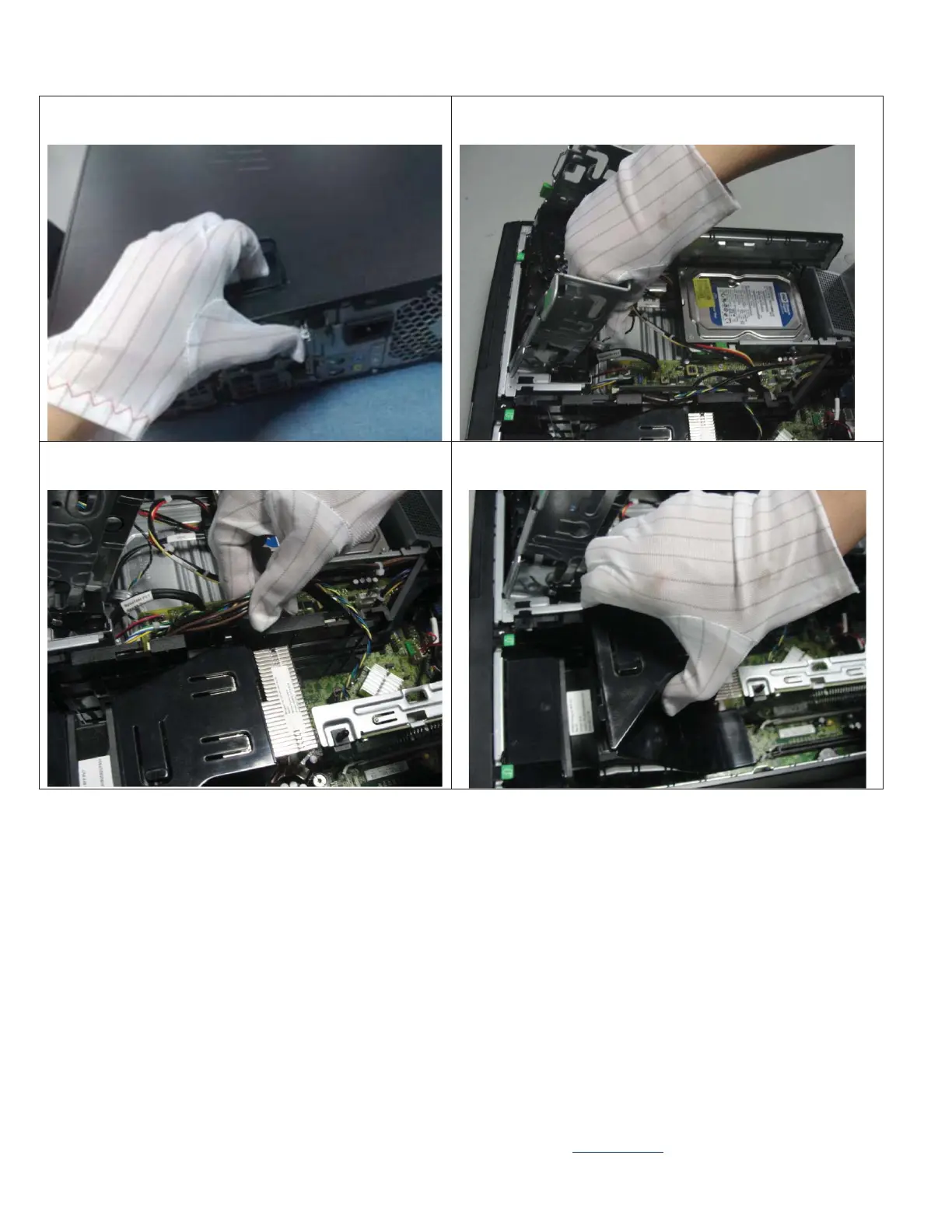

Figure 1 Remove the access panel
Figure 2 Rotate the HDD cage up
Figure 3 Disconnect the cables from fan duct
Figure 4 Remove fan duct from the board

HP rp5800 Specifications

General

Processor	Intel Core i3-2120 (3.3 GHz, 3 MB cache, 2 cores)
Memory	4 GB DDR3
Storage	500 GB SATA (7200 rpm)
Operating System	Windows 7 Professional (64-bit)
Ports	VGA, DisplayPort, serial, parallel, audio in/out, RJ-45
Power Supply	240W
