Server setup 37
WARNING: To reduce the risk of electric shock, fire, or
damage to the equipment, do not plug telephone or
telecommunications connectors into RJ-45 connectors.

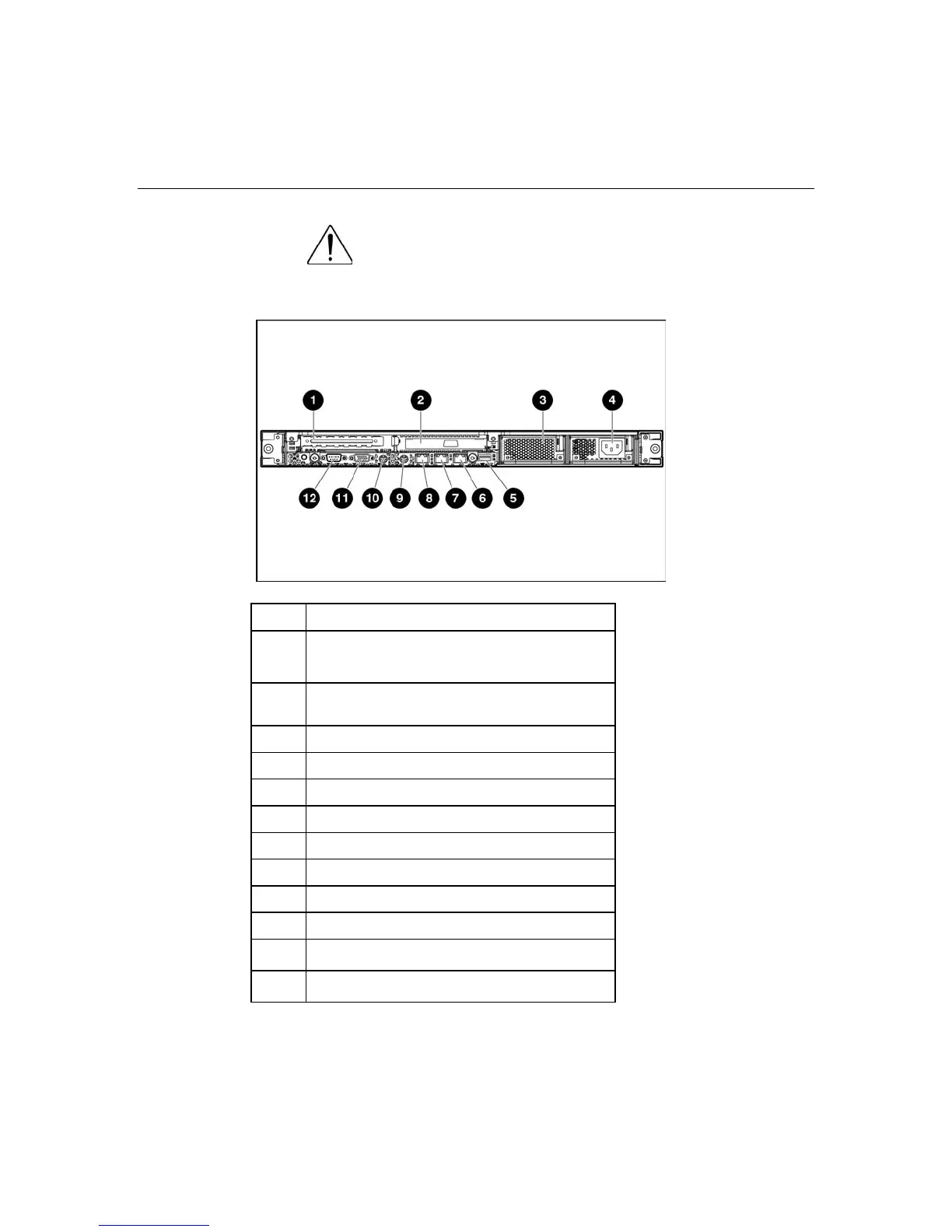

Item Description
1* PCI-X expansion slot 1, 64-bit/133-MHz 3.3V
(optional PCI Express slot 1, x8)
2* PCI-X expansion slot 2, 64-bit/133-MHz 3.3V
(optional PCI Express slot 2, x8)
3 Power supply bay 2
4 Power supply bay 1 (populated)
5 USB connector
6 10/100/1000 NIC 2
7 10/100/1000 NIC 1
8 iLO management port
9 Mouse connector
10 Keyboard connector
11 Video connector
12 Serial connector
