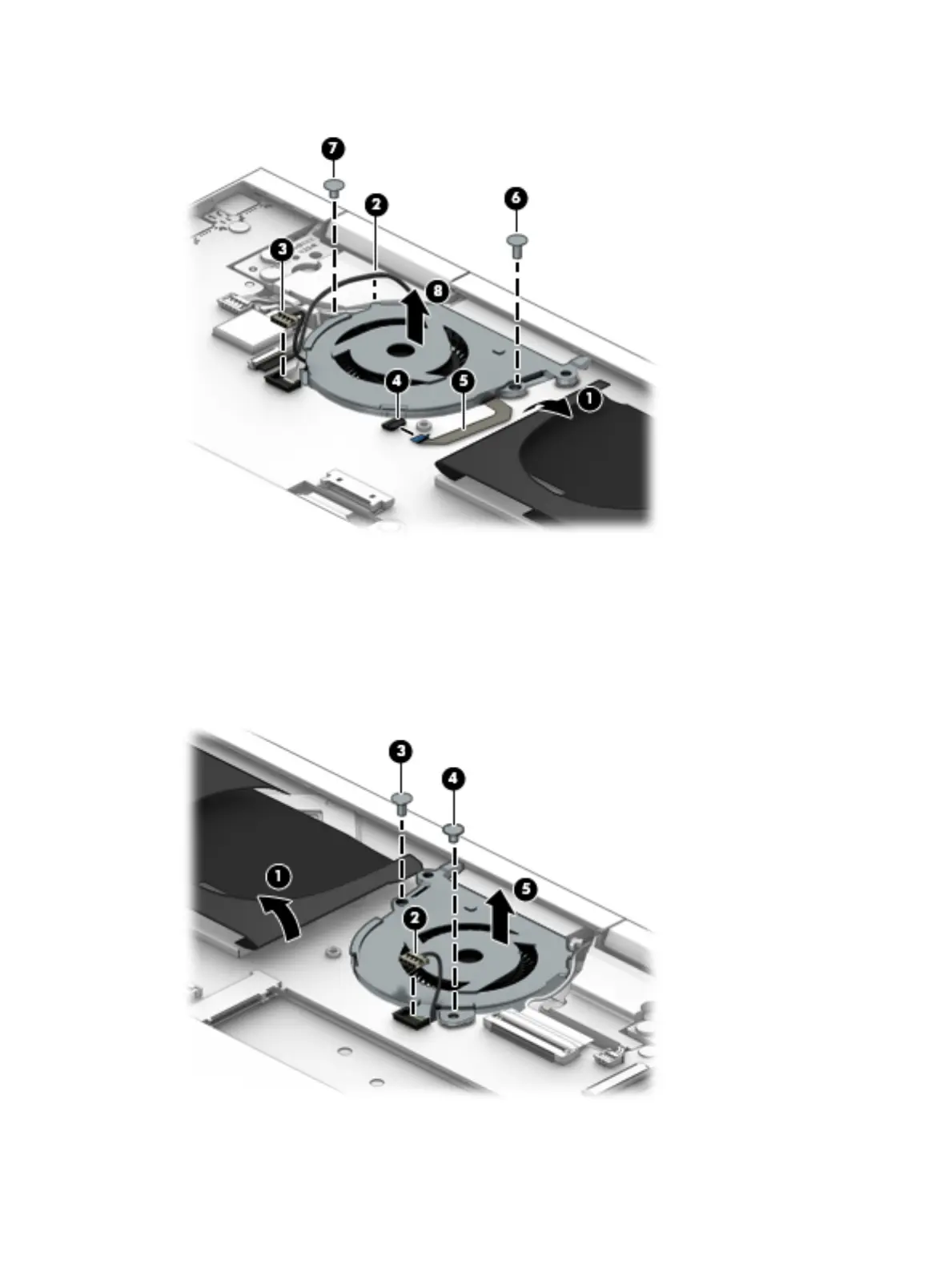

7. Remove the right fan (8).
Remove the left fan:
1. Release the system board shielding (1) that covers the left fan screw.
2. Disconnect the left fan cable (2) from the system board.
3. Remove the Phillips M2.0×5.2 screw (3) and the Phillips M2.0×2.8 screw (4) that secure the left fan to
the keyboard/top cover.
4. Remove the left fan (5).
Reverse this procedure to reassemble and install the fans.
36 Chapter 5 Removal and replacement procedures
