Card reader board cable
Description Spare part number
Card reader board cable (includes double-sided adhesive) 942830-001
Before removing the card reader board cable, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is o or in Hibernation, turn
the computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by rst unplugging the power cord from the AC outlet, and then
unplugging the AC adapter from the computer.
4. Remove the bottom cover (see Bottom cover on page 29).
5. Remove the battery (see Battery on page 31).

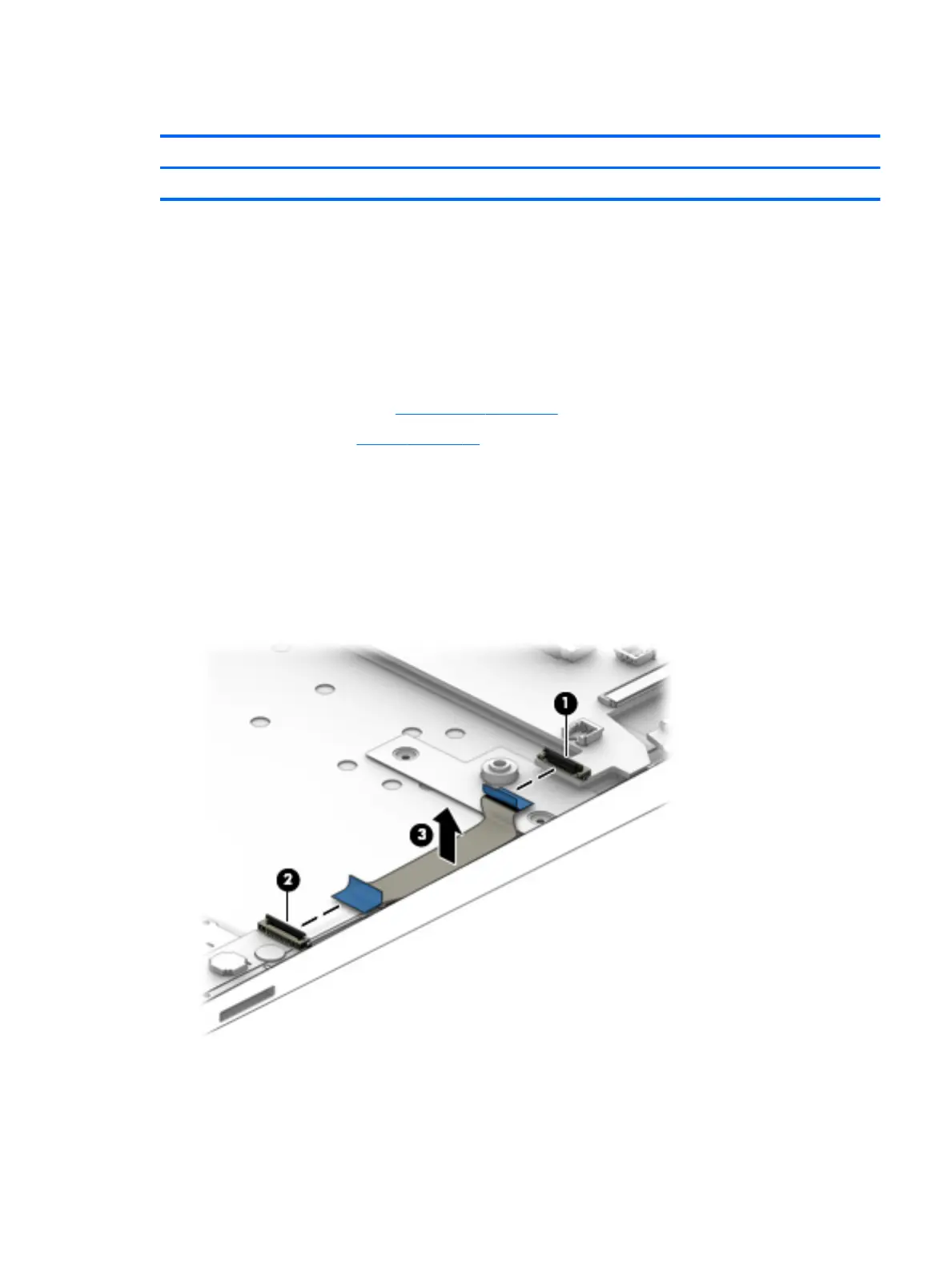

Remove the card reader board cable:
1. Release the ZIF connector (1) to which the card reader board cable is connected, and then disconnect
the card reader board cable from the system board.
2. Release the ZIF connector (2) to which the card reader board cable is connected, and then disconnect
the card reader board cable from the card reader board.
3. Detach the card reader board cable (3) from the keyboard/top cover. (The card reader board cable is
attached to the keyboard/top cover with double-sided adhesive.)
4. Remove the card reader board cable.
Reverse this procedure to install the card reader board cable.
Component replacement procedures 49
