3. Disconnect the power from the computer by rst unplugging the power cord from the AC outlet, and then
unplugging the AC adapter from the computer.
4. Remove the bottom cover (see Bottom cover on page 29).
5. Disconnect the battery cable from the system board (see Battery on page 31).
Remove the display assembly:

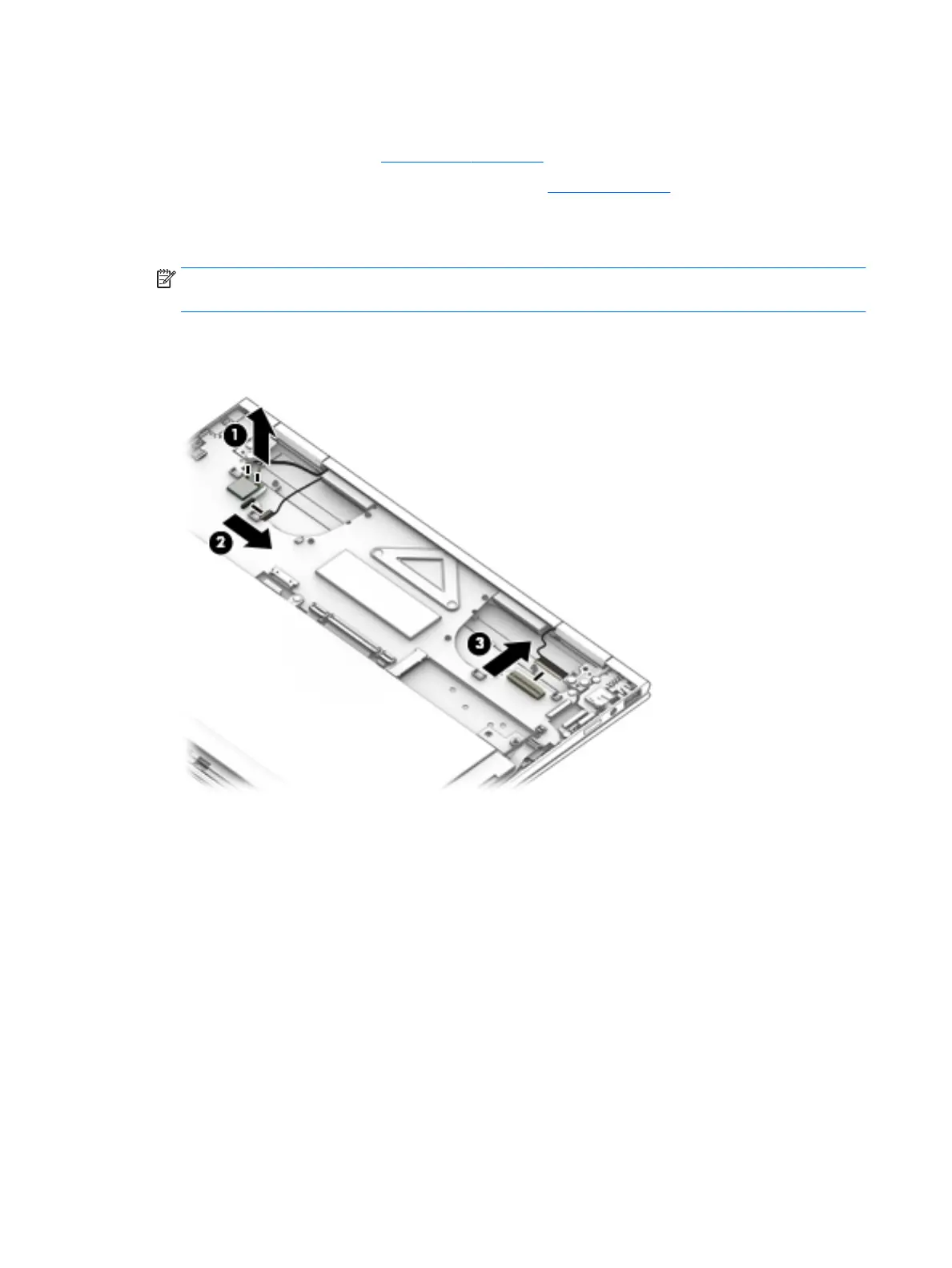

1. Disconnect the wireless antenna cables (1) from the WLAN module.
NOTE: The #1/white WLAN antenna cable connects to the WLAN module "#1/Main" terminal. The #2/
black WLAN antenna cable connects to the WLAN module "#2/Aux" terminal.
2. Disconnect the webcam/microphone module cable (2) from the system board.
3. Disconnect the display panel cable (3) from the system board.
42 Chapter 5 Removal and replacement procedures
