HP Spectre x360 13

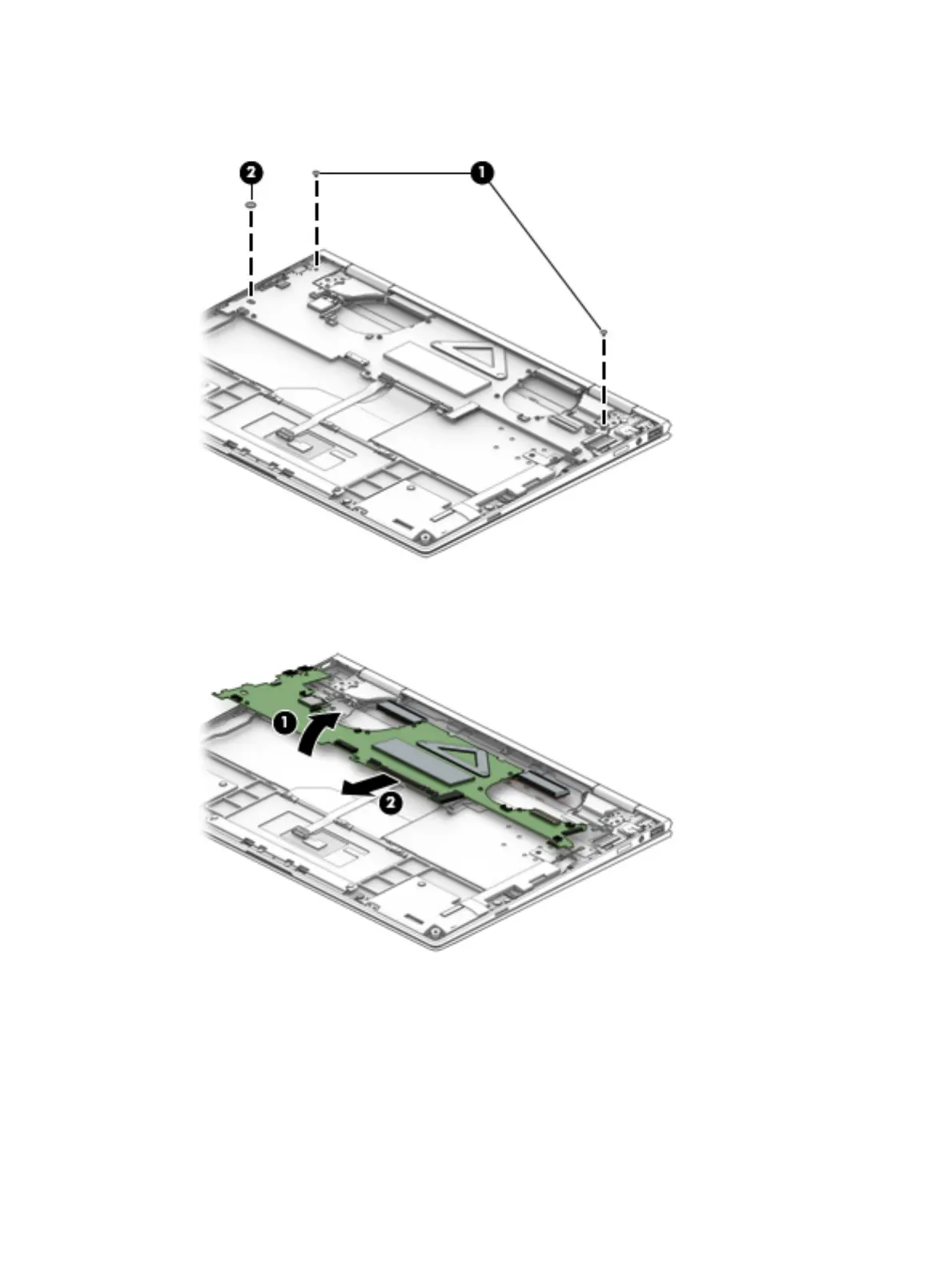

3. Remove the Phillips M2.0×1.9 broad head screw (2) that secures the system board to the keyboard/
top cover.
4. Lift the front edge of the system board (1) until it rests at an angle.
5. Remove the system board (2) by sliding it up and forward at an angle.
Reverse this procedure to install the system board.
Component replacement procedures 53
