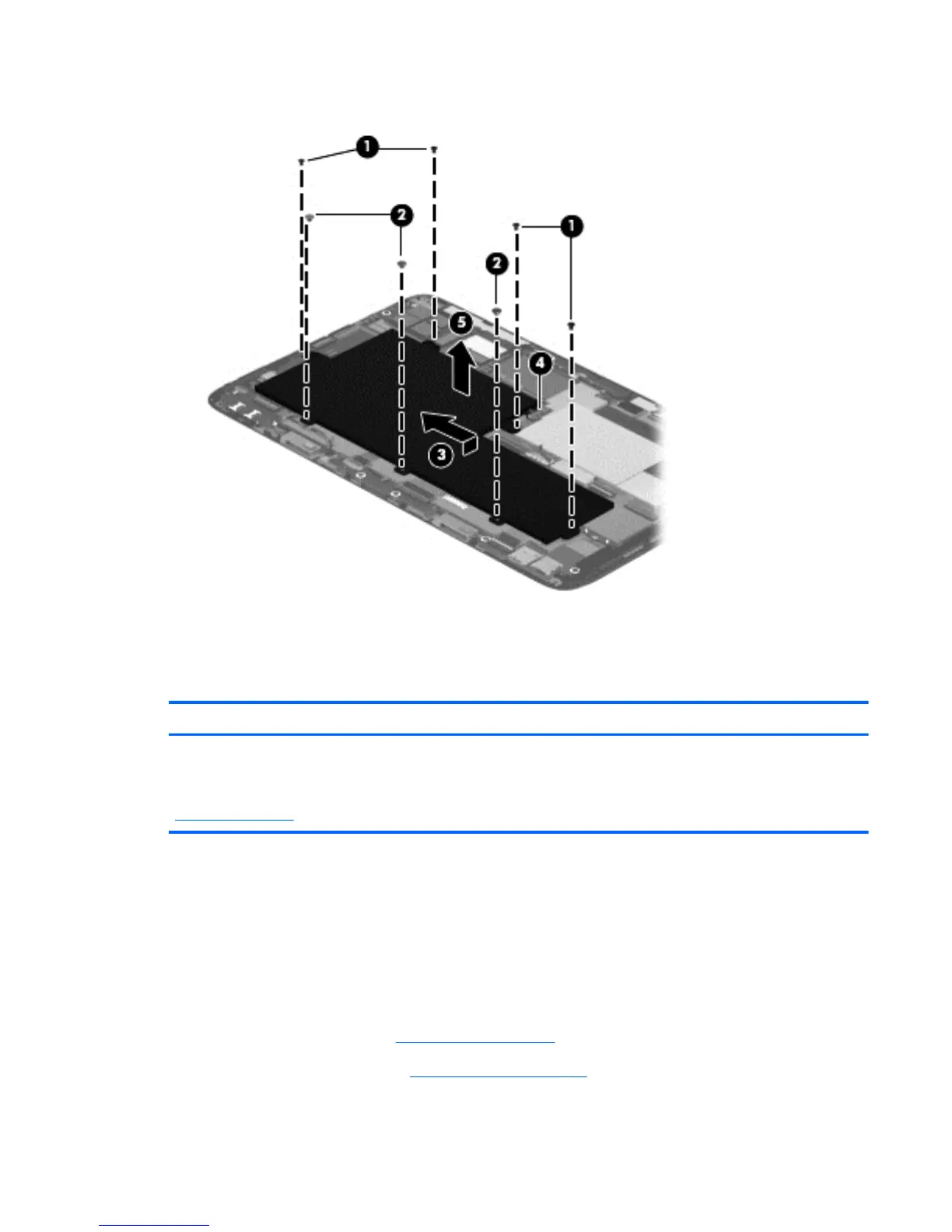

4. Remove the tablet battery (5).
Reverse this procedure to install the tablet battery.
Proximity sensor module
Description Spare part number
Proximity sensor module
NOTE: The proximity sensor module does not include the proximity sensor module cable. The
proximity sensor module cable is included in the Cable Kit, spare part number 736883-001. See
Cable Kit on page 21 for more Cable Kit spare part information.
736890-001
Before removing the proximity sensor module, follow these steps:
1. Turn off the tablet. If you are unsure whether the tablet is off or in Hibernation, turn the tablet on,
and then shut it down through the operating system.
2. Disconnect the power from the tablet by unplugging the power cord from the tablet.
3. Disconnect all external devices from the tablet.
4. Remove the back cover (see
Back cover on page 34).
5. Remove the tablet battery (see
Tablet battery on page 36).
Removal and replacement procedures
37
