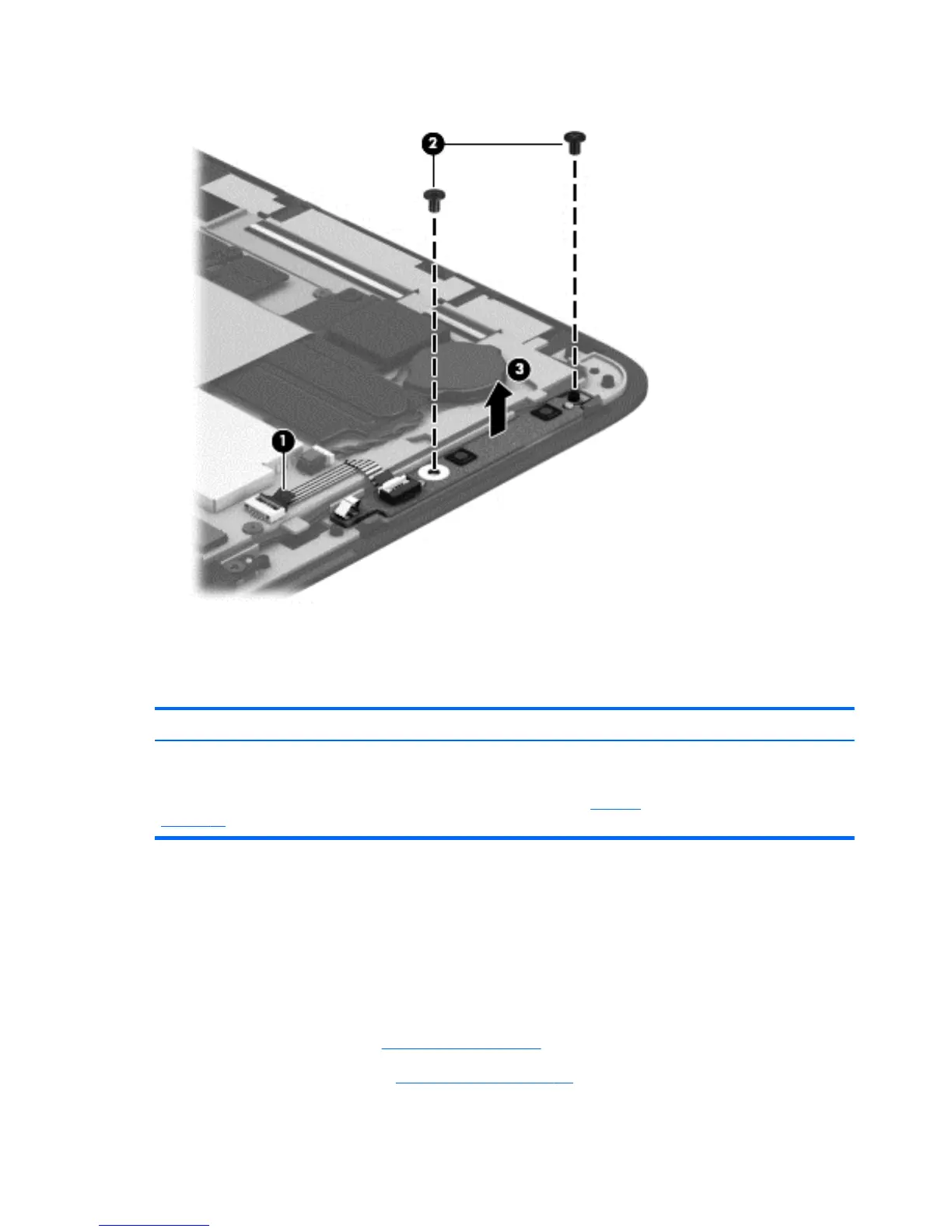

3. Remove the volume button board (3).
Reverse this procedure to install the volume button board.
TouchScreen board
Description Spare part number
TouchScreen board (includes double-sided adhesive)
NOTE: The TouchScreen board does not include the TouchScreen board cable. The TouchScreen
board cable is included in the Cable Kit, spare part number 736883-001. See
Cable Kit
on page 21 for more Cable Kit spare part information.
736892-001
Before removing the TouchScreen board, follow these steps:
1. Turn off the tablet. If you are unsure whether the tablet is off or in Hibernation, turn the tablet on,
and then shut it down through the operating system.
2. Disconnect the power from the tablet by unplugging the power cord from the tablet.
3. Disconnect all external devices from the tablet.
4. Remove the back cover (see
Back cover on page 34).
5. Remove the tablet battery (see
Tablet battery on page 36).
