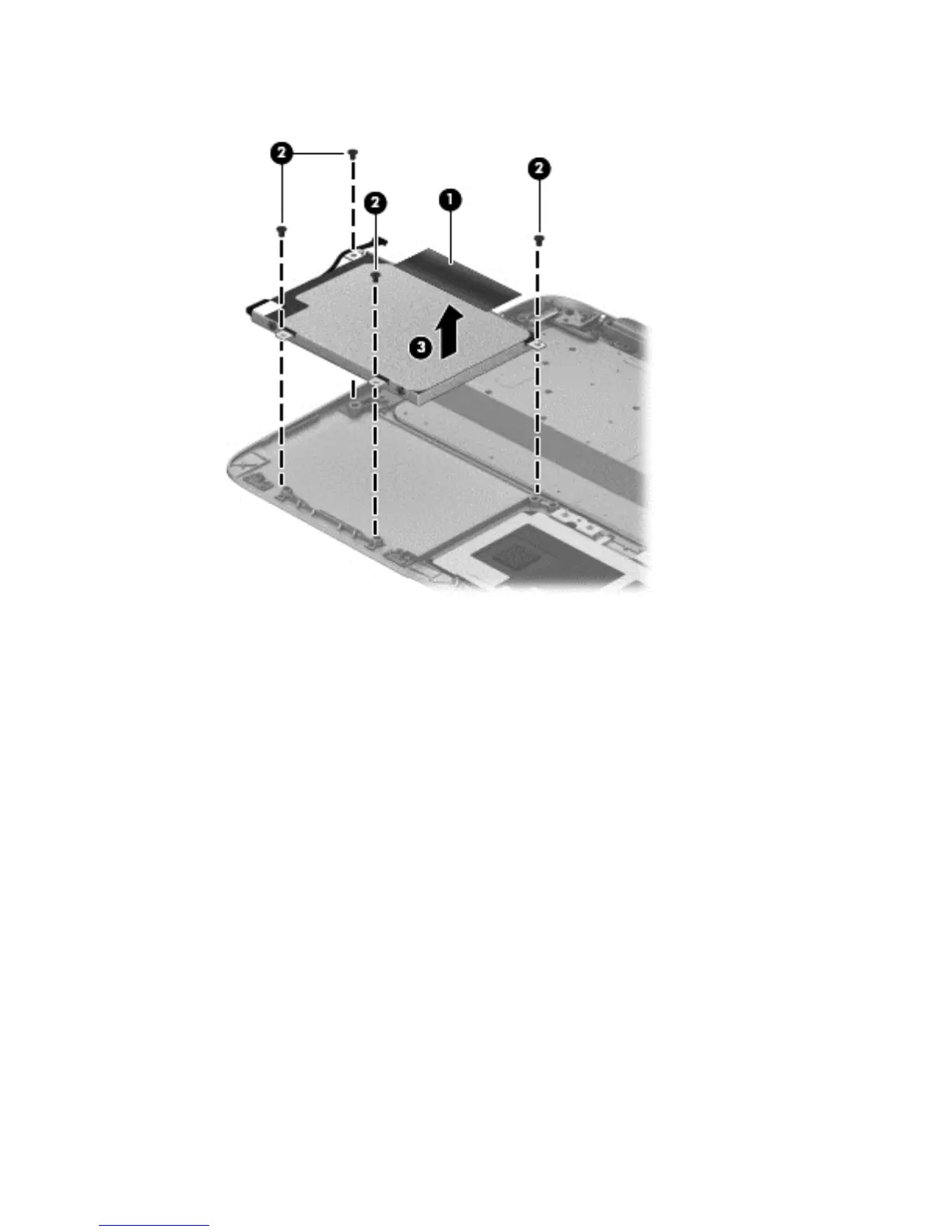

3. Remove the hard drive (3).
4. If it is necessary to disassemble the hard drive, perform the following steps:
a. Disconnect the hard drive connector cable (1) from the hard drive.
b. Remove the four Phillips PM2.75×4.0 screws (2) that secure the hard drive bracket to the
hard drive.
72 Chapter 4 Removal and replacement preliminary requirements
