TippingPoint 10/110/330 Hardware Installation and Safety Guide 19
To attach the TippingPoint 10 to a rack
If you plan to install the TippingPoint 10 on a rack, follow these steps to attach the ears:
1. Attach the rack mount ears to the server rack with screws.
2. Place the mounting plate containing the TippingPoint 10 on to the rack mount ears with the ear lugs
resting in the attachment holes.
3. Slide the plate forward to lock it into place on the ear lugs.
The following figure shows the completed assembly:

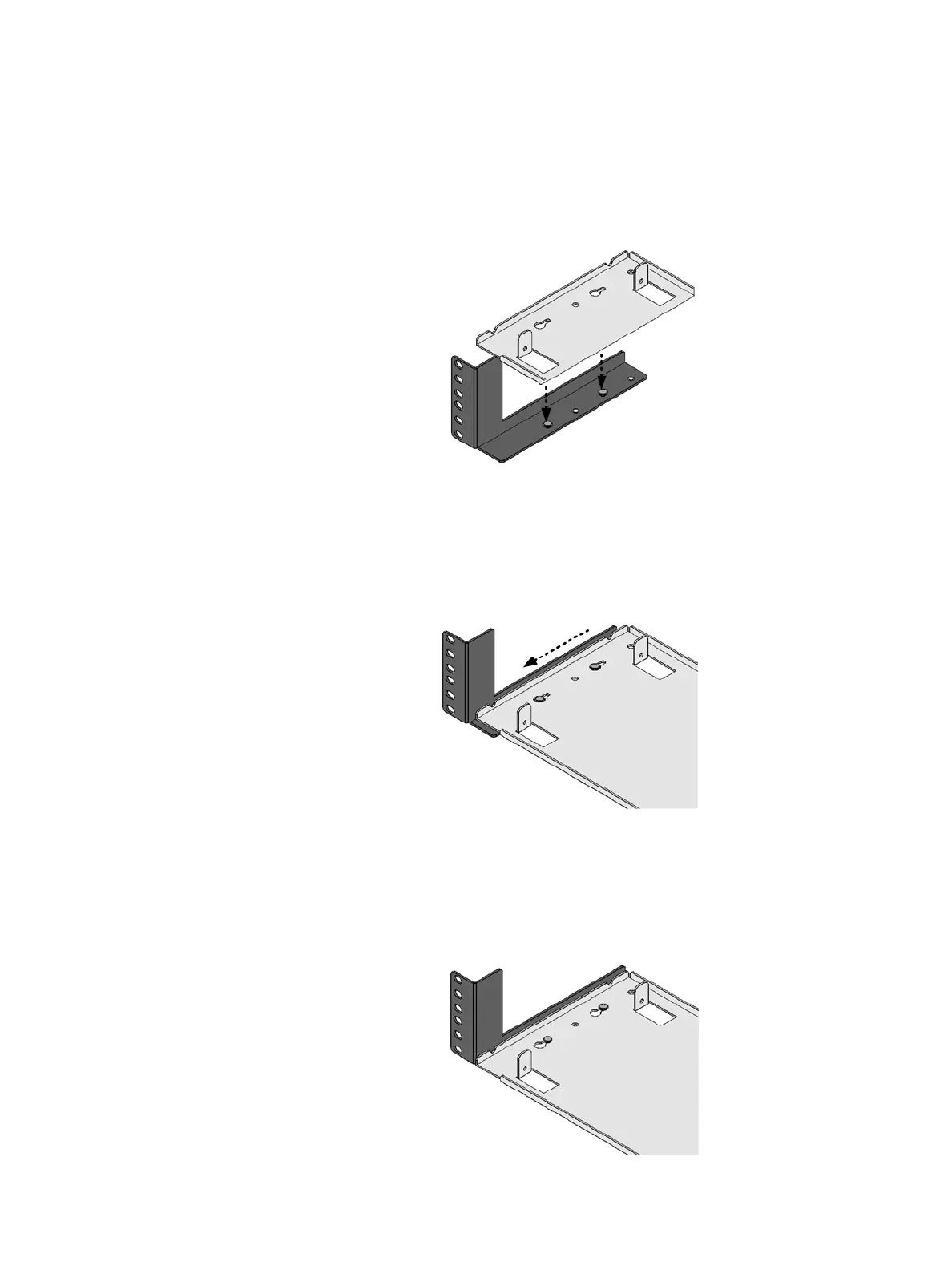

Figure 3-7 Placing the Mounting Plate On the Rack Mount Ears
Figure 3-8 Locking the Mounting Plate On the Rack Mount Ears
Figure 3-9 Mounting Plate Locked On the Rack Mount Ears
