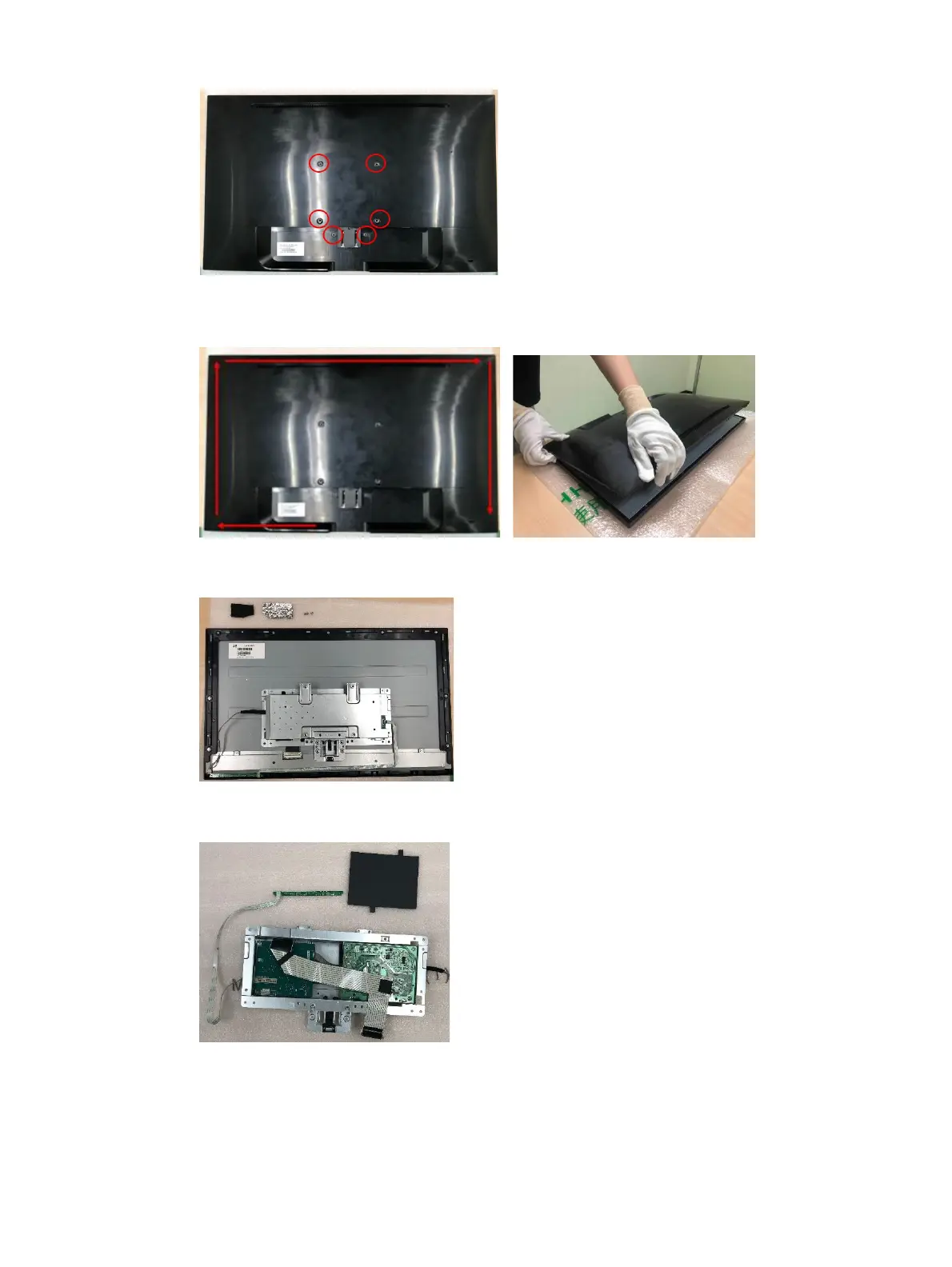

Remove screws from the rear cover

2) Insert the scraper bar tool into the gap between the middle frame and rear case, and then rotate. The hook

opens. Repeat the steps. Disassemble the top side and the right side.

Separating the rear cover

3) Remove 3 screws that fixed on Panel and peel off all Foils.

Remove screws and foils

4) Take out the mylar.

Remove screws and foils

5) Remove 2 screws from the housing.
