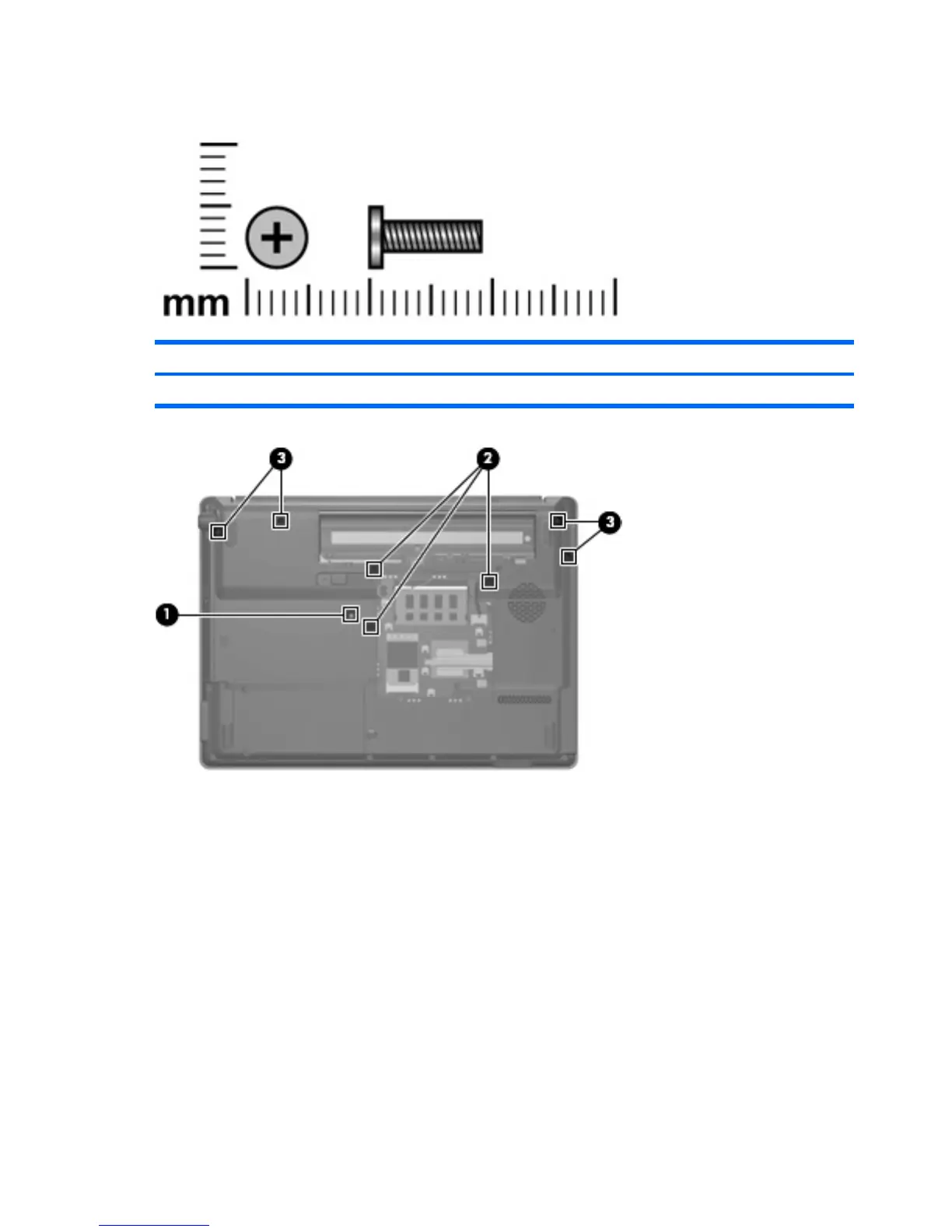

Phillips PM2.5×9.0 screw
Color
Quantity
Leng
th
Thread
Head diameter
Black
22
9.0 mm
2.5 mm
5.0 mm
Where used:
(1)
One screw that secu
res the
optical drive to the computer
(2)
Three screws that secure
the keyboard to the computer
(3)
Four screws
that secure th
e switch cover to the computer
102
Chapter
7
Screw listing
109
111
Table of Contents
Default Chapter
5
Table of Contents
5
1 Product Description
9
2 External Component Identification
13
Top Components
13
Display Components
13
Buttons and Speakers
14
Keys
15
Lights
16
Touchpad
17
Front Components
18
Right-Side Components
18
Left-Side Components
19
Bottom Components
20
3 Illustrated Parts Catalog
21
Serial Number Location
21
Computer Major Components
22
Display Assembly Components
28
Plastics Kit
30
Mass Storage Devices
31
Miscellaneous Parts
32
Sequential Part Number Listing
34
4 Removal and Replacement Procedures
40
Preliminary Replacement Requirements
40
Tools Required
40
Service Considerations
40
Plastic Parts
40
Cables and Connectors
41
Drive Handling
41
Grounding Guidelines
42
Electrostatic Discharge Damage
42
Packaging and Transporting Guidelines
43
Workstation Guidelines
43
Equipment Guidelines
44
Unknown User Password
45
Component Replacement Procedures
46
Serial Number
46
Computer Feet
47
Battery
48
Hard Drive
49
Memory Module
51
WLAN Module
53
Optical Drive
56
Keyboard
58
Switch Cover
61
Display Assembly
63
Camera Module
68
Top Cover
70
Caps Lock LED Board
72
USB Board
74
Fan
76
Speakers
78
System Board
80
RTC Battery
83
Card Reader Board
85
Heat Sink
87
Processor
89
Power Connector Cable
91
5 Setup Utility
92
Starting the Setup Utility
92
Changing the Language of the Setup Utility
92
Navigating and Selecting in the Setup Utility
93
Displaying System Information
93
Restoring Default Settings in the Setup Utility
93
Using Advanced Setup Utility Features
94
Closing the Setup Utility
94
Setup Utility Menus
94
Security Menu
95
System Configuration Menu
95
Diagnostics Menu
95
6 Specifications
96
Computer Specifications
96
Inch, WSXGA, Brightview Display Specifications
97
Hard Drive Specifications
98
DVD±RW and CD-RW Super Multi Double-Layer Combo Drive Specifications
99
System DMA Specifications
100
System Memory Map Specifications
100
System Interrupt Specifications
101
System I/O Address Specifications
102
7 Screw Listing
104
Phillips PM2.0×5.0 Captive Screw
105
Phillips PM3.0×3.0 Screw
106
Black Phillips PM2.0×3.0 Screw
107
Black Phillips PM2.0×4.0 Screw
108
Phillips PM2.5×9.0 Screw
110
Phillips PM2.5×4.0 Screw
112
Phillips PM2.5×7.0 Screw
115
Silver Phillips PM2.0×4.0 Screw
116
Phillips PM2.5×6.0 Captive Screw
117
8 Backup and Recovery
118
Recovering System Information
118
Backing up Your Information
118
When to Back up
118
Backup Suggestions
119
Using System Restore Points
119
When to Create Restore Points
119
Create a System Restore Point
119
Restore to a Previous Date and Time
121
Creating Recovery Discs
121
Performing a Recovery
122
Recovering from the Recovery Discs
122
Recovering from the Partition on the Hard Drive
122
9 Connector Pin Assignments
123
Audio-Out (Headphone)
123
Audio-In (Microphone)
123
External Monitor
124
Modem)
125
Network)
125
S-Video-Out
126
Universal Serial Bus
126
10 Power Cord Set Requirements
127
Requirements for All Countries or Regions
127
Requirements for Specific Countries or Regions
128
Display
129
Index
135
