5–6 Maintenance and Service Guide
Removal and Replacement Procedures

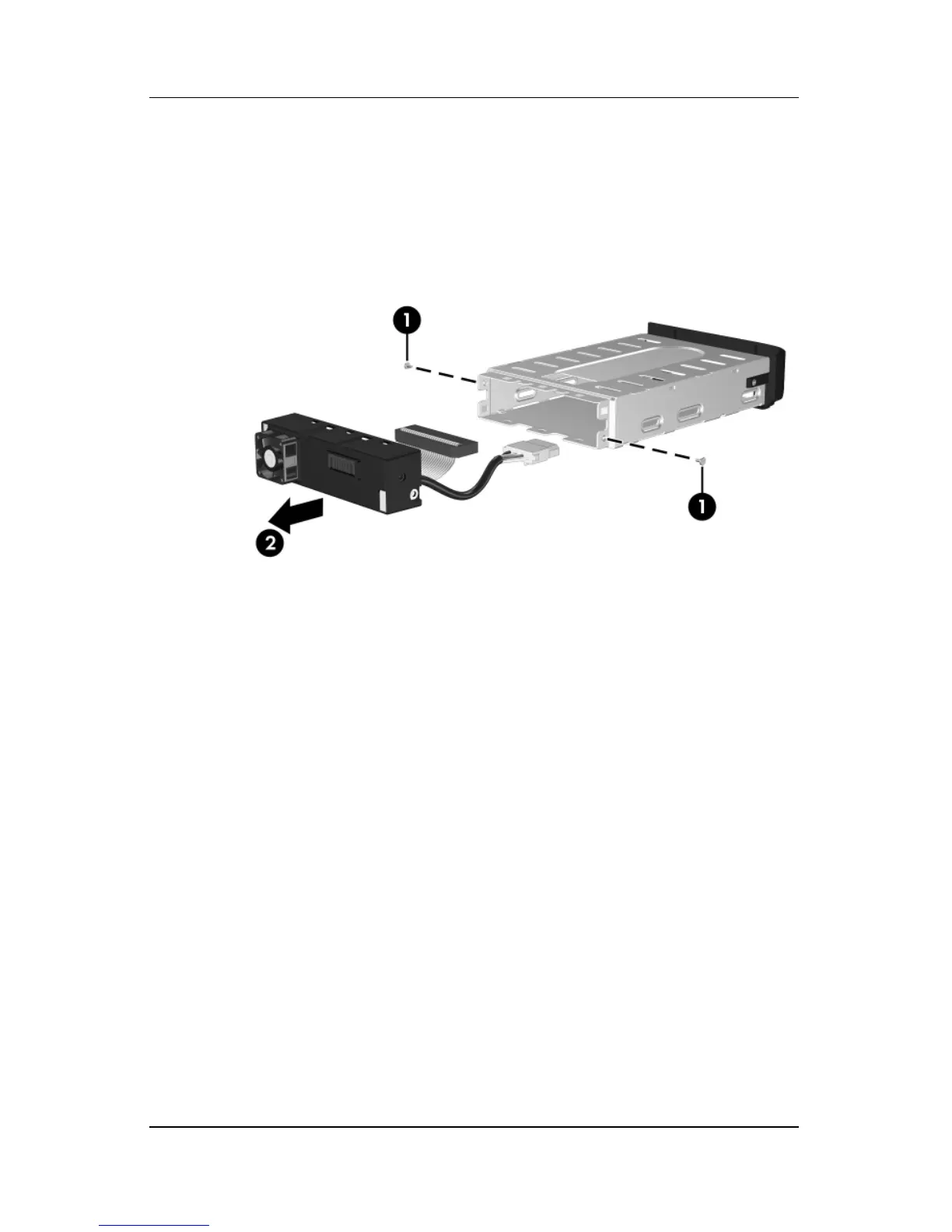

3. Remove the two Phillips PM2.5×5.0 screws 1 that secure the
hard drive carrier rear panel to the hard drive carrier.
4. Remove the hard drive carrier rear panel 2 from the
hard drive carrier.
Removing the Hard Drive Carrier Rear Panel
