HP Z1 G2 Product End-Of-Life Disassembly Instructions

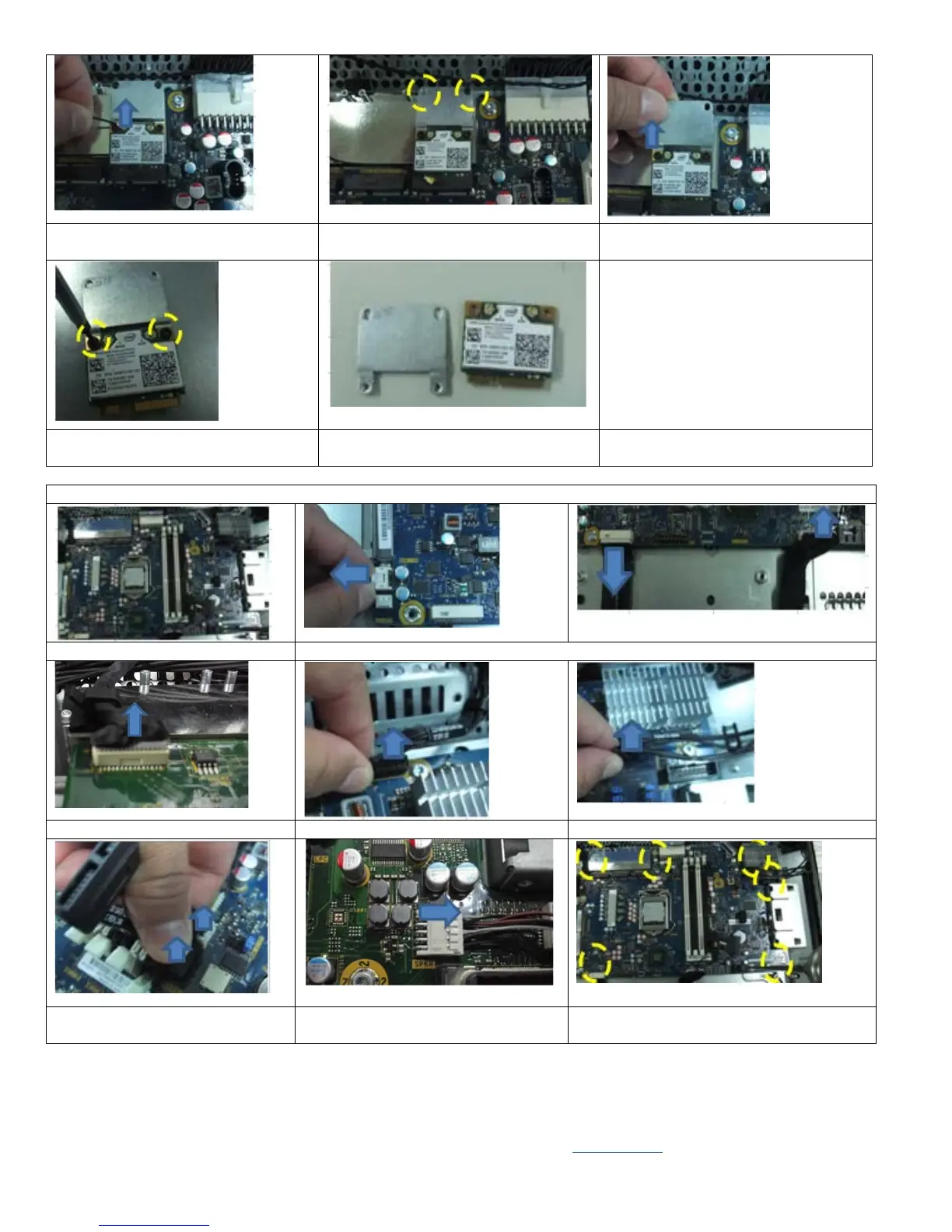

a) Pull the antenna aux cable out of
PCIe short card
b) c) Use T6 screw driver to
disassemble the screw
c)remove WLAN card module
d) Use T6 screw driver to
disassemble the screw
e) disassembly finish
17)Remove MB
a)ready for MB disassembly
b)remove connector from MB
C)remove LVDS cable from MB
d)remove backlight cable from MB
e)remove panel IO cable from MB
e)remove panel IO cable from
MB
f)remove speaker IO cable from MB
g) Use T15 screw driver to disassemble
the screw
EL-MF877-00 Page 10
