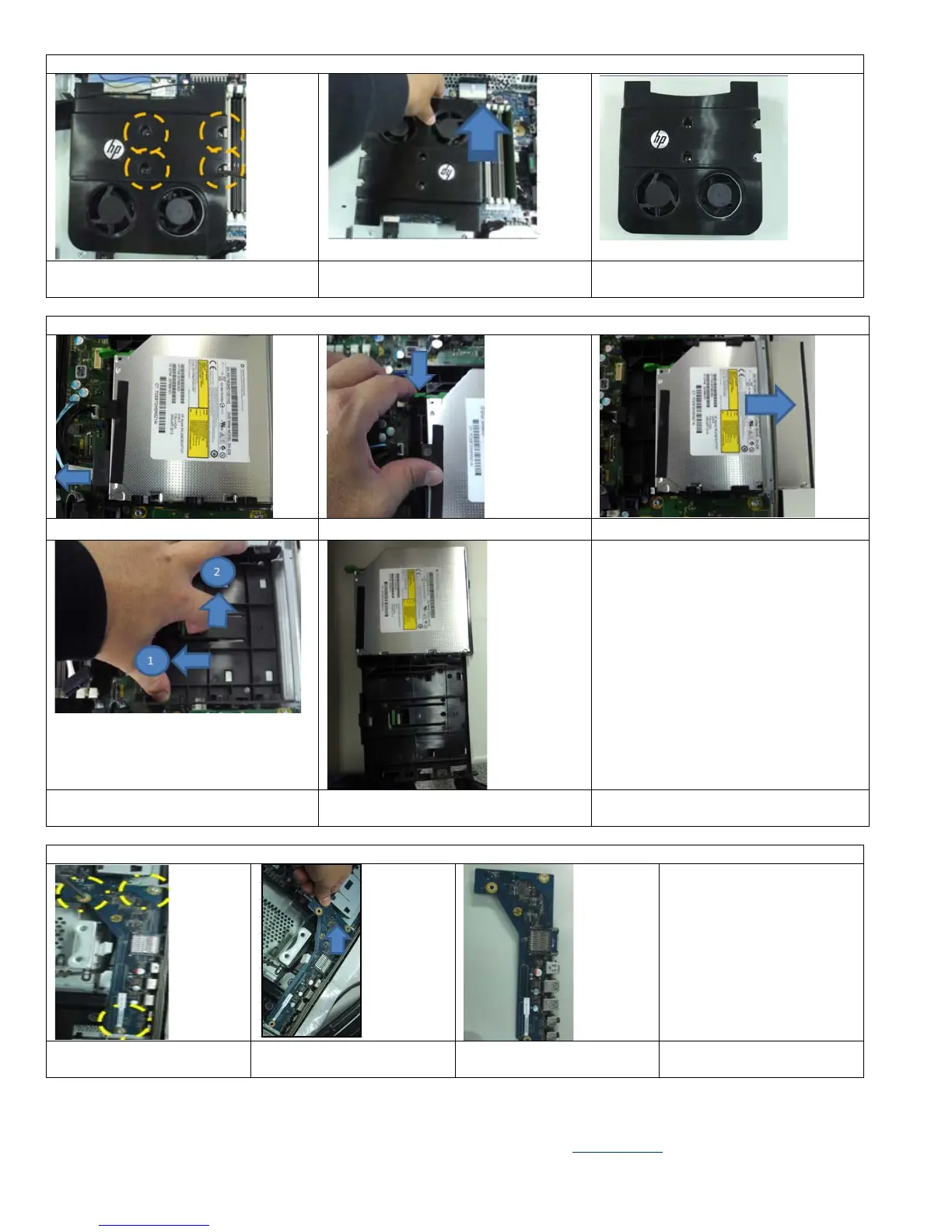

5)Remove Cpu thermal module
a) Use T15 screw driver to
disassemble the screw
b)remove CPU thermal
C)disassembly finish
6)Remove ODD
a)disassembly SATA connector
b)push ODD latch
c)remove ODD
a) Press ODD carrier latch then pull
it out.
b) disassembly finish
7)Remove site IO board
a) Use T15 screw driver to
disassemble the screw
b)remove site io card
c) disassembly finish
EL-MF877-00 Page 6
