5. Slide the drive all the way to the rear end of the carrier so that the power and data connectors
mate with the carrier adapter.

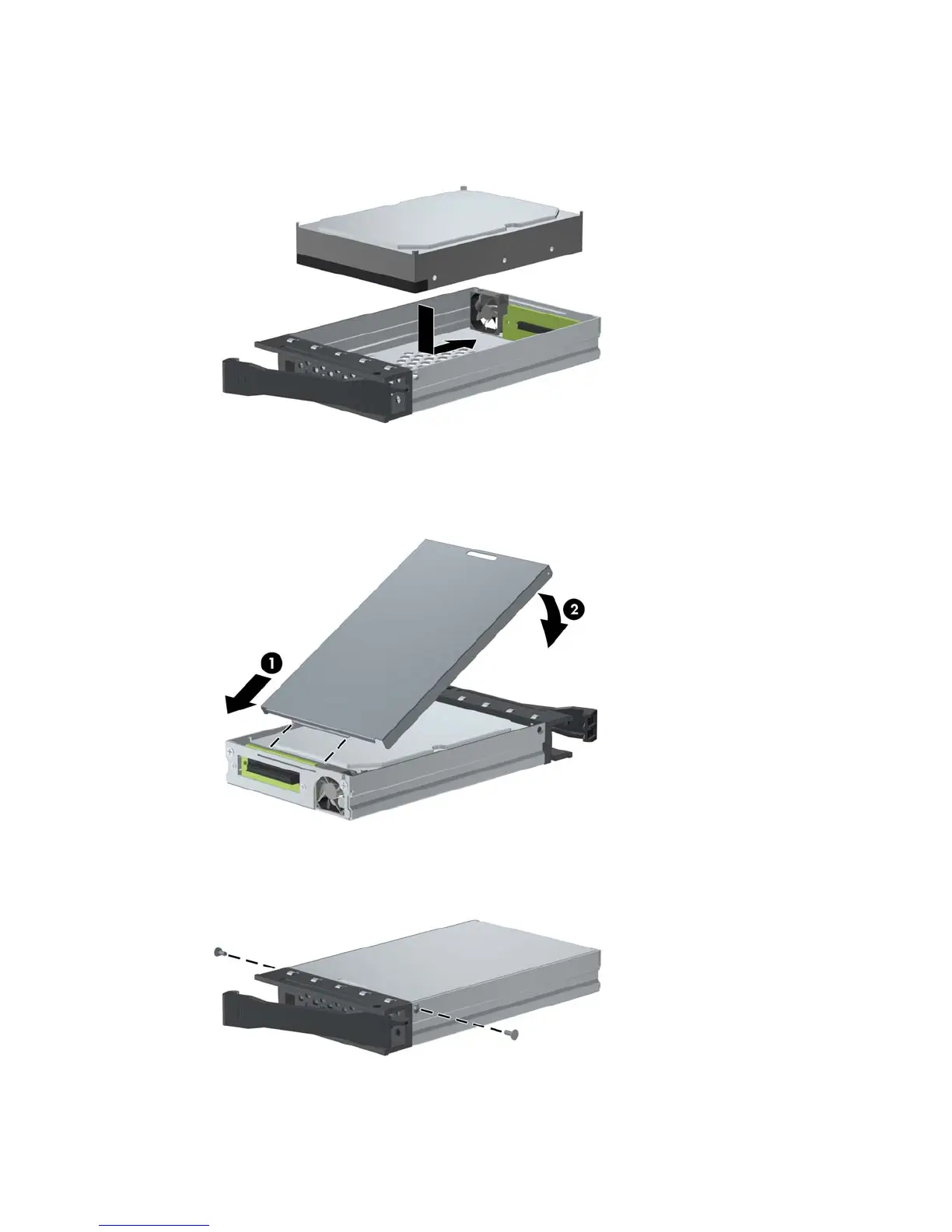

Figure 30 Installing the drive
6. Replace the cover by aligning the tab on the rear of the cover with the slot on the rear of the
carrier (1) and then rotating the front of the cover onto the carrier (2).
Figure 31 Replacing the cover
7. Replace the locking screws in the sides of the carrier.
Figure 32 Replacing the locking screws
ENWW
Step 3—Installing a hard disk in the DX115 carrier
17
