HP Z27i User Manual

EL-MF877-00
Template Revision B
Page 3
PSG instructions for this template are available at EL-MF877-01

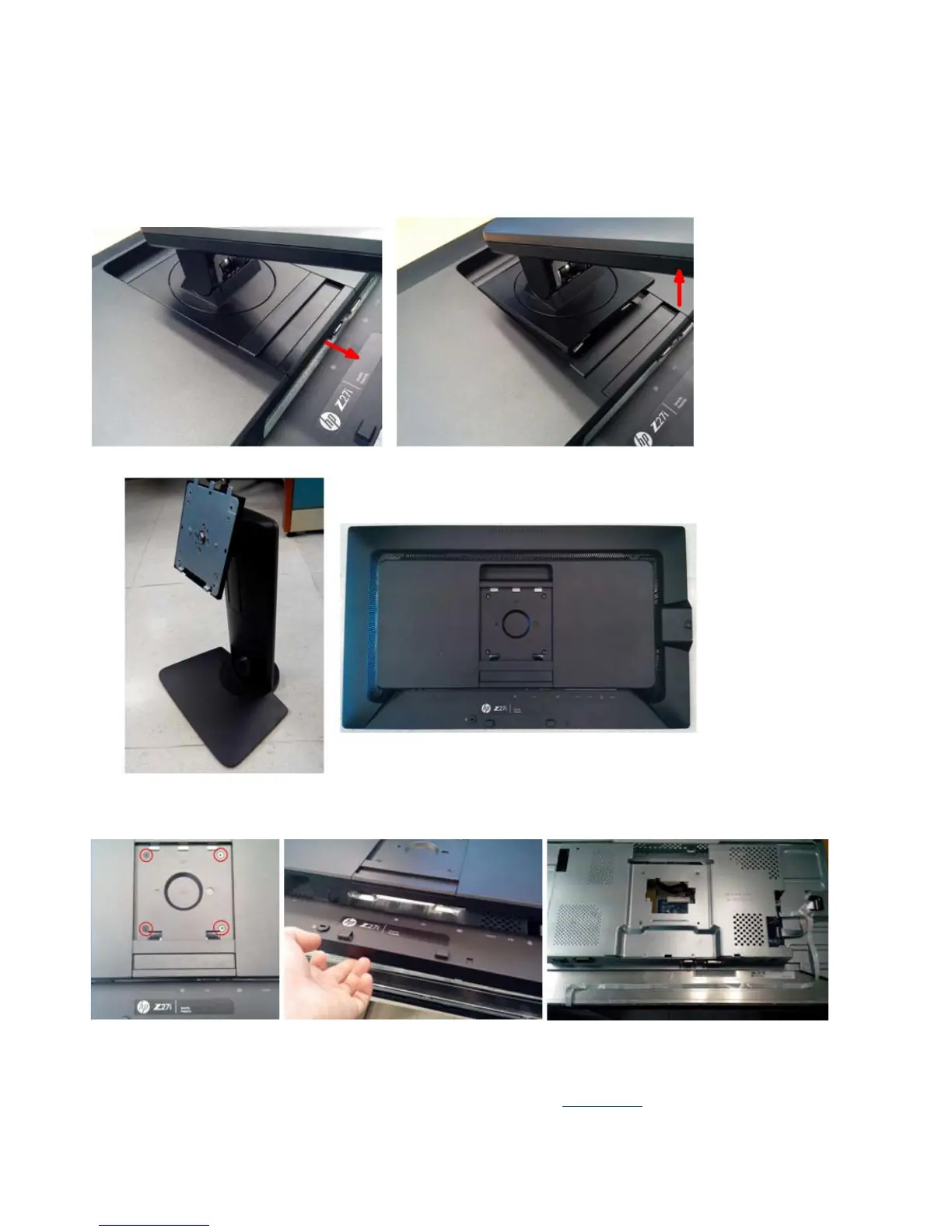

Step 1 :Use quick release button to separate head and stand.
Step 2 : Use tool to release screws and disassemble the rear cover by hand..

HP Z27i Specifications

General

Pixel pitch	0.233 x 0.233 mm
Aspect ratio	16:9
Response time	8 ms
Display diagonal	27 \
Display technology	LED
Vertical scan range	50 - 76 Hz
Contrast ratio (dynamic)	5000000:1
Contrast ratio (typical)	1000:1
Display number of colors	-
Display brightness (typical)	350 cd/m²
Supported graphics resolutions	720 x 400, 2560 x 1440, 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 800 (WXGA), 1440 x 900 (WXGA+), 1600 x 1200 (UXGA), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 640 x 480 (VGA), 800 x 600 (SVGA)
Rotating	Yes
USB version	3.2 Gen 1 (3.1 Gen 1)
USB Type-A downstream ports quantity	5
Product color	Black
Country of origin	China
Market positioning	Business
Pivot angle	0 - 90 °
Tilt angle range	-5 - 20 °
Panel mounting interface	100 x 100 mm
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	75 W
Power consumption (standby)	0.5 W
Power consumption (typical)	60 W
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	5 - 35 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	20 - 80 %
Sustainability certificates	EPEAT Gold, ENERGY STAR
Cables included	AC, DisplayPort, DVI, USB
Harmonized System (HS) code	85285210

Weight and Dimensions

Depth (with stand)	242.4 mm
Height (with stand)	420.4 mm
Weight (with stand)	7600 g
Depth (without stand)	65.5 mm
Width (without stand)	641 mm
Height (without stand)	379.2 mm
Weight (without stand)	5300 g
