HP Z420 User Manual

Converting to desktop configuration (Z420 only)
This workstation can be operated in mini-tower or desktop configuration. Follow these steps to convert
to desktop configuration:
NOTE: See a video of this task at http://www.hp.com/go/sml.
1. Prepare the workstation for component installation.
2. Remove the front bezel from the workstation.
3. Press gently on the edges of the optical drive bay filler panel and remove it from the front bezel.

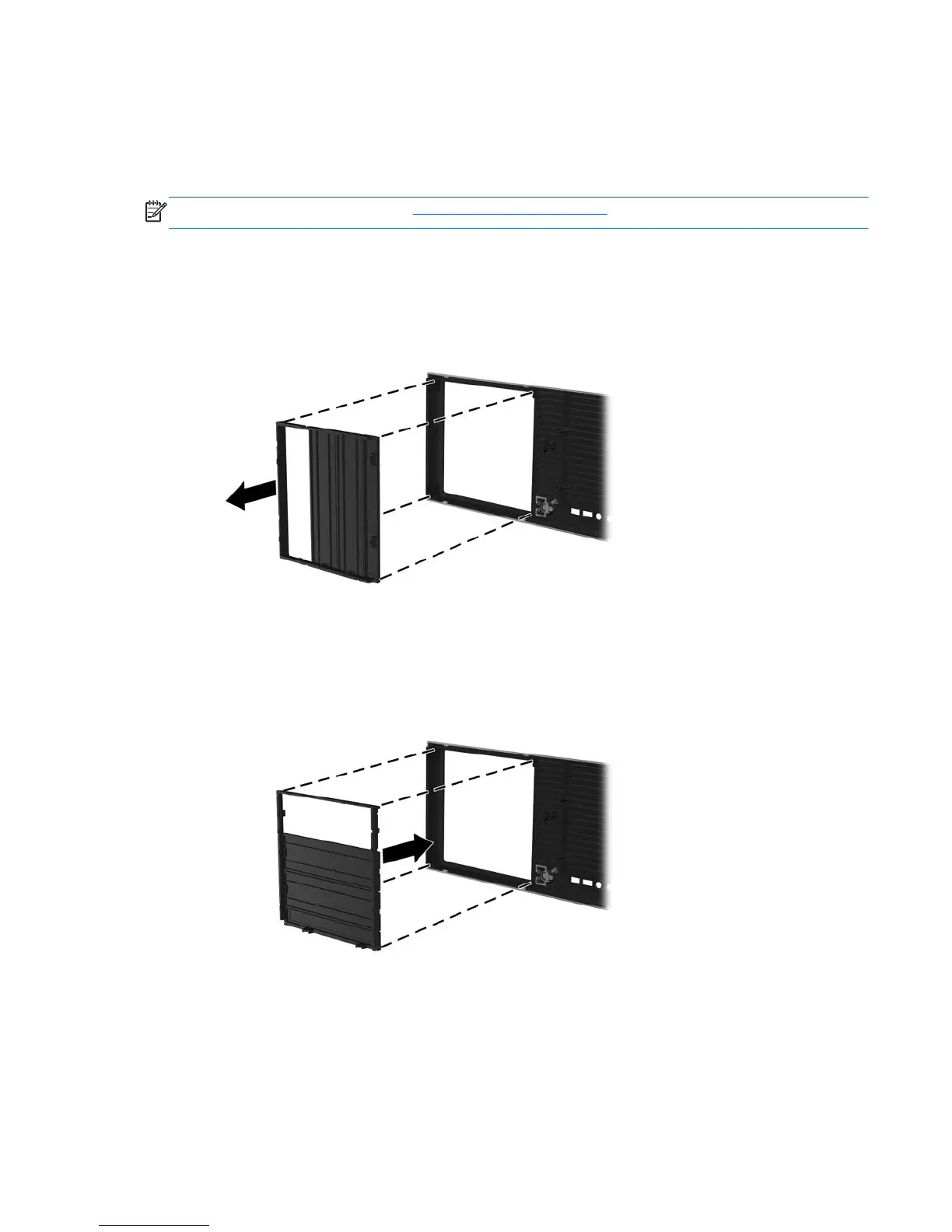

Figure 3-6 Removing the ODD bay filler panel
4. Rotate the filler panel 90 degrees to a horizontal position.
5. Align the slots in the filler panel frame with the tabs in the front bezel. Press the optical drive filler
panel back into the front bezel until it snaps into place.
Figure 3-7 Installing the ODD bay filler panel
Converting to desktop configuration (Z420 only)
23

HP Z420 Specifications

General

Tcase	64 °C
Bus type	QPI
Stepping	M1
FSB Parity	No
Processor cache	10 MB
Processor cores	4
Processor model	E5-1603
System bus rate	0 GT/s
Processor socket	LGA 2011 (Socket R)
Processor codename	Sandy Bridge EP
Processor frequency	2.8 GHz
Processor cache type	L3
Processor lithography	32 nm
Processor manufacturer	Intel
Processor front side bus	- MHz
PCI Express slots version	3.0
Processor operating modes	64-bit
ECC supported by processor	Yes
Thermal Design Power (TDP)	130 W
Number of processors installed	1
CPU multiplier (bus/core ratio)	28
Maximum number of PCI Express lanes	40
Memory types supported by processor	DDR3-SDRAM
Memory clock speeds supported by processor	800, 1066 MHz
Memory bandwidth supported by processor (max)	31.4 GB/s
Maximum internal memory supported by processor	375 GB
Product type	Workstation
Motherboard chipset	-
Internal memory	4 GB
Memory channels	Quad-channel
Memory clock speed	1600 MHz
Maximum internal memory	- GB
Memory layout (slots x size)	2 x 2 GB
HDD speed	7200 RPM
HDD capacity	500 GB
HDD interface	SATA
Optical drive type	DVD Super Multi
Discrete graphics card model	AMD FirePro V4900
Maximum graphics card memory	1.024 GB
Graphics card family	AMD
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Chassis type	Mini Tower
Product color	Black
Country of origin	China
Operating system installed	Windows 7 Ultimate
Sustainability certificates	ENERGY STAR
Processor code	SR0L9
Processor ARK ID	64600
Processor package size	52.5 x 45.0 mm
Supported instruction sets	AVX

Weight and Dimensions

Depth	- mm
Weight	- g
