HP Z440

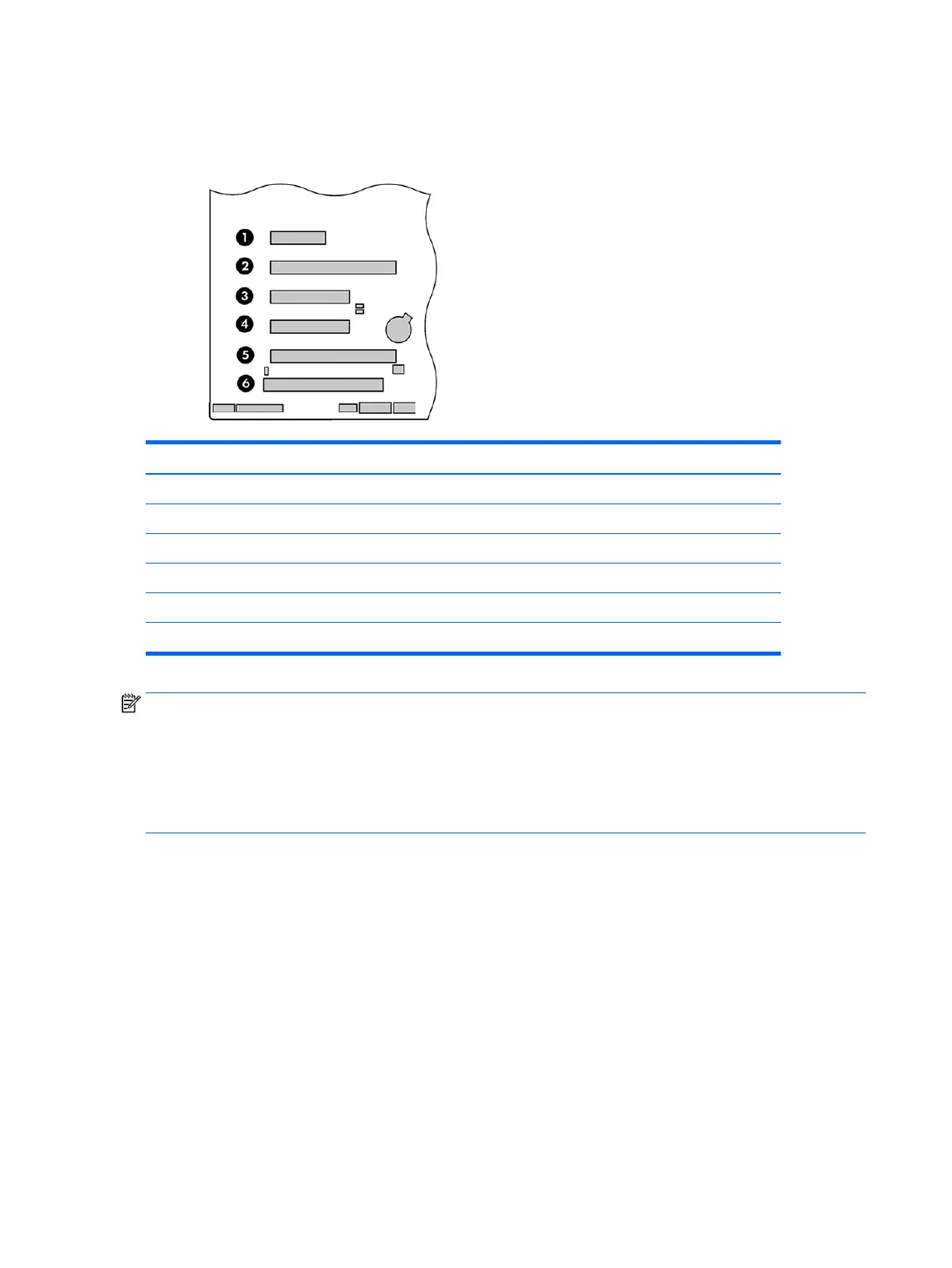

HP Z440 Workstation slot identication and description
Maximum power used by all slots must not exceed total system power and is subject to conguration
limitations.
Slot Type Mechanical compatibility Electrical compatibility
1 PCIe2 x4 (1) x4 x1
2 PCIe3 x16 x16 x16
3 PCIe2 x8 (4) x8 x4
4 PCIe3 x8 x8 x8
5 PCIe3 x16 x16 x16
6 PCI 32/33 PCI PCI
NOTE: The PCIe designators indicate the mechanical connector size and number of electrical PCIe lanes
routed to an expansion slot. For example, x16 (8) means that the expansion slot is mechanically a x16 length
connector, with 8 PCIe lanes supported.
Slot two is the primary graphics slot; slot ve is the secondary graphics slot.
Slots one, three, and four use open-ended PCIe connectors, so a PCIe x16 card can be inserted. Graphics cards
greater than 75 watts require the use of an auxiliary power cable adapter.
