Connecting Audio 59
Connecting Audio
FM Radio Antenna
The HP Digital Entertainment Center includes an FM radio
tuner.
To connect the FM radio antenna:
1 Plug the FM radio antenna cable into the FM (Tuner)
In connector on the back panel (75-Ohm Coaxial).
2 You may want to extend the ends of the cable to
improve your FM radio signal reception.

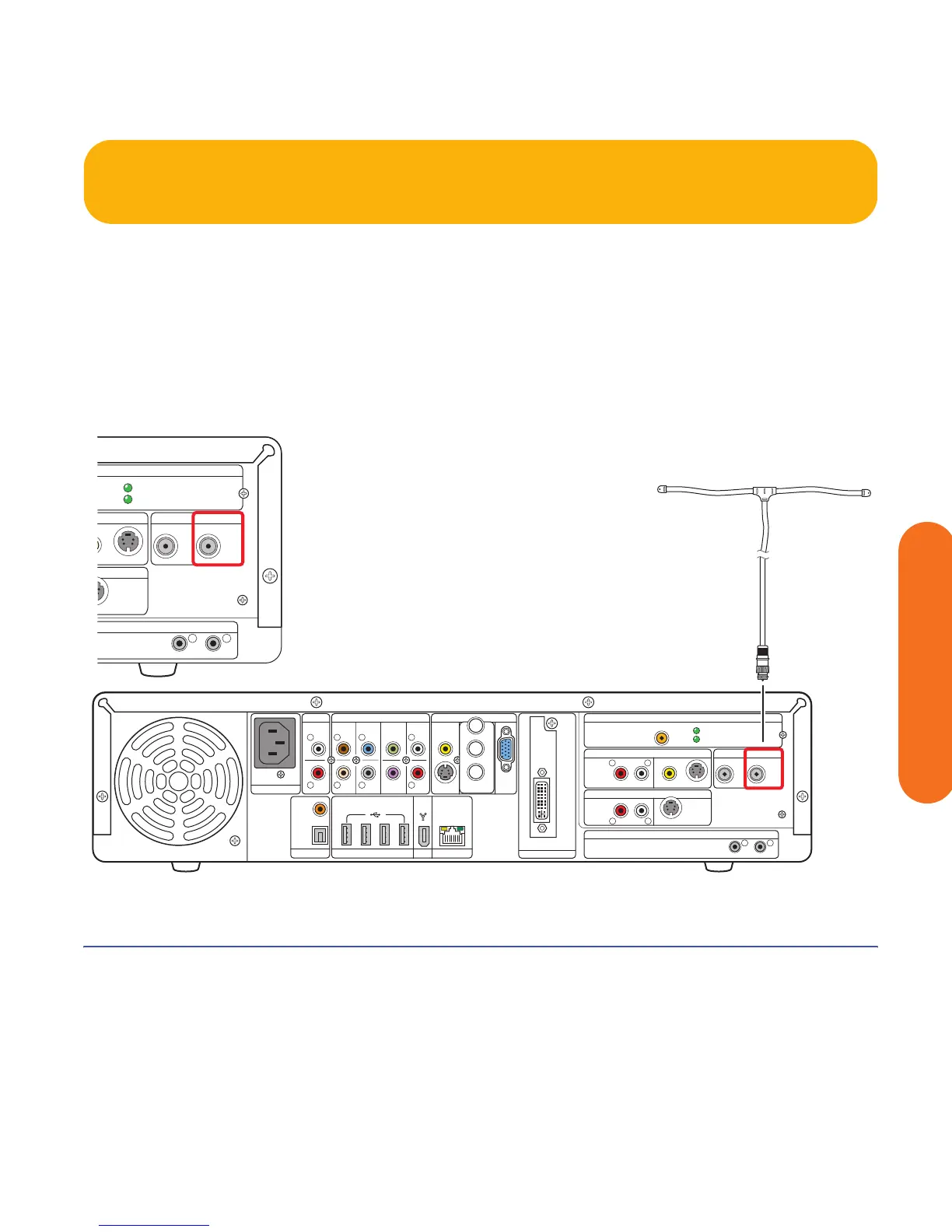

The following diagram shows typical FM antenna
connections:
■ Indoor antenna
Or
■ Rooftop antenna (sold separately)
This is only a suggested configuration. Your system may
be different.
FM radio antenna cable external or internal connection
DIGITAL VIDEO OUT
DVI
DIGITAL
AUDIO
OUT
COAXIAL
OPTICAL
10/ 100/ 1000
HI SPEED USB 2.0 ETHERNET1394
AUDIO IN
R
L
AUDIO 7.1 PRE-OUT
SURROUND
BACK
SURROUND CENTER
SUB
WOOFER
FRONT
R R
R
L L L
VIDEO OUT
S-VIDEO COMPONENT
VIDEO
Y
Pb
VGA
Pr
INFRARED TRANSMITTER OUT
12
TV SOURCE 1 IN
VIDEO
AUDIO
S-VIDEO
R
L
WIRELESS LAN 802.11 b/g
REMOVABLE ANTENNA
ACTIVITY
LINK
TV ANTENNA IN
FM ANTENNA IN
AC IN
100-240V- 4/A 50/60Hz
TV SOURCE 2 IN
S-VIDEOAUDIO
RL
75
Ω
COAXIAL
DUAL
TUNER
FM Antenna
ANSMITTER OUT
12
O S-VIDEO
802.11 b/g
ENNA
ACTIVITY
LINK
TV ANTENNA IN FM ANTENNA IN
S-VIDEO
75
Ω
COAXIAL
DUAL
TUNER
Do Not Remove
To Next Page
