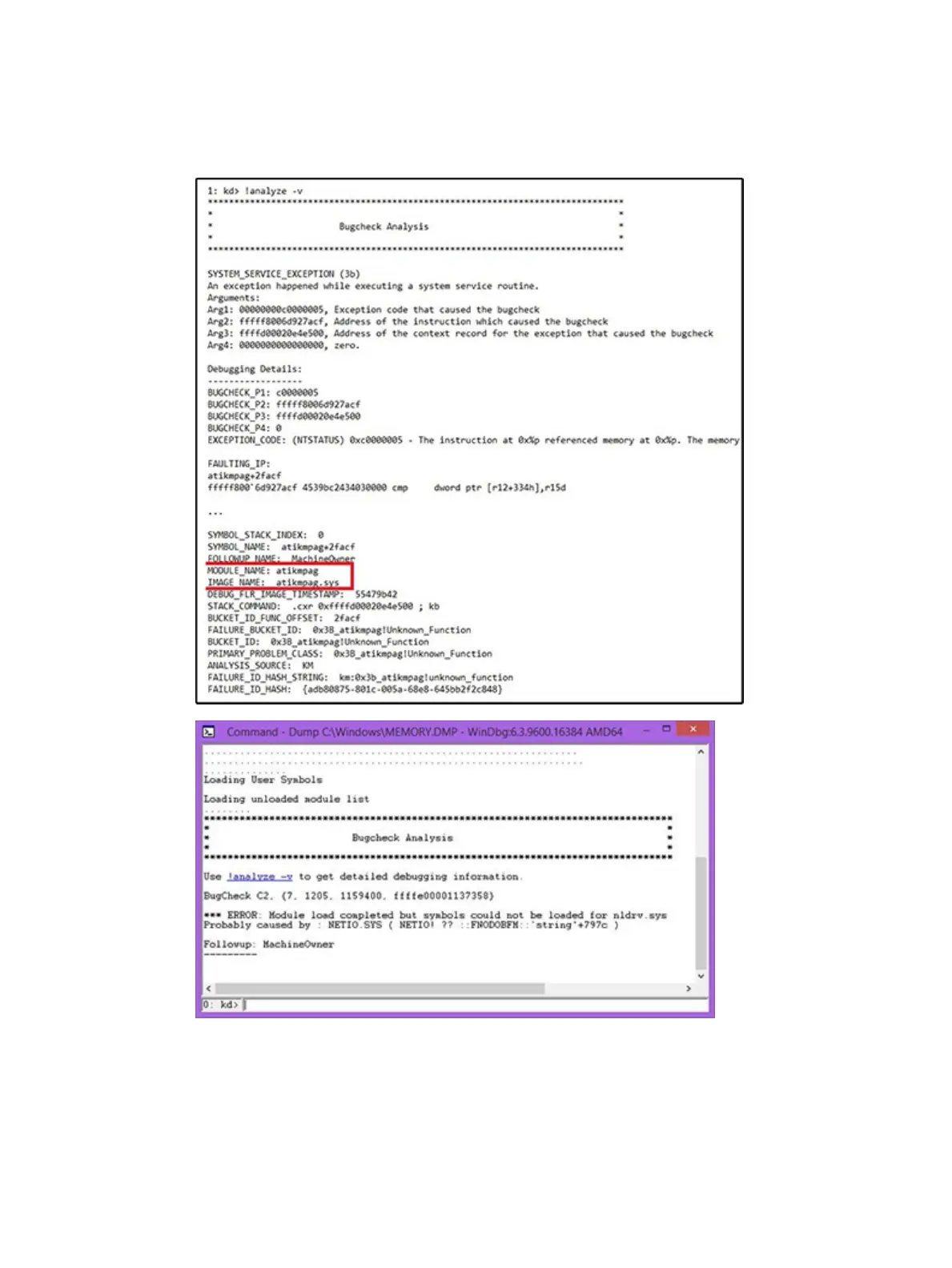

7. Analyze the le. In the following memory dump sample, look for Bug Check 0x3B. The ATIKMAG driver

needs to be investigated for further root cause.

Lookup for Bug Check 0xC2.

Additional information 147
