HP ZBook 17 G5

To Next Page

To Previous Page

b. IR camera models

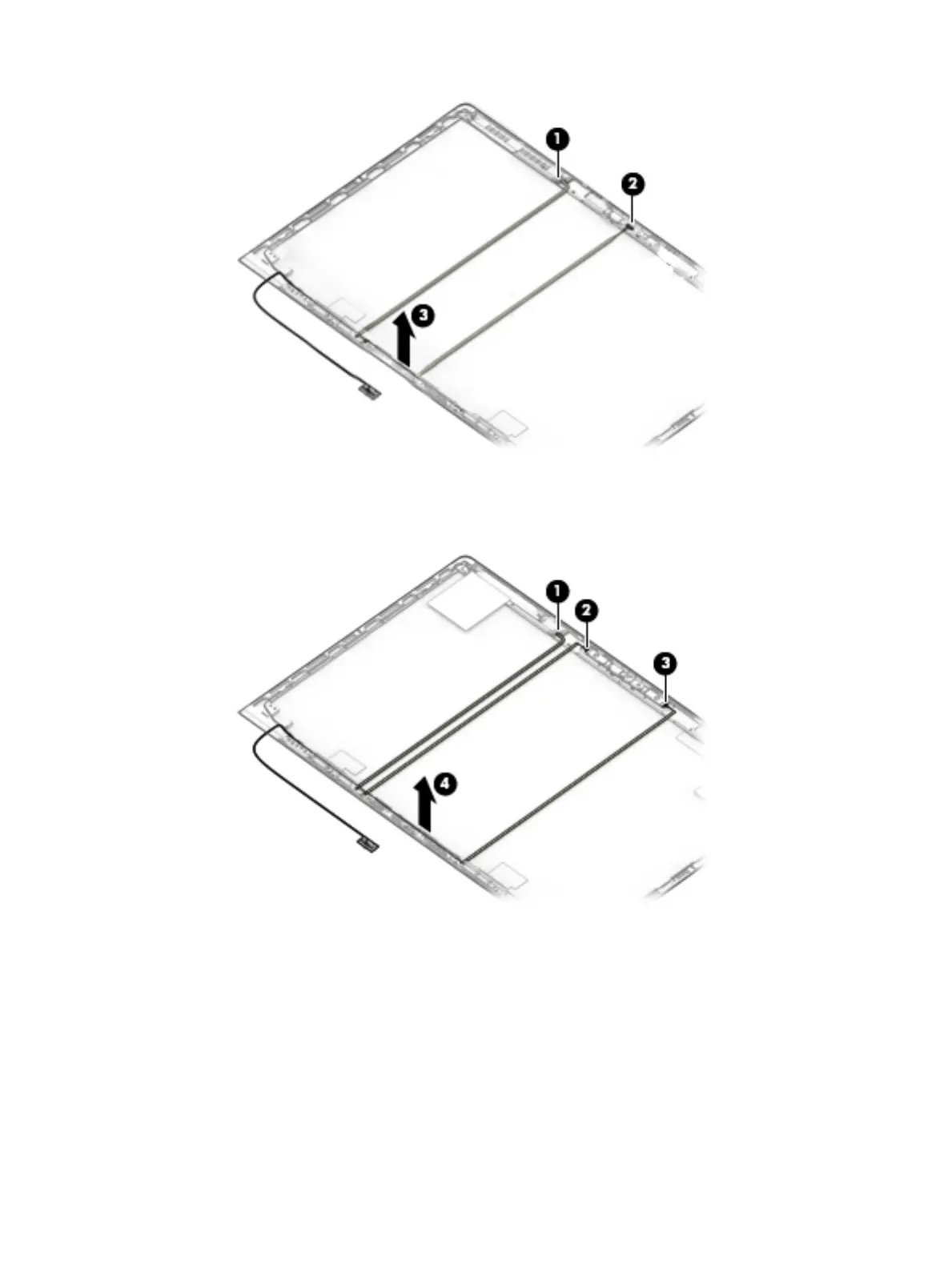

Disconnect the cable from the ambient light sensor board (1), from the left (2) and right (3) sides

of the IR camera, and then remove the cable from the display enclosure (4).

Component replacement procedures 97
