PUNCH MACHINE
™
2. Move the wrench as indicated to set the needle at known
space dimension. Turning the shaft counterclockwise
moves the Spacing Needle to the right. Turning the shaft
clockwise moves the Spacing Needle to the left. Do not
force beyond full left or or right positions! (see page 14).

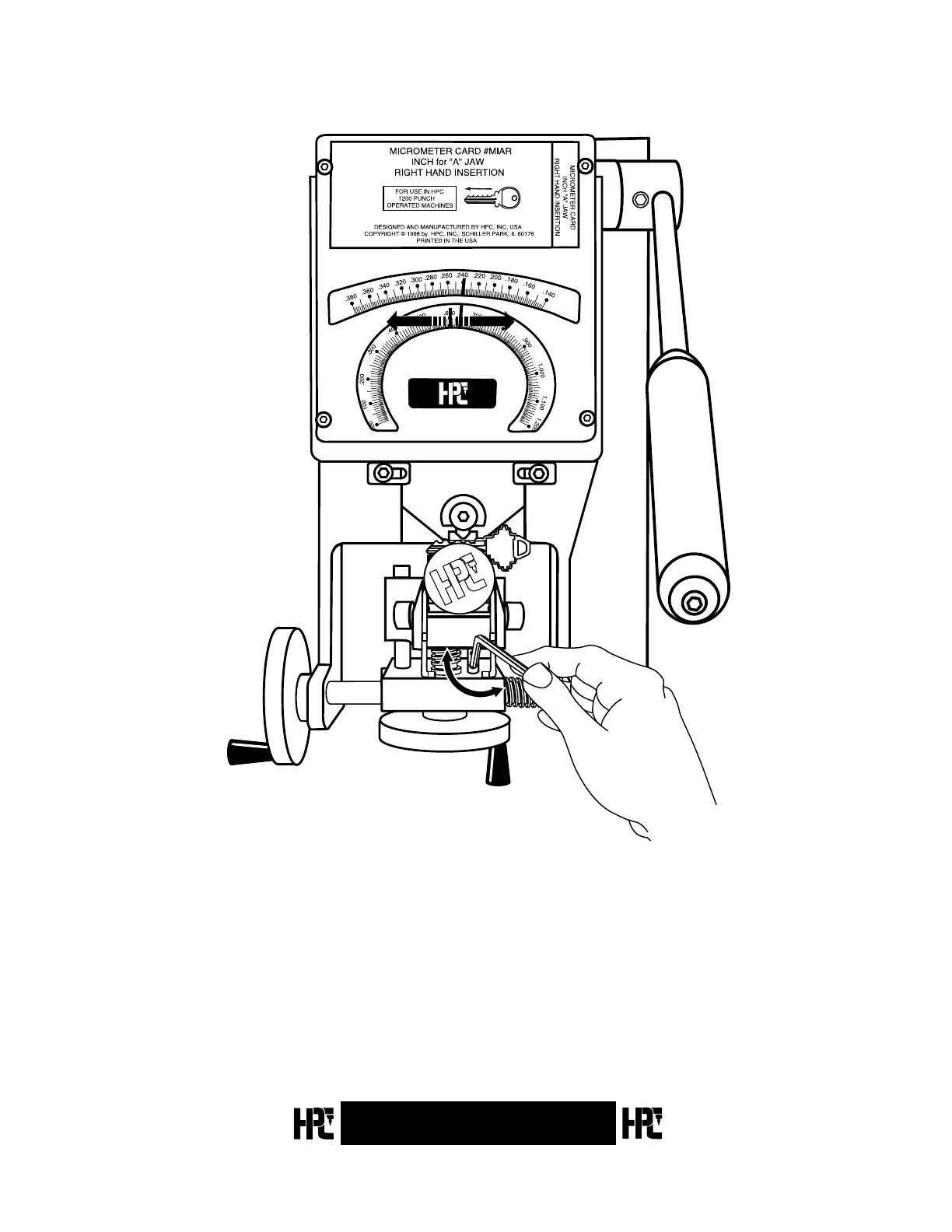

Fig. 7.2.2
1. Insert supplied wrench into the Space Adjustment Hole.
No. 1200PCH
