Large Form Factor D36x0 disk enclosures — maximum capacity
configuration

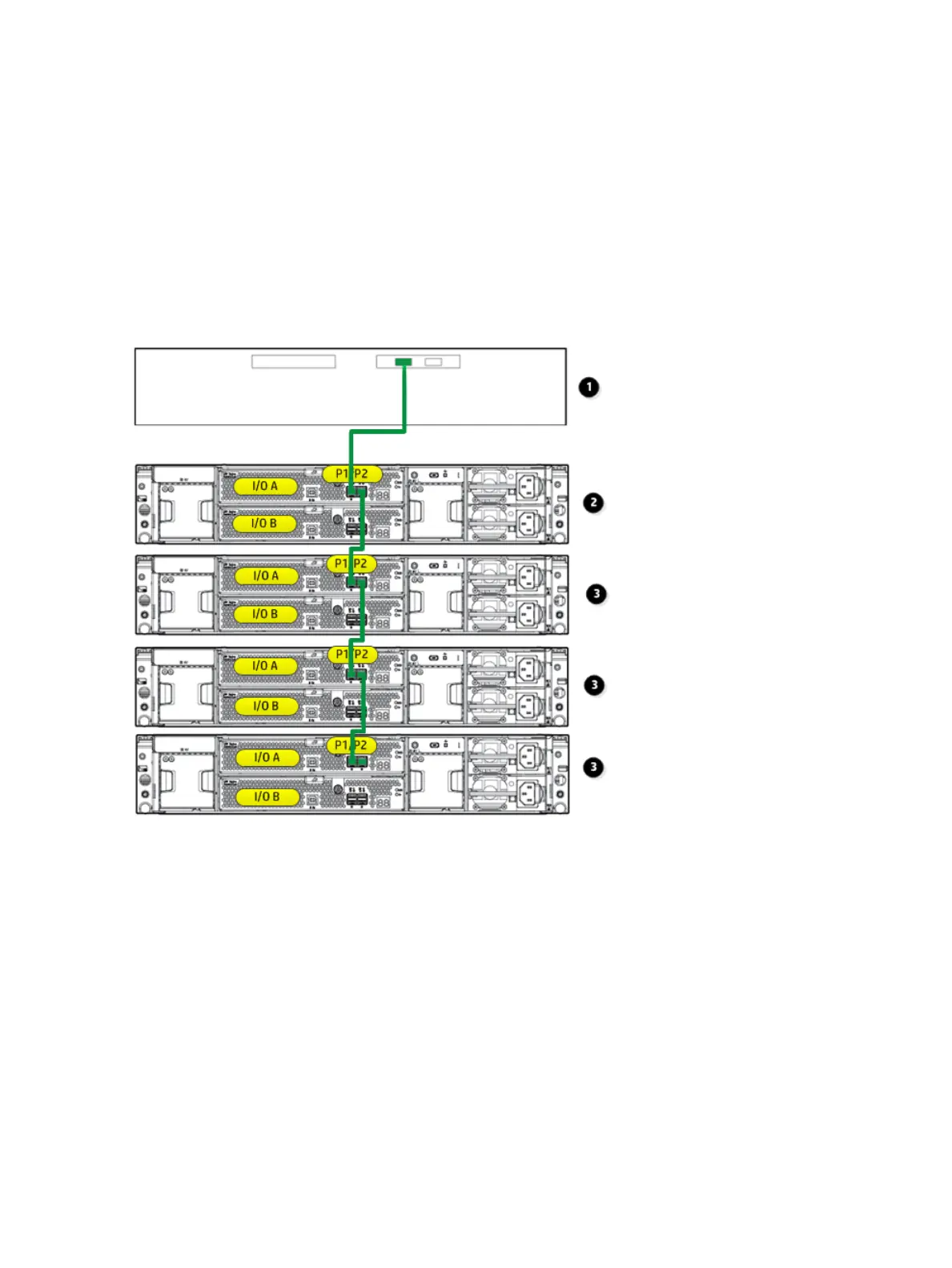

This example illustrates cabling for a single-domain configuration. In this configuration, note the
following:
• P1 on the disk enclosure I/O module is treated as the SAS “in” port.
• P2 on the disk enclosure I/O module is treated as the SAS “out” port.
• In single-domain configurations, one cable path is created between the host, the primary
disk enclosure, and additional cascaded disk enclosures. (Shown)
• In dual-domain configurations, two cable paths are created between the host, the primary
disk enclosure, and additional cascaded disk enclosures.
1. Host (server or controller enclosure)
2. Primary disk enclosure
3. Additional cascaded disk enclosures
44 Cabling examples
