Shenzhen Hpmont Technology Co., Ltd Chapter 3 Mechanical Installation
HD30 Series Inverters User Manual ―15―
Structure
size
Model
Dimension (mm) Mounting size (mm)
GW
(kg)
Figure
W H D W1 H1 H2 d
Frame 10
HD30-4T315G/355P
970 1316 380 520 1286 1250 14 190 Figure 3 HD30-4T355G/400P
HD30-4T400G/450P

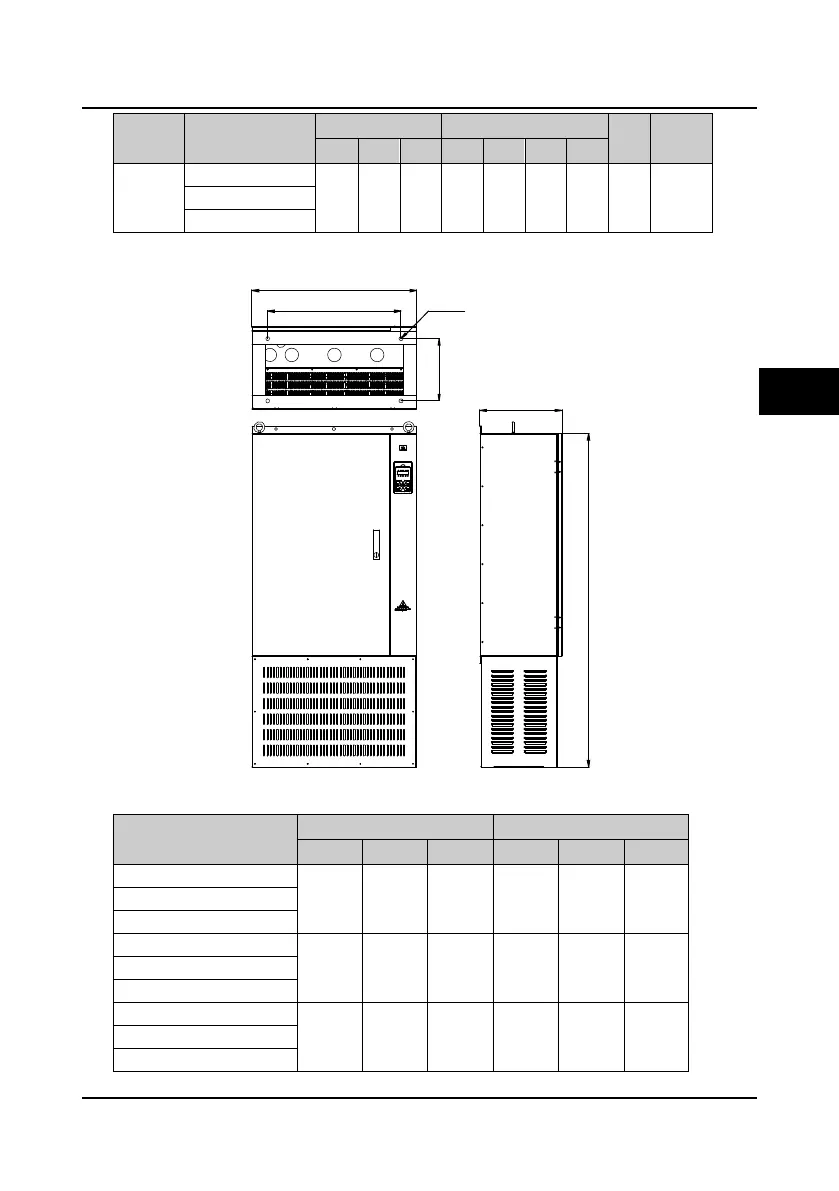

HD30 series cabinet appearance is shown as Figure 3-3 and the dimension is as Table 3-3.
Figure 3-3 HD30 series cabinet dimension figure
Table 3-3 HD30 series cabinet dimension
Model
Dimension (mm) Mounting size (mm)
W H D W1 D1 d
HD30-4T132G/160P-C
620 1250 360 500 270 18
HD30-4T160G/200P-C
HD30-4T200G/220P-C
HD30-4T220G/250P-C
740 1500 370 600 280 18
HD30-4T250G/280P-C
HD30-4T280G/315P-C
HD30-4T315G/355P-C
970 1650 380 700 280 18
HD30-4T355G/400P-C
HD30-4T400G/450P-C
D1
W1
W
H
D
4-Ød
3
