Chapter 6 Function Introduction Shenzhen Hpmont Technology Co., Ltd
―100― HD30 Series Inverters User Manual
No. Name Description Range
factory setting
F15.30 FDT1 detection mode 0,1
0
0: Detect according to the reference frequency.
1: Detect according to the output frequency.
F15.31 FDT1 level 0.00
upper limit
50.00Hz

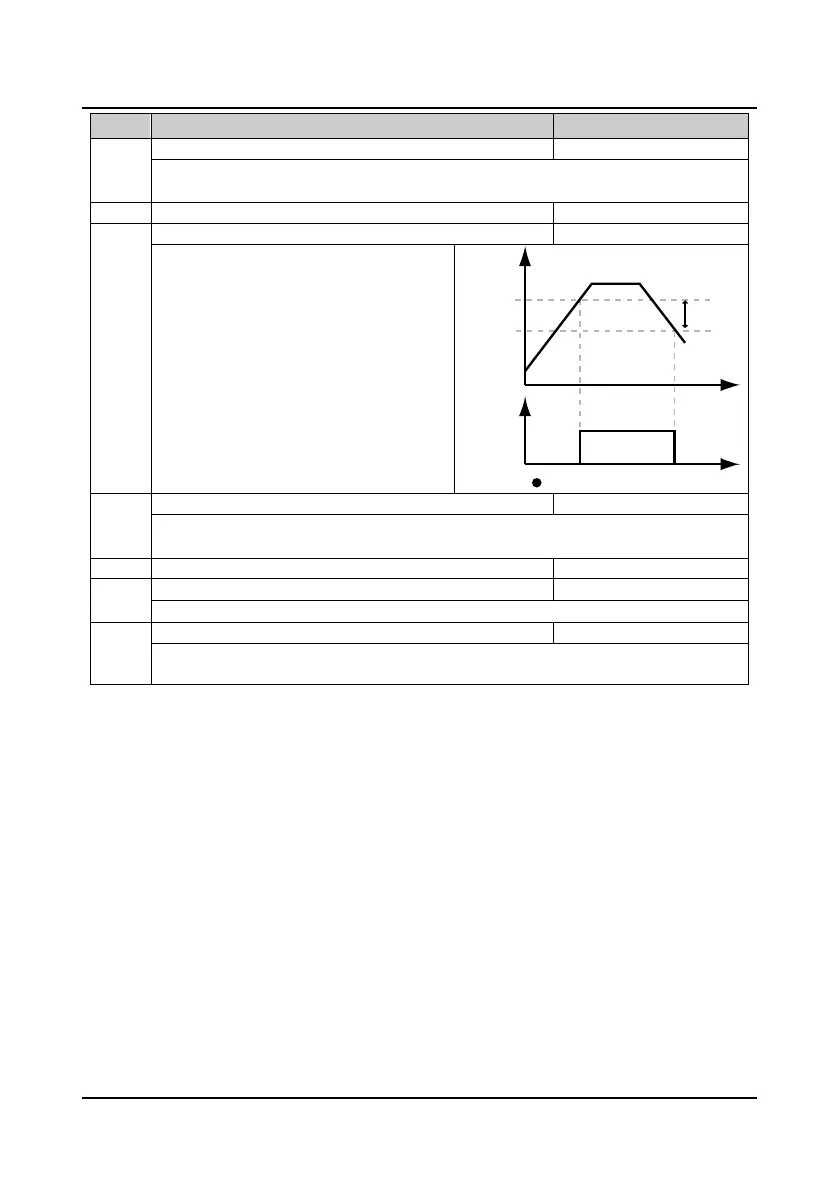

The indicating signal can be output if the setting
frequency F15.30 is higher than certain frequency
(F15.31), and becomes disabled when the setting
frequency is lower than certain frequency of FDT1
level (F15.31 - F15.32). Please refer to FL of the
right figure.
0: Detect according to the reference frequency.
1: Detect according to the output frequency.
0.00－upper limit【50.00Hz】
F15.35 FDT2 lag 0.00
upper limit
1.00Hz
Refer to parameters F15.31 and F15.32.
F15.36 Preset operating time 0
65535
0h
When the total operating time reaches the preset operating time (F15.36), the inverter will output an
indicating signal (500ms).
Output frequency
F15.32
F15.31
FL
DO
FL = F15.31 - F15.32
Time
Time
