No. Name Description Range
factory setting
F06.16 Simple PLC operation mode selection 0000
1122
0000
There are 4 parameter settings: units (0－2), tens (0－2), hundreds (0,1), thousands (0,1).

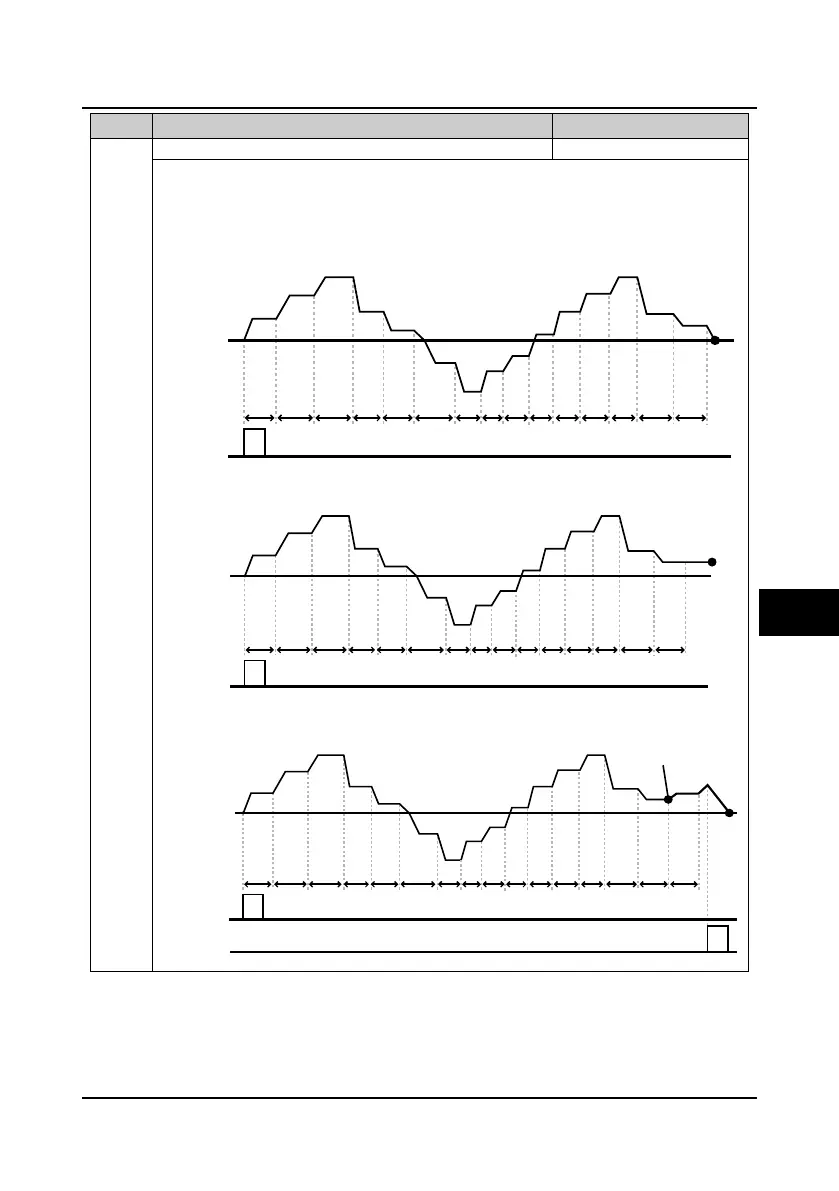

Units: PLC operation mode selection (taking 15-step PLC for example)
• 0: Stop after single cycle operation. The inverter stops automatically after one operating cycle. It
will start only after receiving the run command next time.
• 1: Maintain the final value after single cycle of PLC operation. The inverter will maintain the run
frequency and direction of the last step after completing one operating cycle.
• 2: Cycle operation. The inverter will operate with a new cycle from Step 1 automatically after
completing one operating cycle until receiving the stop command.
f15
f14
f13
f12
f11
f10
f2
f1
f4
f3
f6
f5
f8
f7
f9
T15T10T1 T2 T3 T4 T5 T6 T7 T8 T9 T11 T12 T13 T14
Run command
Stop
f15
f14
f13
f12
f11
f10
f2
f1
f4
f3
f6
f5
f8
f7
f9
T15T10T1 T2 T3 T4 T5 T6 T7 T8 T9 T11 T12 T13 T14
Maintaining
Run command
f15
f14
f13
f12
f11
f10
f2
f1
f4
f3
f6
f5
f8
f7
f9
T15T10T1 T2 T3 T4 T5 T6 T7 T8 T9 T11 T12 T13 T14
f1
T1
Operating with a new cycle
automatically
Run command
Stop command
Stop
6
To Next Page
