HPRT LPQ58 User Manual

LPQ58/80 User Manual
Rev 1.0 www.hprt.com
6
Chapter 3 Operation Methods

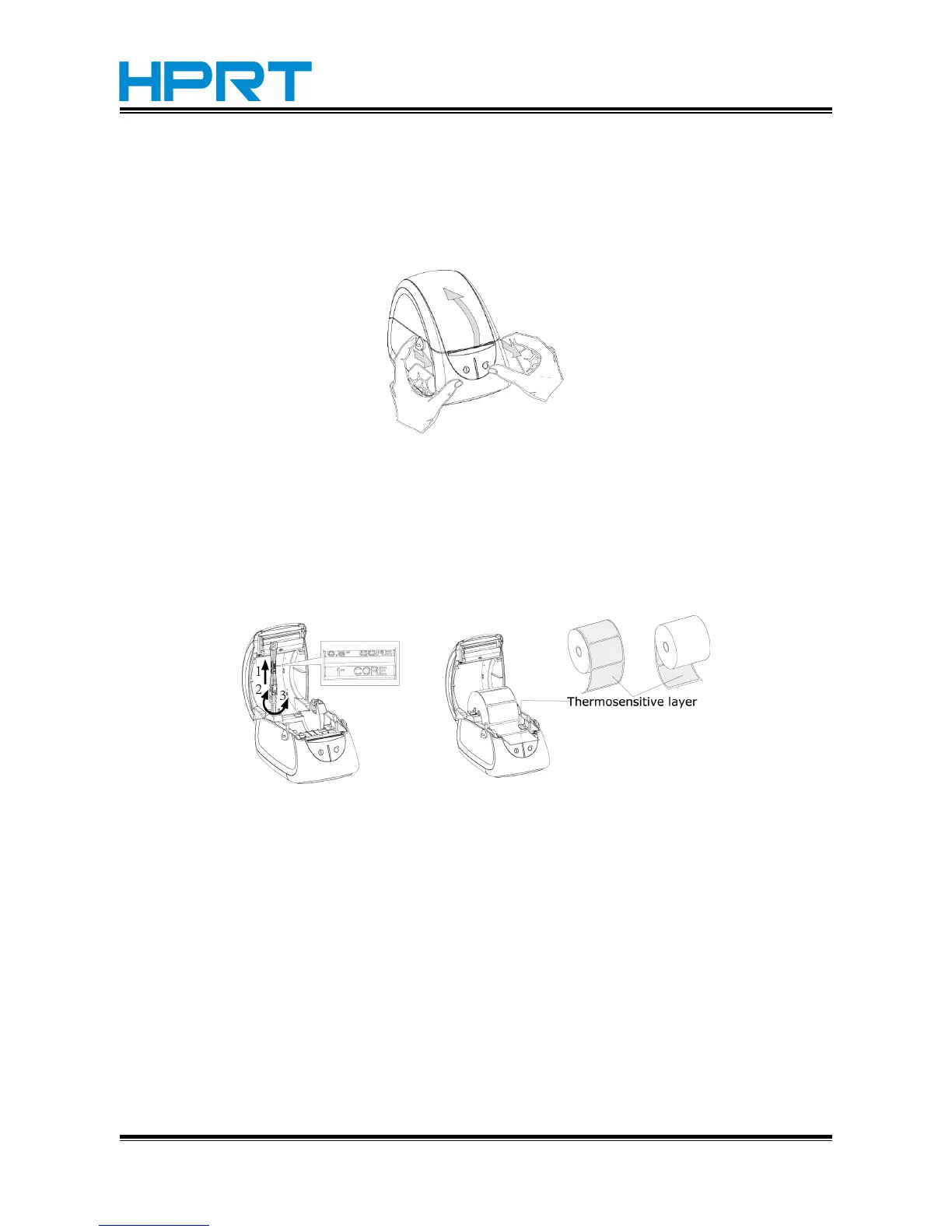

3.1 Paper Installation
1.Pull the cover open lever towards you and lift the cover.
2.Firstly,pull up the paper roll shaft.Then adjust the shaft according to the internal diameter of
paper roll(There is detailed illustration which is about internal diameter of paper roll on the
shaft).Next,install the paper roll and fix the shaft.
Figure 3-2
3.Pull out some paper roll,then open the paper guides to the max width and pass the paper through
the paper guides.Next,adjust the paper guides to the paper width.
Figure 3-1

HPRT LPQ58 Specifications

General

Brand	HPRT
Model	LPQ58
Category	Label Maker
Language	English
