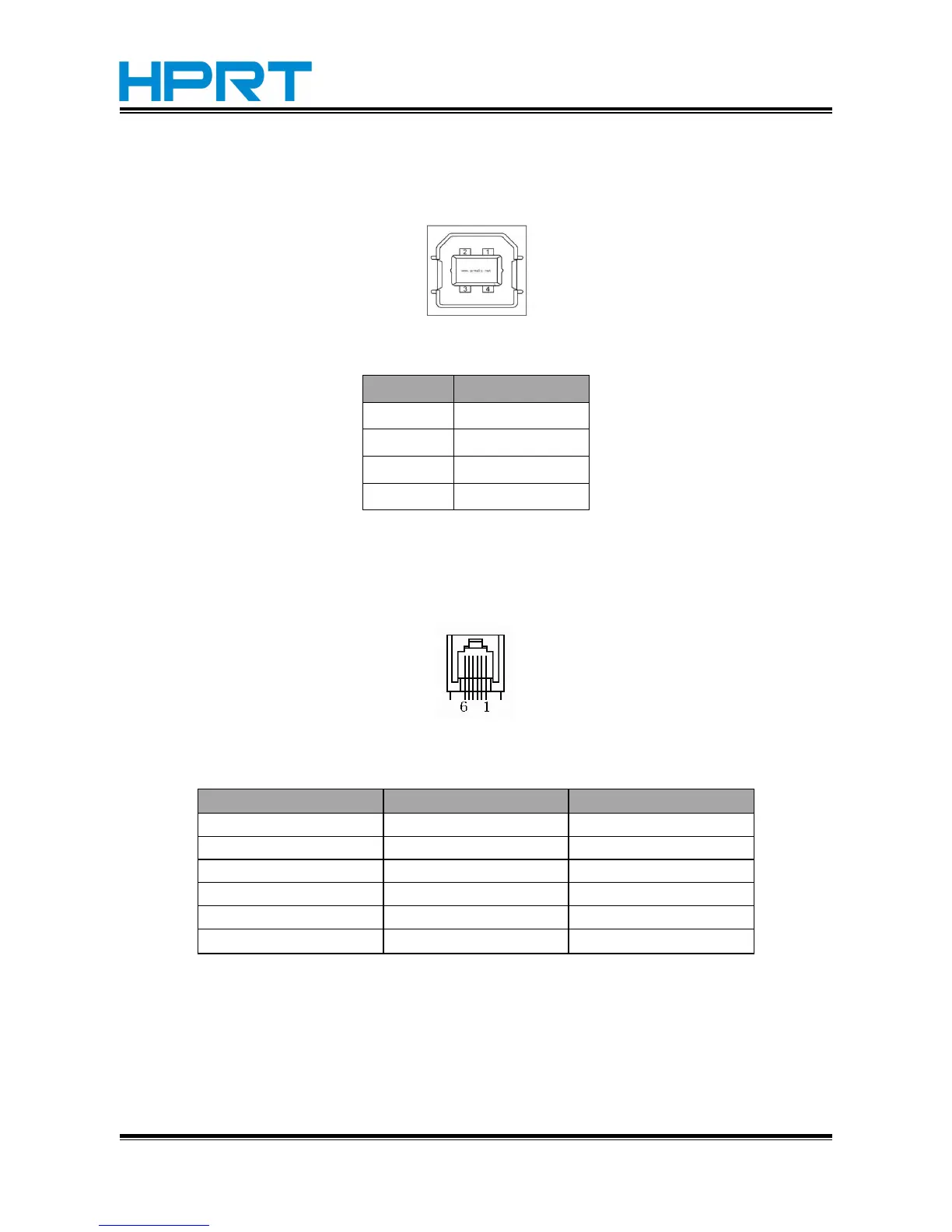

Chapter 4 Interface
4.1 USB interface
Figure 4-1
PIN No. Signal name
1
VBUS
2
D-
3
D+
4
GND
4.2 Cash drawer interface
Figure 4-2
Pin No.
Signal
Function
1
FG
Frame Ground
2
DRAWER 1
Drawer kick-out drive
3
DRSW
Drawer open/close signal
4
VDR
Drawer driving source
5
DRAWER 2
Drawer kick-out drive
6
GND
GND
