8-87 Periodic Maintenance and Adjustment

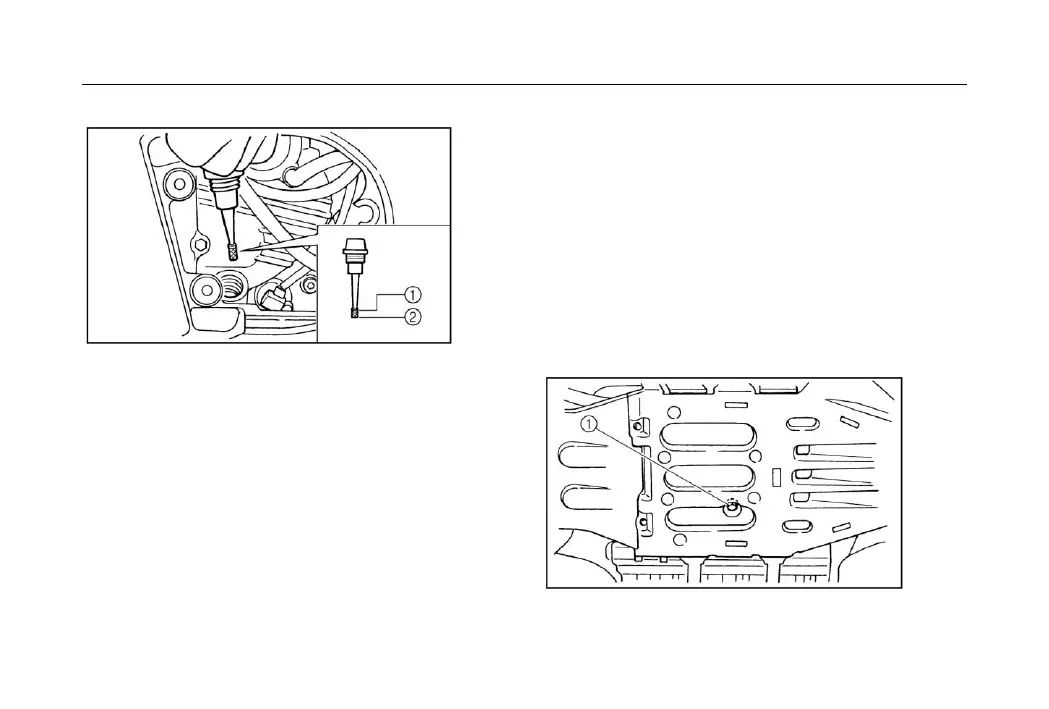

1. Maximum level mark 2. Minimum level mark
6. If the engine oil is at or below the
minimum level mark, add sufficient oil of
the recommended type to raise it to the
correct level.
7. Insert the dipstick into the oil filler hole,
and then tighten the oil filler cap.
To change the engine oil (with or
without oil filter cartridge replacement)
1. Start the engine, warm it up for several
minutes, and then turn it off.
2. Place an oil pan under the engine to
collect the used oil, and then remove the
engine oil filler cap.
3. Remove the engine oil drain bolt to
drain the oil from the crankcase.
1. Engine oil drain bolt
