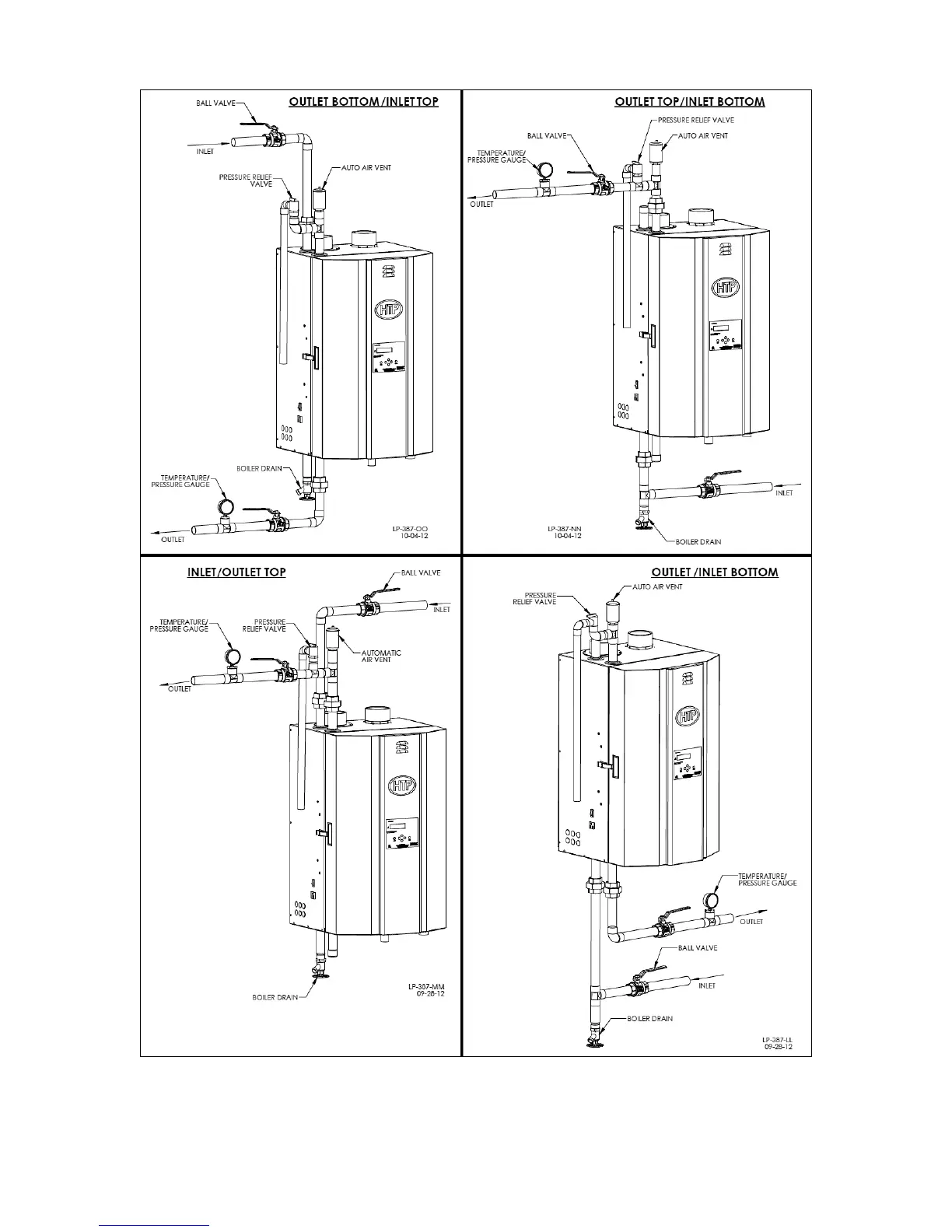

Figure 7 – Near Boiler Piping* – NOTE: This drawing is meant to show system piping concept only. Installer is responsible for all
equipment and detailing required by local codes. *Top / Bottom Supply / Return Connections available on EFT-155, EFT-199, EFT-285, and
EFT-399 Models ONLY
NOTE: In piping applications utilizing a single zone, it is recommended that the installer use flow / check valves with weighted seats at
or near the boiler to prevent gravity circulation.
