HTP EFT-155 - Page 83

83
LP-387 REV. 12.15.14
EFT-55 / 80 / 110 PARTS BREAKDOWN

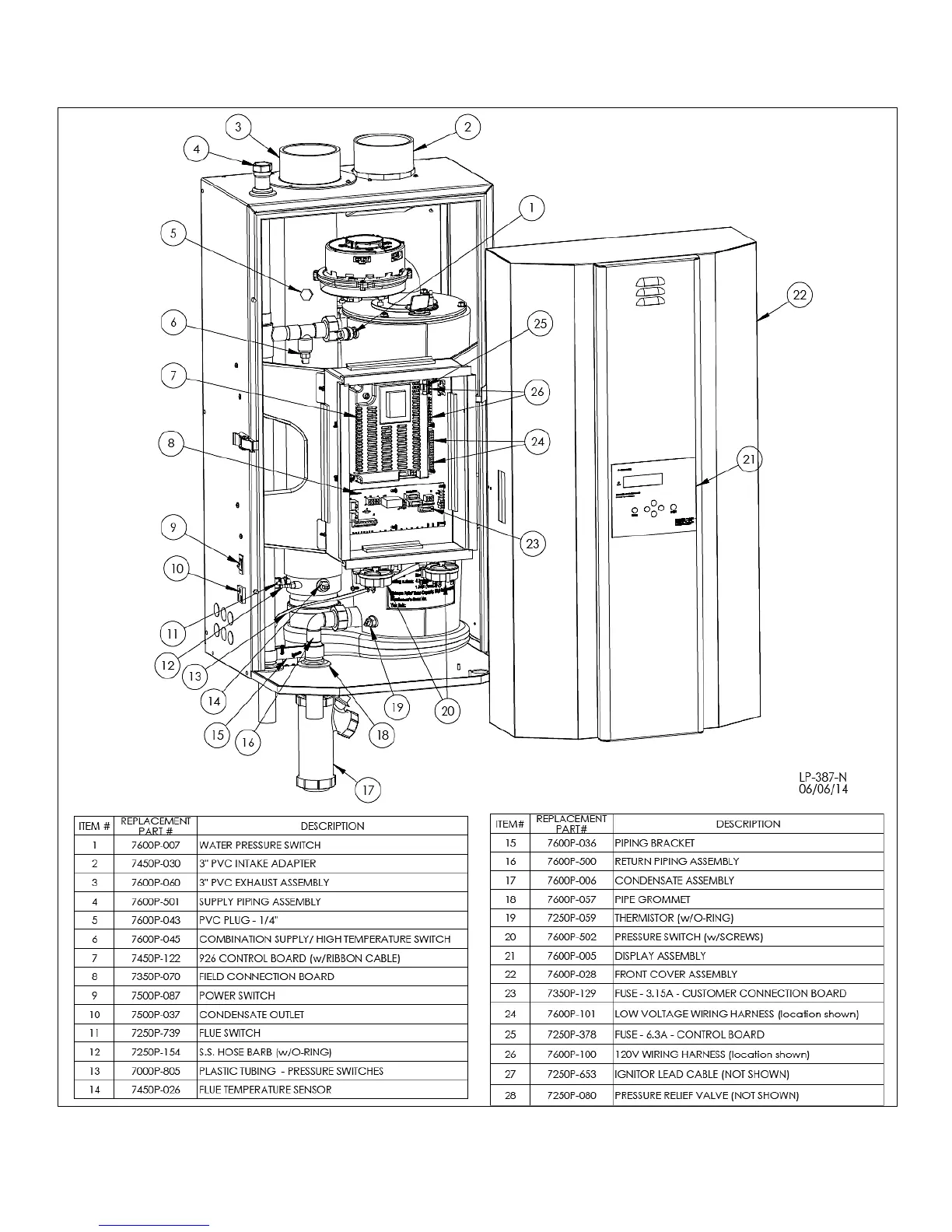

Figure 37 – Replacement Parts - *#20 – Switch on the Left is the Blocked Flue Pressure Switch, Switch on the Right is the
Blocked Condensate Pressure Switch – Both share same Part Number
