HTP EFT-155 - Page 85

85
LP-387 REV. 12.15.14
EFT-155 / 199 / 285 / 399 MODEL PARTS BREAKDOWN

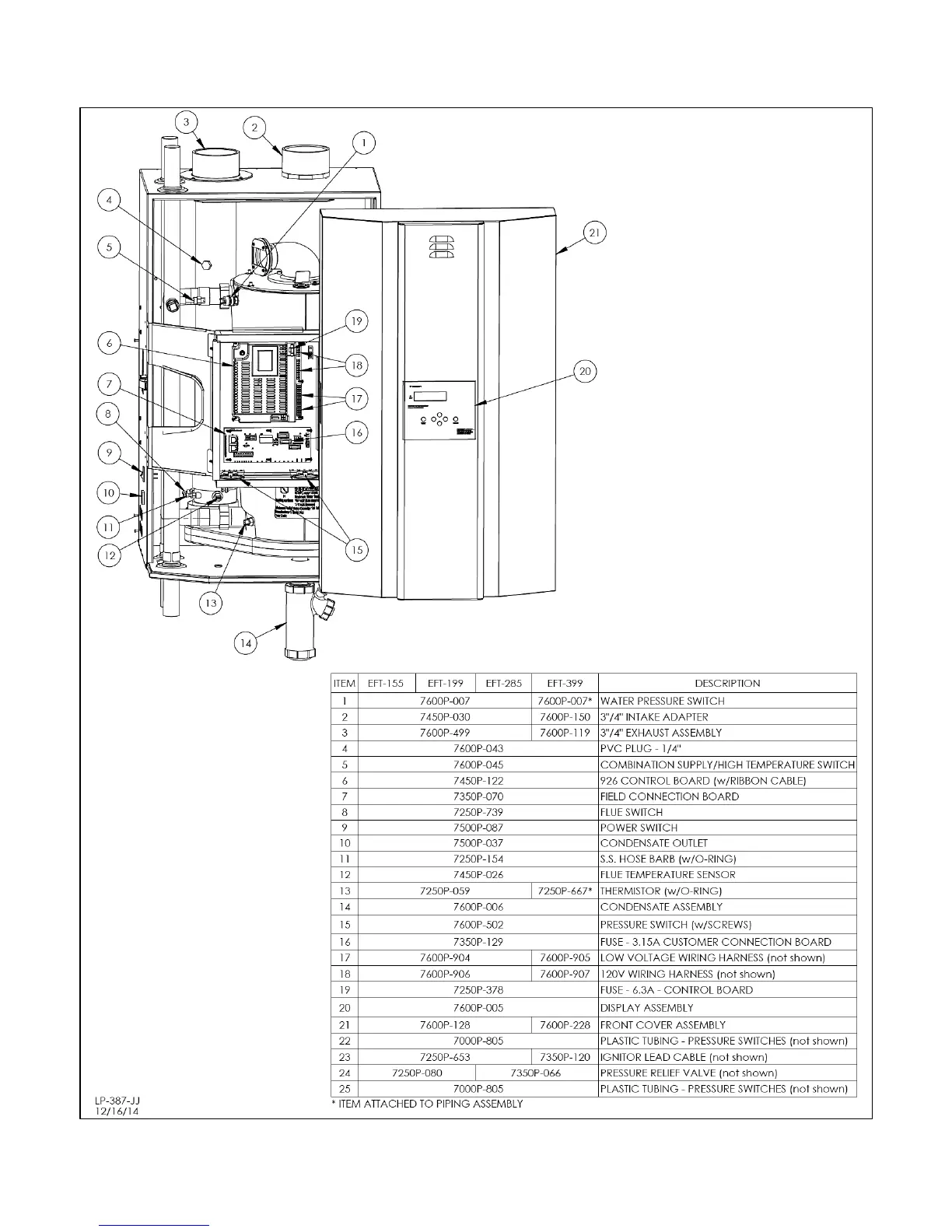

Figure 39 - Replacement Parts - LP-387-JJ – EFT-155 - 399 Models - *#15 – Switch on the Left is the Blocked Flue Pressure
Switch, Switch on the Right is the Blocked Condensate Pressure Switch – Both share same Part Number
