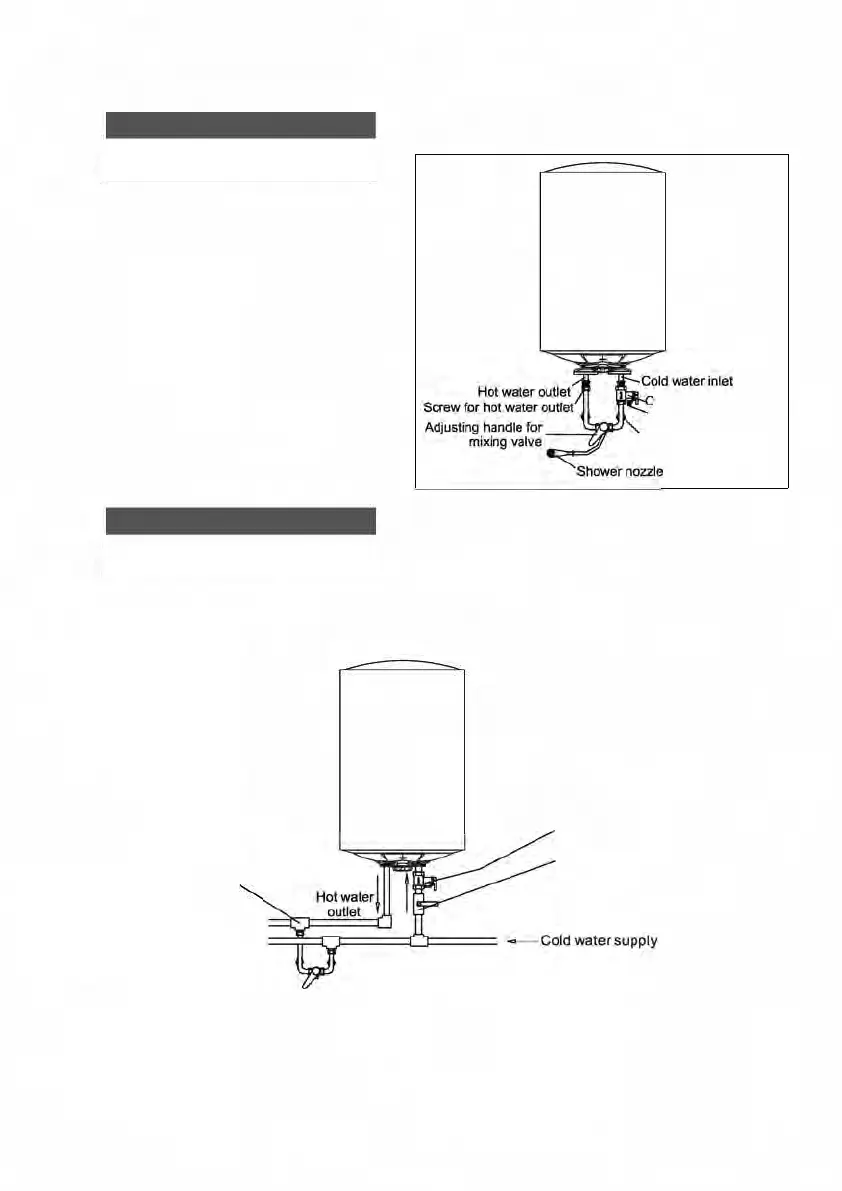

Connection of pipelines
•
The dimension of multifunction valve
and the inlet /outlet pipe is ½"BSP.
•
•
Connection of multifunction valve:
install the multifunction valve with the
heater on the inlet of the water heater.
In order to avoid leakage when
connecting the pipelines, the rubber
seal gaskets provided with the heater
must be added at the end of the threads.
Ensure leak proof joints.
Multi outlet connection
•
lf the users want to install a multi-way supply system, refer to the method shown in Fig.4
for connection of the pipelines.
o
Tee.Joint
One-way safety valve
Water inlet valve
(
Fig.
4
)
