137

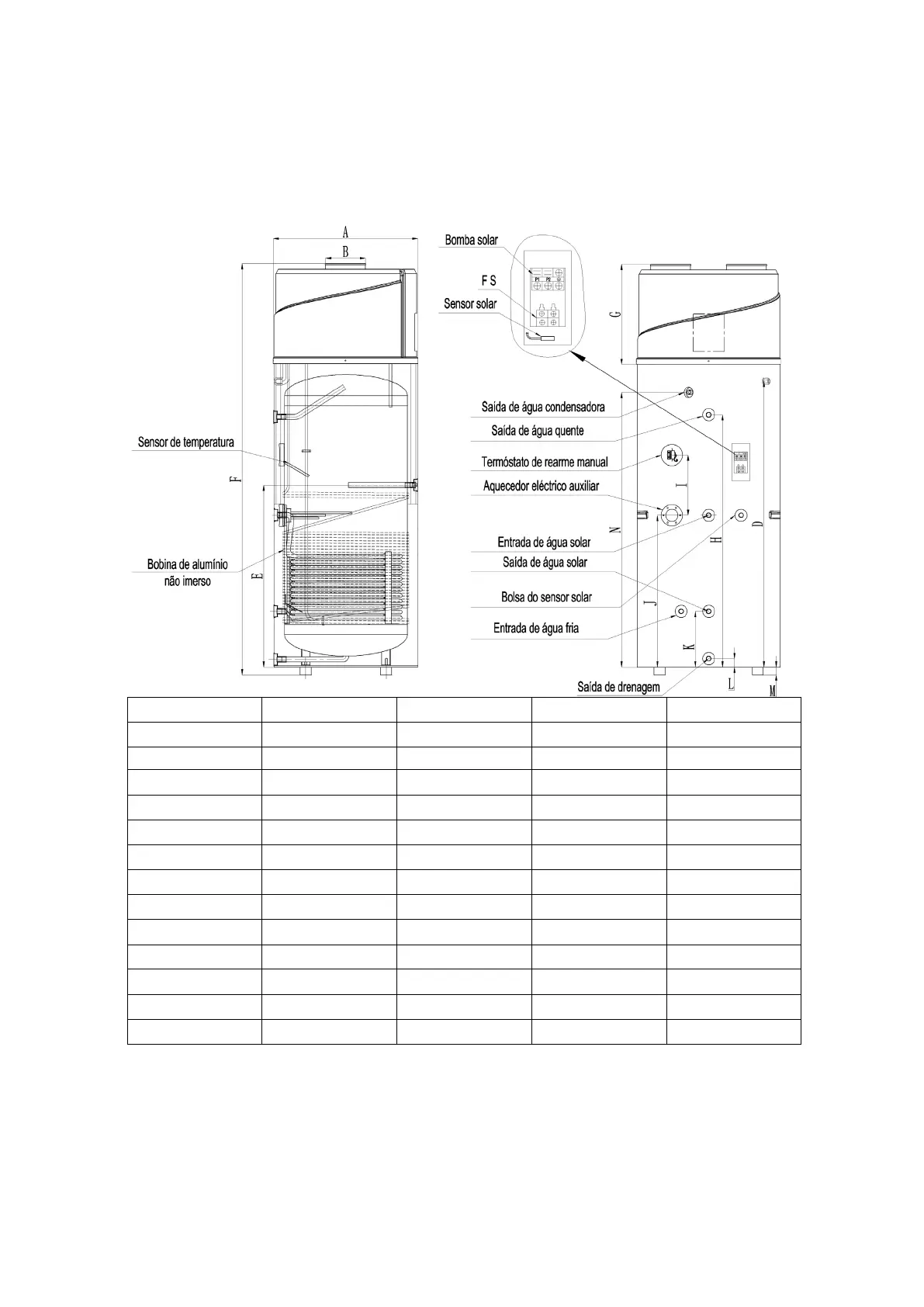

Dimensões
Modelo: HTW-ATS-O-***VAW
150L/150LS
200L/200LS
300L/300LS
500L/500LS
A
Φ
560
Φ
560
Φ640
Φ700
B
Φ
177
Φ
177
Φ177
Φ177
D
946
1185
1280
1680
E
553
875
1040
1420
F
1489
1750
1845
2250
G
450
450
450
450
H
737
1025
1140
1520
I
270
270
270
270
J
457
600
680
893
K
482
250
250
280
L
32.5
32.5
32.5
32.5
M
35
35
35
35
N
847
1135
1230
1633
Observação:
1)
A fonte de calor é opcional.
