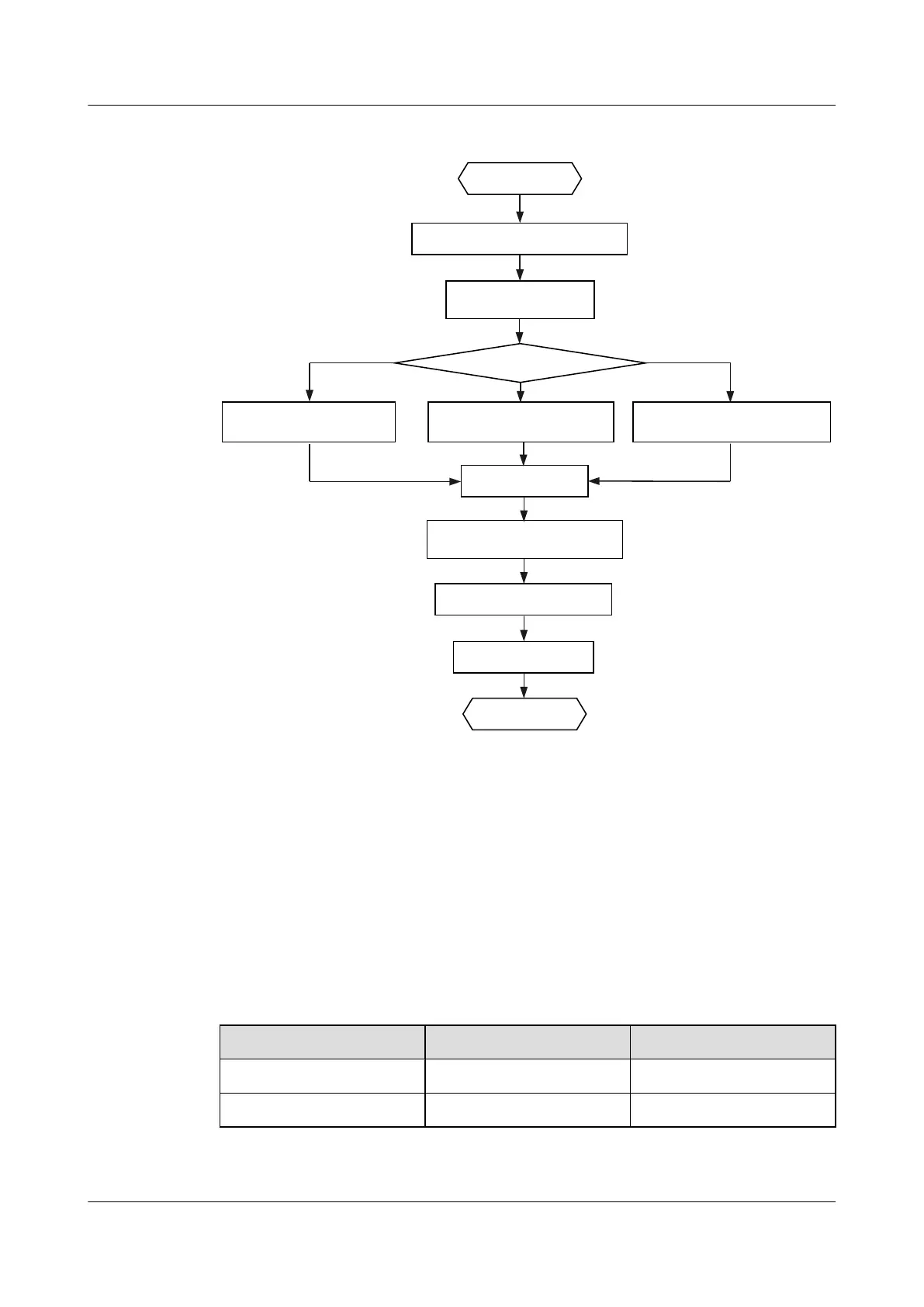

Figure 2-2 Installation flowchart of the AP5030DN and AP5130DN
Connect the cable
Start
Check before installation
Install the AP
Determine the
installation location
Connect the security lock
to the lock hole
Power on the AP
Check after installation
End
Fix the wall-mounting
bracket to a T-rail
Fix the wall-mounting
bracket against the wall
Fix the wall-mounting
bracket against the ceiling
To a T-rail
Against the ceiling
Against the wall
2.3 Unpacking the Equipment
Before unpacking the carton, ensure that the packing carton is intact and not damaged or soaked.
Stop unpacking if the equipment is rusted or soggy. Then, investigate causes and contact the
supplier.
After unpacking, check items in the carton against the packing list. If any item is missing, contact
the supplier or agent.
Usually, the packing carton contains all items listed in the packing list shown in Table 2-2.
Table 2-2 Packing list
No. Item Quantity
1 AP device 1
2 Power adapter (optional) 1
Huawei AP3x10xN&5x10xN&5x30xN&6x10xN&7x10xN
Hardware Installation and Maintenance Guide 2 AP Installation
Issue 11 (2015-05-18) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
17
