Product Model Appearance
AP7110DN-AGN
1 5 6 24
Console ETH/PoE Default DC 12V
AP7110SN-GN
Console ETH/PoE DC 12VDefault
4 5 6 2

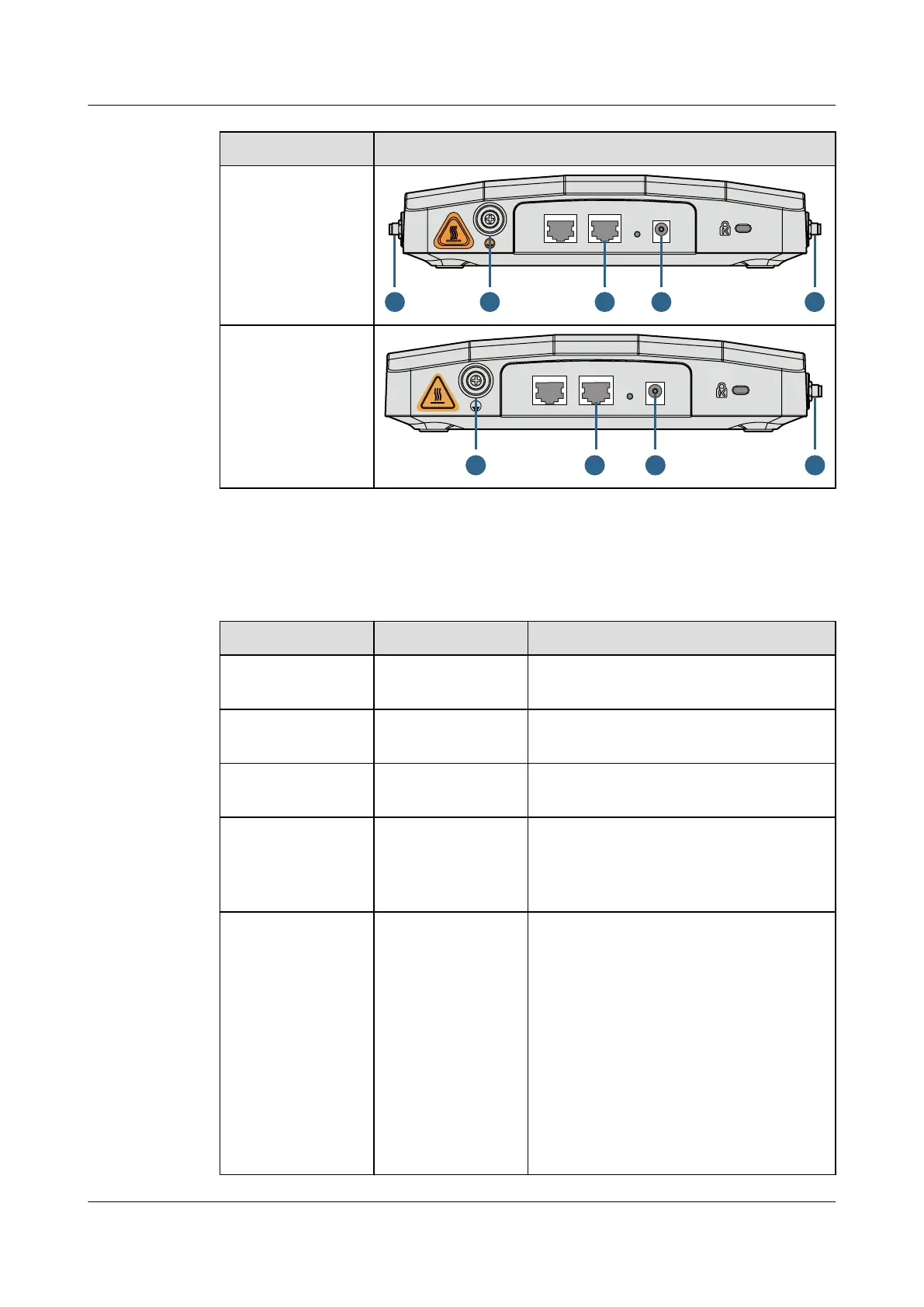

Table 2-4 describes cable connections of indoor APs.
Table 2-4 Cable connections of indoor APs
No. Cable Description
1 5 GHz antenna cable Connects a 5 GHz antenna to the AP to send
and receive service signals.
2 2.4 GHz antenna
cable
Connects a 2.4 GHz antenna to the AP to send
and receive service signals.
3 Dual-band antenna Connects a dual-band antenna to the AP to
send and receive service signals.
4 Ground cable Grounds the AP. The M4 connector of the
ground cable is connected to the AP and the
M6 connector is connected to the protection
ground.
5 Network cable
l The network cables used are category-5
enhanced or higher twisted pairs.
l Ensure that the AP is connected to the
Ethernet using the Ethernet cable that
works properly. If the Ethernet cable is not
working properly, for example, RJ45
connectors are short-circuited, the AP
may fail to be powered on or fail to work.
Before connecting an Ethernet cable to the
AP, use the cable test tool to check
whether the cable is qualified. If the cable
is unqualified, replace it.
Huawei AP3x10xN&5x10xN&5x30xN&6x10xN&7x10xN
Hardware Installation and Maintenance Guide 2 AP Installation
Issue 11 (2015-05-18) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
27
